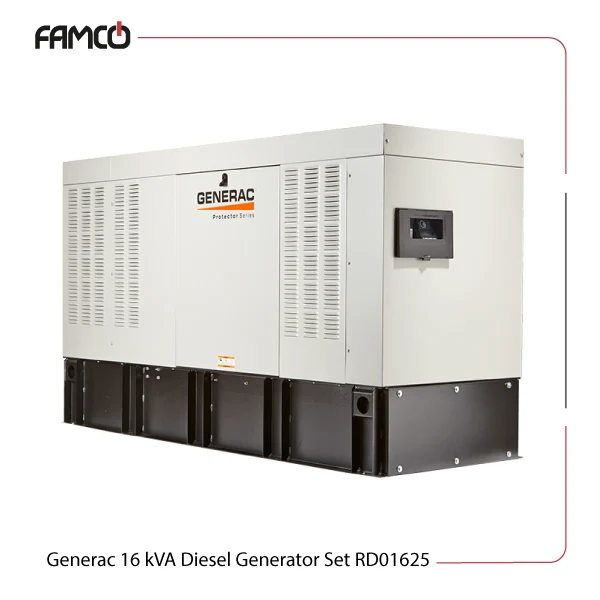

Generac 16 kVA Diesel Generator Set RD01625 Specifications
This generator features a 16 kVA standby power capacity and 12.8 kVA prime power, suitable for various backup and continuous power needs. It operates at a frequency of 50 Hz and is equipped with a Mitsubishi engine that has four cylinders and a displacement of 2.505 liters. The engine’s intake system is naturally aspirated and has an aluminum piston with a gear-type lubrication oil pump. This Generac diesel generator’s stator insulation class is H, maximizing its dependability. The generator is housed in an aluminum enclosure, a material both lightweight and corrosion-resistant. It runs on diesel (with minimum sulfur content), thanks to its large 170.3-liter fuel tank. The coolant system has a capacity of 11.4 liters, supporting high ambient temperatures up to 50°C. It consumes approximately 3.9 liters of fuel per hour at half load and 7.46 liters at full load, requiring fewer refueling sessions. The generator weighs 622 kg and measures 158 mm in length, 78 mm in width, and 124 mm in height. It offers a run time of about 38.8 hours at half load. Noise levels are relatively low, with sound output at 65 dB(A) in exercise mode and 70 dB(A) during normal operation at 7 meters distance, suitable for environments where noise control is important.
| Specification | Value |
| Standby Power Capacity (kVA) | 16 |
| Prime Power (kVA) | 12.8 |
| Frequency (Hz) | 50 |
| Stator Insulation Class | H |
| Phase | Single-phase |
| Enclosure | Aluminum |
| Engine Make | Mitsubishi |
| Number of Cylinders | 4 |
| Displacement (l) | 2.505 |
| Stroke (mm) | 103 |
| Intake Air System | Naturally aspirated |
| Piston Type | Aluminum |
| Engine Lubrication Oil Pump Type | Gear |
| System Coolant Capacity (l) | 11.4 |
| Maximum Ambient Temperature (°C) | 50 |
| Sound Output at 7m (Exercise Mode) (dB(A)) | 65 |
| Sound Output at 7m (Normal Mode) (dB(A)) | 70 |
Generac 16 kVA Diesel Generator Set RD01625 Fuel Data
| Fuel Consumption at 50% Load (l/hr) | 3.9 |
| Fuel Consumption at Full Load (l/hr) | 7.46 |
| Fuel Type | Ultra low sulfur diesel |
| Total Fuel Tank Capacity (l) | 170.3 |
| Run Time at 1/2 Load (hr) | 38.8 |
Generac 16 kVA Diesel Generator Set RD01625 Dimensions and Weight
| Weight (kg) | 622 |
| Dimensions (mm) L*W*H | 158*78*124 |
Generac 16 kVA Diesel Generator Set RD01625 Applications
- Emergency backup power for buildings
- Construction site power supply
- Event and outdoor activities
- Industrial machinery operation
Generac 16 kVA Diesel Generator Set RD01625 Benefits
- Long runtime with a large fuel tank
- Durable aluminum enclosure for corrosion resistance
- Efficient fuel consumption at various loads
- Low noise levels for quiet operation
Generac 16 kVA Diesel Generator Set RD01625 Price List
| No. | Name | Price |
| 1 | Generac 16 kVA Diesel Generator Set RD01625 Price | Contact us |
