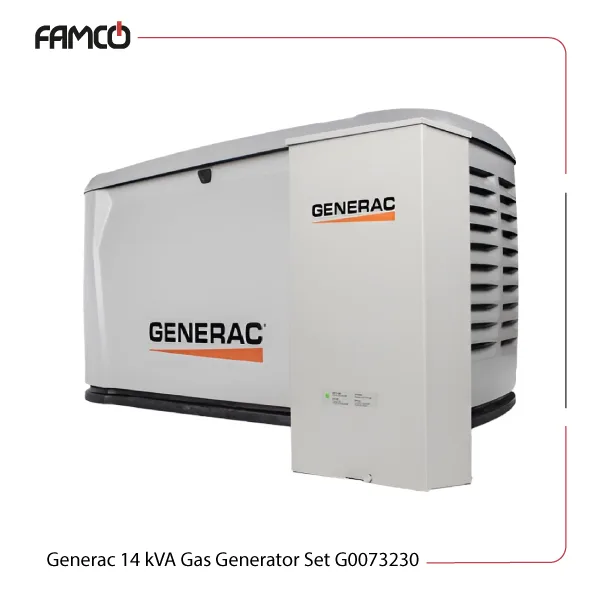

Generac 14 kVA Gas Generator Set G0073230 Specifications
This generator features a 14 kVA standby power rating, suitable for various backup power needs. It operates at a frequency of 60 Hz and provides a steady 240V output in a single-phase setup. The engine is part of the GENERAC G-Force 800 series, featuring two cylinders and a displacement of 817 cc, which ensures reliable performance. It features a solid-state ignition system and a transfer switch, operating at 3600 RPM, optimized for maximum efficiency. The gas generator weighs 177 kg, with dimensions of 117.9 cm in length, 66.8 cm in width, and 77.9 cm in height, making it relatively compact for its power capacity. Noise levels are kept low, with 65 dB(A) at 7 meters during normal operation and 55 dB(A) in quiet mode, ideal for noise-sensitive environments. Fuel consumption in this Generac gas generator set varies depending on the fuel type and load, with natural gas consumption at full load being 6.89 m³/h and at half load 5.35 m³/h. For liquid propane, the full load consumption is 11.03 m³/h, and half load is 6.66 m³/h, making it versatile for different fuel sources. The generator’s design embodies durability and efficiency, making it suitable for residential, commercial, or industrial backup power solutions, with a focus on quiet operation and fuel economy.
| Specification | Value | ||
| Standby Power Rating (kVA) | 14 | ||
| Frequency (Hz) | 60 | ||
| Rated Maximum Continuous Power Capacity (LP, NG) | 14 | ||
| Rated Voltage (V) | 240 | ||
| Phase | Single-phase | ||
| Number of Rotor Poles | 2 | ||
| Power Factor | 1 | ||
| Sound Output at 7 meters (dB(A)) Normal Load | 65 | ||
| Sound Output at 7 meters (dB(A)) Quiet Mode | 55 | ||
| Engine Type | GENERAC G-Force 800 series | ||
| Number of Cylinders | 2 | ||
| Displacement (cc) | 817 | ||
| Ignition System | Solid-state | ||
| Operating RPM | 3600 | ||
| Fuel Consumption (m³/h) | Natural Gas | Full Load | 6.89 |
| Half Load | 5.35 | ||
| Liquid Propane | Full Load | 11.03 | |
| Half Load | 6.66 | ||

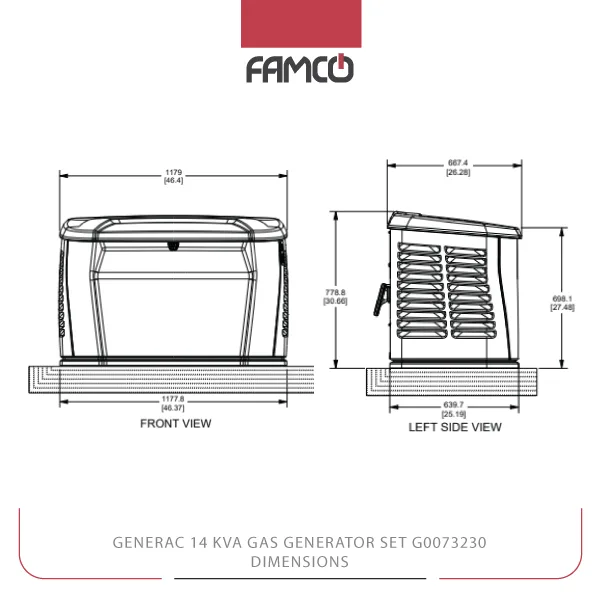

Generac 14 kVA Gas Generator Set G0073230 Dimensions and Weight
| Unit Weight (kg) | 177 |
| Dimensions (cm) L*W*H | 117.9*66.8*77.9 |
Generac 14 kVA Gas Generator Set G0073230 Applications
- Home backup power during outages
- Commercial emergency power supply
- Industrial standby power solutions
- Remote location power generation
Generac 14 kVA Gas Generator Set G0073230 Benefits
- Low noise levels for quiet operation
- Flexible fuel options (natural gas and propane)
- Compact and portable design
- High reliability with durable engine
Generac 14 kVA Gas Generator Set G0073230 Price List
| No. | Name | Price |
| 1 | Generac 14 kVA Gas Generator Set G0073230 Price | Contact us |
