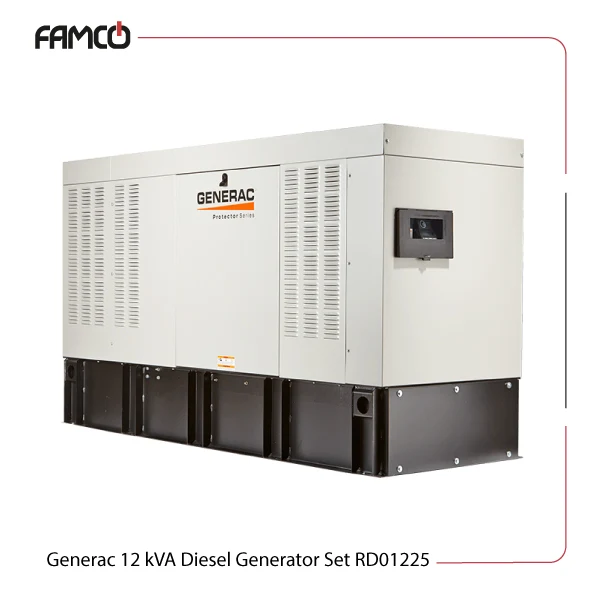

Generac 12 kVA Diesel Generator Set RD01225 Specifications
This generator features a 12 kVA standby power capacity and a 9.6 kVA prime power output, suitable for various backup and continuous power needs. It operates at a frequency of 50 Hz and uses a synchronous type system with high insulation classes (H) for both rotor and stator. The voltage is 110-220 V, designed for reliable operation in different environments. This Generac diesel generator can handle an operating temperature rise of 120°C and is built to withstand ambient temperatures up to 50°C. The dg set’s enclosure is specially designed for silent operation, making it ideal for noise-sensitive locations. Powered by a Mitsubishi in-line engine with four cylinders, the engine has a displacement of 2.505 liters and a stroke of 103 mm. The piston is made of aluminum, and the intake air system is naturally aspirated, providing efficient air intake. Lubrication is managed with gear oil, and the oil filter is a full-flow spin-on canister with easy maintenance. This Generac genset runs on ultra-low sulfur diesel, with a fuel tank capacity of 170.3 liters, with a runtime of approximately 38.1 hours at half load. Fuel consumption is about 3.22 liters per hour at 50% load and 5.53 liters per hour at full load. The coolant system holds 11.4 liters, so optimal engine temperatures are consistently managed. Its dimensions are 158 cm in length, 78 cm in width, and 124 cm in height, with a weight of 622 kg. Noise levels are kept low, with sound output at 65 dB(A) at 7 meters during exercise mode and 70 dB(A) during normal operation.
| Specification | Value |
| Standby Power Capacity (kVA) | 12 |
| Prime Power (kVA) | 9.6 |
| Frequency (Hz) | 50 |
| Type | synchronous |
| Rotor Insulation Class | H |
| Stator Insulation Class | H |
| Voltage (V) | 110 – 220 |
| Operating Temperature Rise | 120 °C |
| Max. Ambient Temperature | 50°C |
| Canopy Enclosure | equipped for silent operation |
| Engine Make | Mitsubishi |
| Engine Model | in-line |
| Number of Cylinders | 4 |
| Engine Displacement (L) | 2.505 |
| Stroke (mm) | 103 |
| Piston Type | aluminum |
| Intake Air System | naturally aspirated |
| Lubrication Oil Type | gear |
| Oil Filter Type | full flow spin-on canister |
| System Coolant Capacity (L) | 11.4 |
Generac 12 kVA Diesel Generator Set RD01225 Fuel Data
| Fuel | ultra low sulfur diesel |
| Fuel Tank Capacity (L) | 170.3 |
| Run Time at 1/2 Load (hr) | 38.1 |
| Fuel Consumption at 50% Load (L/h) | 3.22 |
| Fuel Consumption at Full Load (L/h) | 5.53 |
Generac 12 kVA Diesel Generator Set RD01225 Sound Data
| Sound Output at 7m (dB(A)) in Exercise Mode | 65 |
| Sound Output at 7m (dB(A)) | 70 |
Generac 12 kVA Diesel Generator Set RD01225 Dimensions and Weight
| Dimensions (L*W*H) | 158*78*124 |
| Weight (kg) | 622 |
Generac 12 kVA Diesel Generator Set RD01225 Applications
- Emergency backup power for homes and businesses
- Construction sites requiring portable power
- Industrial facilities needing reliable electricity
- Event venues and outdoor activities
Generac 12 kVA Diesel Generator Set RD01225 Benefits
- Quiet operation with sound levels of 65-70 dB(A)
- Long runtime of over 38 hours at half load
- High durability with insulation classes H for rotor and stator
- Efficient fuel consumption with low sulfur diesel
Generac 12 kVA Diesel Generator Set RD01225 Price List
| No. | Name | Price |
| 1 | Generac 12 kVA Diesel Generator Set RD01225 Price | Contact us |
