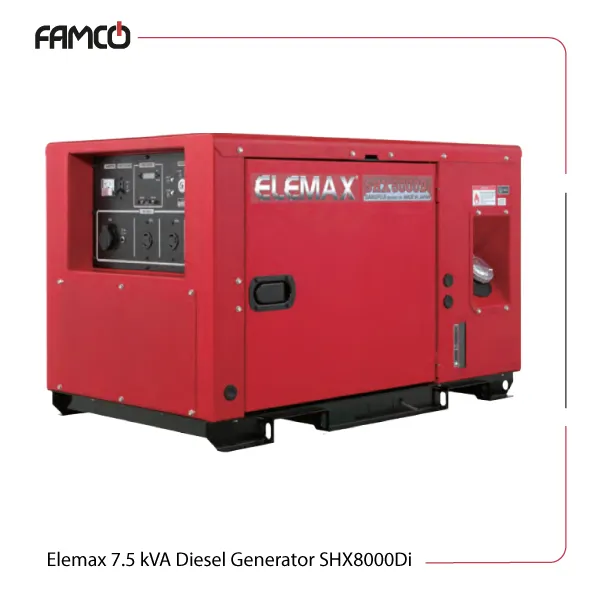

Elemax 7.5 kVA Diesel Generator SHX8000Di Specifications
This generator features a versatile frequency range of 50 and 60 Hz for various regional power standards. It is equipped with a permanent magnet, multi-pole alternator that ensures stable and reliable power output. The generator provides a single-phase voltage of 220V at 50 Hz, with an inverter-based voltage regulation system that maintains consistent voltage levels. Powered by a YANMAR engine with a displacement of 0.570 liters, it operates at variable speeds between 2300 and 3400 rpm, allowing for efficient performance. The engine inside this Elemax generator powered by diesel starts easily with an electric starter and is cooled by a radiator system to prevent overheating during prolonged use. Its compact dimensions are 1080 mm in length, 647 mm in width, and 686 mm in height, with a dry weight of 257 kg. The fuel tank capacity is 32 liters, supporting extended operation with fuel consumption rates of 1.1 L/h at 25% load, 1.6 L/h at 50%, and 3 L/h at full load. Noise levels are relatively low, with sound emissions of 63.5 dB at 25% load, 65.5 dB at 75%, and 67.5 dB at full load measured from 7 meters away. The generator includes a volt meter and an LED display hour meter for monitoring performance. It offers three power outlets compatible with 50 Hz, and an ATS panel for automatic transfer switching, making it suitable for backup power solutions and industrial applications.
| Specification | Value | |
| frequency | 50, 60 Hz | |
| alternator type | permanent magnet, multi-pole alternator | |
| single-phase voltage | 220 V (50 Hz) | |
| voltage regulation system | Inverter | |
| rated power factor | 1 | |
| engine maker | YANMAR | |
| displacement | 0.570 L | |
| engine speed | 2300-3400 rpm, variable | |
| starting system | electric starter | |
| fuel | diesel | |
| cooling type | radiator | |
| fuel tank capacity | 32 L | |
| fuel consumption | at 25% load | 1.1 L/h |
| at 50% load | 1.6 L/h | |
| at 100% load | 3 L/h | |
| volt meter | Yes | |
| hour meter | Yes (LED display) | |
| output | 3 plug sockets (50 Hz) | |
| ATS panel | yes | |
Elemax 7.5 kVA Diesel Generator SHX8000Di Dimensions and Weight
| dimensions (L*W*H) | Dry weight |
| 1080*647*686 mm | 257 kg |
Elemax 7.5 kVA Diesel Generator SHX8000Di Sound Data
| sound level | at 25% load | 63.5 dB(A)/7m |
| at 75% load | 65.5 dB(A)/7m | |
| at 100% load | 67.5 dB(A)/7m |
Elemax 7.5 kVA Diesel Generator SHX8000Di Applications
- Construction sites for reliable power supply
- Emergency backup for homes and businesses
- Events and outdoor activities requiring portable power
- Industrial applications needing stable electricity
Elemax 7.5 kVA Diesel Generator SHX8000Di Benefits
- Stable and reliable power output with inverter regulation
- Easy to start with electric starter and efficient cooling system
- Low noise levels for quiet operation
- High fuel efficiency and extended run time
Elemax 7.5 kVA Diesel Generator SHX8000Di Price List
| No. | Name | Price |
| 1 | Elemax 7.5 kVA Diesel Generator SHX8000Di Price | Contact us |
