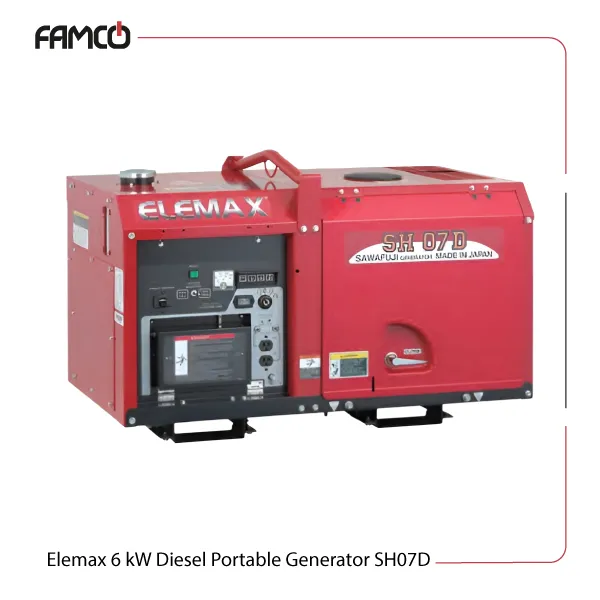

Elemax 6 kW Diesel Portable Generator SH07D Specifications
This generator offers a maximum power output of 6 kW and 6 kVA, suitable for various power needs. It operates at frequencies of 50 or 60 Hz, with a rated single-phase voltage of either 220V or 240V, depending on the Elemax generator model. The engine is a vertical, water-cooled, 4-cycle diesel engine made by Kubota, featuring two cylinders and running at 3000 rpm. It starts easily with an electric starter and includes a control panel with a pilot lamp, volt voltmeter, hour meter, and a full power switch in the LD model. The generator has an automatic transfer switch (ATS) for seamless power switching. It has a fuel tank capacity of 28 liters, consuming approximately 2.2 liters per hour at full load and about 1.5 liters at half load. Continuous operation lasts around 12 hours at full load and nearly 19 hours at half load. Its dimensions are 1066mm in length, 618mm in width, and 698mm in height, with a net weight of approximately 235 kg. The sound level at full load is around 66.5 dB measured at 7 meters. Safety features implemented into thi sdiesel Elemax portable generator system include an emergency stop system that shuts down the engine once any abnormal oil pressure or water temperature is detected or whenever the access terminal cover is opened.
| Specification | Value | |
| Maximum Power Output (kW) | 6 | |
| Maximum Power Output (kVA) | 6 | |
| Frequency (Hz) | 50, 60 | |
| Rated Single-Phase Voltage (V) | 220, 240 | |
| Number of Poles | 2 | |
| Power Factor | 1 | |
| Engine Maker | Kubota | |
| Engine Type | Vertical | |
| Cooling System | Water-cooled, 4-cycle diesel engine | |
| Number of Cylinders | 2 | |
| Engine Speed (rpm) | 3000 | |
| Starting System | Electric starter | |
| Control Panel Equipped With | Pilot lamp, Volt meter, Hour meter, Full power switch (LD model) | |
| ATS | Yes | |
| Fuel Tank Capacity (L) | 28 | |
| Fuel Consumption | at Full Load (L/h) | 2.2 |
| at 1/2 Load (L/h) | 1.5 | |
| Continuous Operation Hours | at Full Load | 12 |
| at Half Load | 18.7 | |
| Sound Level at Full Load (dB/7m) | 66.5 | |
Elemax 6 kW Diesel Portable Generator SH07D Dimensions and Weight
| Dimensions (mm) L*W*H | 1066*618*698 |
| Net Weight (kg) | 235 |
Elemax 6 kW Diesel Portable Generator SH07D Applications
- Backup power for homes and businesses
- Construction site power supply
- Event and outdoor activities
- Emergency power during outages
Elemax 6 kW Diesel Portable Generator SH07D Benefits
- Reliable and stable power output
- Easy to operate with a user-friendly control panel
- Long continuous operation hours
- Enhanced safety with automatic shutdown system
Elemax 6 kW Diesel Portable Generator SH07D Price List
| No. | Name | Price |
| 1 | Elemax 6 kW Diesel Portable Generator SH07D Price | Contact us |
