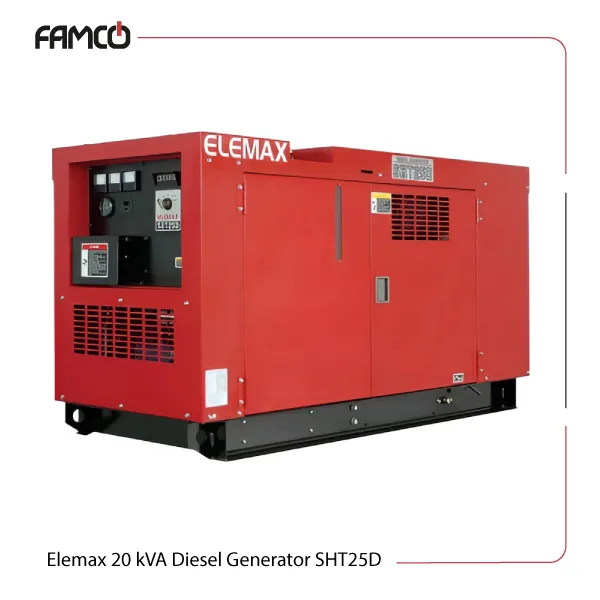

Elemax 20 kVA Diesel Generator SHT25D Specifications
This generator’s 20 kVA power output is suitable for various industrial and commercial applications. It operates at a frequency of 50 Hz and is equipped with a self-exciting system that ensures stable power delivery. The generator has a 2-pole design and supports both single-phase (220V) and three-phase (380V) connections, making it versatile for different power needs. With a power factor of 0.8, this Elemax diesel generator has it all to efficiently convert fuel into steady electrical power. Powered by a durable Kubota engine with a displacement of 2197 cc, it offers reliable performance and long-lasting operation. The unit measures 1660 mm in length, 690 mm in width, and 900 mm in height, with a dry weight of 540 kg, making it portable yet sturdy. Its fuel tank capacity of 72 liters allows for continuous operation up to 17.6 hours without refueling. The generator operates quietly at 66 dB(A) measured from 7 meters away, ensuring minimal noise disturbance. The SHT25D Elemax generator includes essential gauges such as a voltmeter, an ammeter, and an hour meter for monitoring performance. Safety and operational status are indicated through four-condition warning indicator lights. The output is available via terminal connections, and ATS terminals are included for automatic transfer switch integration. An optional caster enhances mobility, making it easier to transport and position the unit in different locations.
| Specification | Value |
| AC power output (kVA) | 20 |
| AC power output (kW) | 16 |
| frequency (Hz) | 50, 60 (table data for 50 Hz version only) |
| type | self-exciting |
| number of poles | 2 |
| single-phase voltage (V) | 220 |
| three-phase voltage (V) | 380 |
| power factor | 0.8 |
| engine maker | Kubota |
| displacement (cc) | 2197 |
| fuel tank capacity (l) | 72 |
| sound level (dB(A)/7m) | 66 |
| continuous operating hours (hr) | 17.6 |
| volt meter | yes |
| ampere meter | yes |
| hour meter | yes |
| warning lights | indicator lights (4-conditions) |
| output | terminal |
| ATS terminals | Yes |
| caster | optional |
Elemax 20 kVA Diesel Generator SHT25D Dimensions and Weight
| dimensions (L*W*H) (mm) | 1660*690*900 |
| dry weight (kg) | 540 |
Elemax 20 kVA Diesel Generator SHT25D Applications
- Construction sites for reliable power supply
- Emergency backup for commercial buildings
- Remote industrial operations
- Event and outdoor activities requiring portable power
Elemax 20 kVA Diesel Generator SHT25D Benefits
- High power output suitable for various needs
- Long operational hours with a large fuel tank
- Easy monitoring with integrated meters and lights
- Portable and versatile with optional caster and multiple voltage options
Elemax 20 kVA Diesel Generator SHT25D Price List
| No. | Name | Price |
| 1 | Elemax 20 kVA Diesel Generator SHT25D Price | Contact us |
