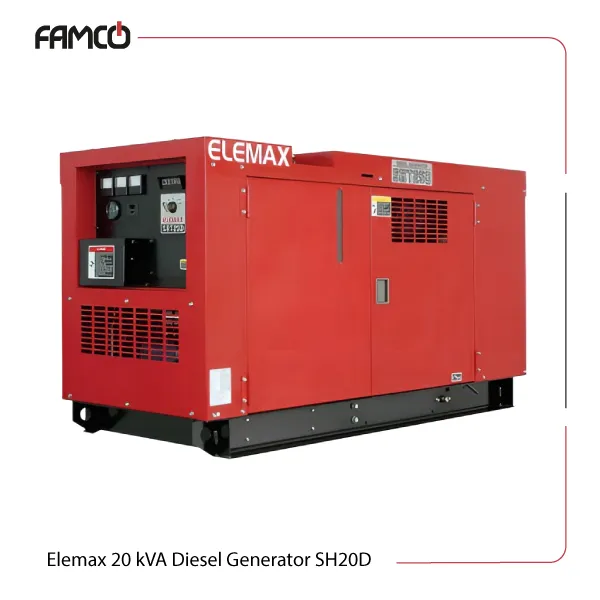

Elemax 20 kVA Diesel Generator SH20D Specifications
This generator features a 60 Hz frequency and a self-exciting type with four poles, ensuring stable power output. This diesel genset is equipped with an Automatic Voltage Regulator (AVR) for precise voltage regulation, making it suitable for sensitive electronics. The generator provides a robust AC power output of 20 kVA at a rated voltage of 120/240 V and a power factor of 1, ideal for various industrial and residential applications. Powered by a Kubota engine with a displacement of 2197 cc, this Elemax diesel generator guarantees reliable performance and durability. Its dimensions are 1660 mm in length, 690 mm in width, and 900 mm in height, with a dry weight of 540 kg, making it relatively portable for its capacity. The fuel tank can hold up to 72 liters, allowing for continuous operation up to 14.3 hours without refueling. It operates at a sound level of 72 dB(A) measured at 7 meters, which is relatively quiet for a generator of this size. The unit includes essential monitoring features such as a volt meter and hour meter, along with indicator lights that signal four different conditions for safety and maintenance. This Elemax generator unit offers multiple output options, including terminals and sockets, and is equipped with ATS terminals for automatic transfer switch compatibility. All in all, this diesel generator is suitable for backup power solutions in various settings.
| Specification | Value |
| frequency | 60 Hz |
| type | self-exciting |
| number of poles | 4 |
| voltage regulation system | AVR |
| AC power output | 20 kVA |
| rated voltage | 120/240 V |
| rated power factor | 1 |
| engine maker | Kubota |
| displacement | 2197 cc |
| fuel tank capacity | 72 liters |
| sound level | 72 dB(A)/7m |
| continuous operating hours | 14.3 hours |
| volt meter | Yes |
| hour meter | Yes |
| warning lights | indicator lights (4 conditions) |
| output | terminal and socket |
| ATS terminals | Yes |
Elemax 20 kVA Diesel Generator SH20D Dimensions and Weight
| dimensions (L*W*H) | 1660*690*900 mm |
| dry weight | 540 kg |
Elemax 20 kVA Diesel Generator SH20D Applications
- Backup power for homes and businesses
- Construction site power supply
- Events and outdoor gatherings
- Industrial equipment operation
Elemax 20 kVA Diesel Generator SH20D Benefits
- Reliable power with 20 kVA capacity
- Long runtime of over 14 hours
- Quiet operation at 72 dB(A)
- Easy monitoring with volt and hour meters
Elemax 20 kVA Diesel Generator SH20D Price List
No.NamePrice1Elemax 20 kVA Diesel Generator SH20D PriceContact us
