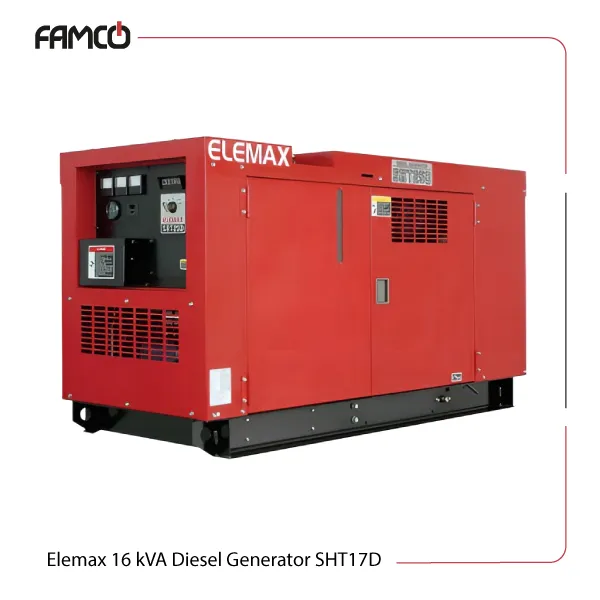

Elemax 16 kVA Diesel Generator SHT17D Specifications
This 12.8 kW Elemax diesel generator provides a stable three-phase voltage of 380 V, regulated by an Automatic Voltage Regulator (AVR) to ensure a stable output. The generator can deliver up to 16 kVA or 12.8 kW of power, with a rated power factor of 0.8, ideal for heavy-duty applications. Powered by a Kubota engine with a displacement of 1001 cc, it offers reliable performance and durability. The fuel tank has a capacity of 53 liters, enabling continuous operation for up to 9 hours. It operates at a minimal sound level of 71 dB(A) measured from 7 meters away. The unit shows great potential with easy monitoring, using a volt meter and hour meter, along with indicator lights that signal four different conditions. It features two output plug sockets and ATS terminals for easy connection to other systems. This Elemax generator unit’s dimensions are 1474 mm in length, 698 mm in width, and 869 mm in height, with a dry weight of 387 kg. Though it may seem it weighs a lot for easy placement in different locations, an optional caster has enhanced mobility and portability.
| Specification | Value |
| frequency | 60 Hz |
| type | self-exciting |
| number of poles | 2 |
| three-phase voltage | 380 V |
| voltage regulation system | AVR |
| AC power output (kVA) | 16 |
| AC power output (kW) | 12.8 |
| rated power factor | 0.8 |
| engine maker | Kubota |
| displacement | 1001 cc |
| fuel tank capacity | 53 liters |
| sound level (dB(A)/7m) | 71 |
| continuous operating hours | 9 hours |
| volt meter | Yes |
| hour meter | Yes |
| warning lights | indicator lights (4 conditions) |
| output | 2 plug sockets |
| ATS terminals | Yes |
| caster | optional |
Elemax 16 kVA Diesel Generator SHT17D Dimensions and Weight
| dimensions L*W*H (mm) | 1474*698*869 |
| dry weight | 387 kg |
Elemax 16 kVA Diesel Generator SHT17D Applications
- Construction sites for powering tools and equipment
- Industrial facilities requiring backup power
- Events and outdoor activities needing temporary electricity
- Emergency power supply during outages
Elemax 16 kVA Diesel Generator SHT17D Benefits
- Reliable and stable power output with AVR system
- Long operating hours with a 53-liter fuel tank
- Easy monitoring via volt and hour meters
- Portable design with optional caster for mobility
Elemax 16 kVA Diesel Generator SHT17D Price List
| No. | Name | Price |
| 1 | Elemax 16 kVA Diesel Generator SHT17D Price | Contact us |
