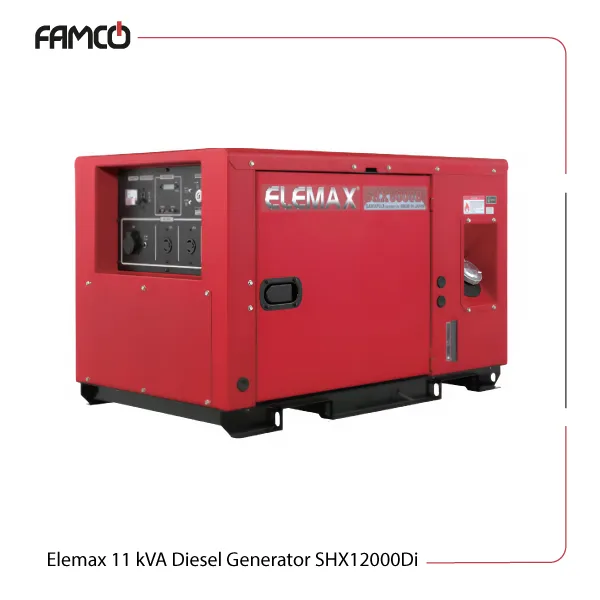

Elemax 11 kVA Diesel Generator SHX12000Di Specifications
This generator features a YANMAR engine with a displacement of 0.784 liters, capable of variable speeds between 2300 and 3400 rpm. It operates on diesel fuel and includes an electric starter for easy ignition. The cooling system uses a radiator to maintain optimal engine temperature. It produces a single-phase voltage of 220V at 50 Hz, with a power factor of 1, making it suitable for various power needs. The generator’s dimensions are 1184 mm in length, 670 mm in width, and 770 mm in height, with a dry weight of 278 kg. The fuel tank can hold up to 40.7 liters, providing a good runtime. Noise levels are relatively low, with 64 dB(A) at 25% load, increasing slightly at higher loads. As for the fuel consumption of this diesel Elemax generator, it varies from 1.6 liters per hour at 25% load to 4.3 liters at full load. It is equipped with a volt meter, an LED display hour meter, and warning lights for user convenience. The generator also includes three plug sockets compatible with 50 Hz power and an ATS terminal for automatic transfer switch connection, making it ideal for backup power solutions and industrial applications.
| Specification | Value |
| frequency | 50, 60 Hz |
| alternator type | permanent magnet, multi-pole |
| single-phase voltage | 220 V (50 Hz) |
| rated power factor | 1 |
| engine maker | YANMAR |
| displacement | 0.784 liters |
| engine speed | 2300-3400 rpm, variable |
| starting system | electric starter |
| fuel | diesel |
| cooling type | radiator |
| fuel tank capacity | 40.7 liters |
| fuel consumption at 25% load | 1.6 liters/hour |
| fuel consumption at 50% load | 2.3 liters/hour |
| fuel consumption at 100% load | 4.3 liters/hour |
| volt meter | YES |
| hour meter | YES, LED Display |
| warning lights | 3 plug sockets (50 Hz) |
| ATS terminal | Yes |
Elemax 11 kVA Diesel Generator SHX12000Di Dimensions and Weight
| dimensions | 1184*670*770 mm |
| dry weight | 278 kg |
Elemax 11 kVA Diesel Generator SHX12000Di Sound Dats
| sound level at 25% load | 64 dB(A) at 7m |
| sound level at 75% load | 66 dB(A) at 7m |
| sound level at 100% load | 68 dB(A) at 7m |
Elemax 11 kVA Diesel Generator SHX12000Di Applications
- Backup power for homes and offices
- Construction site power supply
- Industrial equipment operation
- Event and outdoor activities
Elemax 11 kVA Diesel Generator SHX12000Di Benefits
- Reliable and stable power output
- Fuel-efficient with variable engine speed
- Easy to monitor with volt meter and LED display
- Compact design with low noise levels
Elemax 11 kVA Diesel Generator SHX12000Di Price List
| No. | Name | Price |
| 1 | Elemax 11 kVA Diesel Generator SHX12000Di Price | Contact us |
