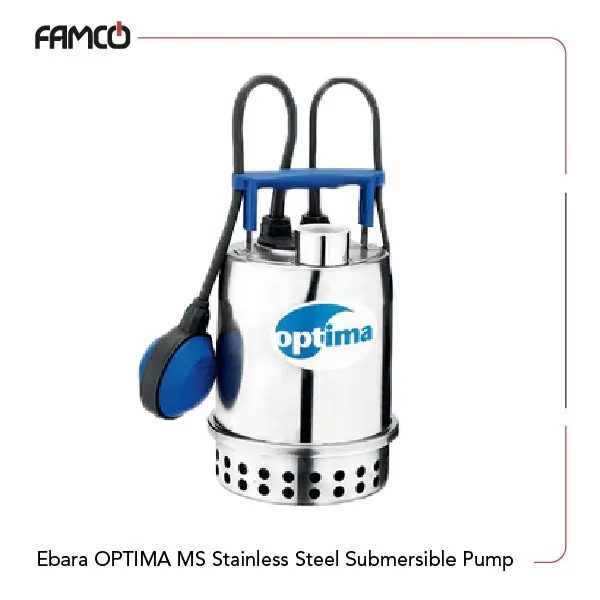

Ebara OPTIMA MS Stainless Steel Submersible Pump Specifications
This pump is designed for clear clean water applications, with a maximum temperature of 50°C and capable of handling solids up to 10mm in size. The casing is made from durable AISI 304 stainless steel, ensuring longevity and resistance to corrosion. The impeller is reinforced with PPE and PS glass fiber, providing efficient performance.
This Ebara submersible pump features a mechanical seal made of ceramic, carbon, and NBR, along with an NBR lip seal for added reliability. The shaft is constructed from AISI 303 stainless steel, coated for extra protection. With a rotation speed of approximately 2800 rpm and an insulation class of F, this pump operates efficiently. It has a protection degree of IP 68 which is applicable for various environments. The power rating is 0.25 kW (0.33 HP), and it weighs 4.46 kg, making it lightweight yet powerful. This pump operates at a height range of 1.5 to 7.6 meters for different applications.
| Specification | Value |
| Type of liquid | Clear clean water |
| Max temperature (°C) | 50 |
| Max solids size (mm) | 10 |
| No. of Poles | 2 |
| Rotation speed (rpm) | ≈2800 |
| Insulation Class | F |
| Protection degree | IP 68 |
| H (m) | 1.5-7.6 |
| Power rating (kW) | 0.25 |
| Power rating (HP) | 0.33 |
| Weight (kg) | 4.46 |
| Frequency (Hz) | 50 |
Ebara OPTIMA MS Stainless Steel Submersible Pump Materials
- Handle: PP
- Casing material: AISI 3
- Motor cover: PP-GF30 class V-0
- Casing cover: AISI 304
- Shaft mechanical seal: AISI 303 + AISI 303 ceramic coated shaft sleeve
- Shaft lip seal: NBR
- Casing cover: AISI 304
- Pump casing: AISI 304
- Impeller: PPE + PS Glass fiber reinforced
- Lubricating liquid: White mineral oil (Esso Marcol 152)
Ebara OPTIMA MS Stainless Steel Submersible Pump Performance Data
| l/min | 0 | 20 | 50 | 75 | 100 | 125 | 150 |
| m³/h | 0 | 1.2 | 3 | 4.5 | 6 | 7.5 | 9 |
| H | 7.6 | 7.0 | 6.3 | 5.4 | 4.3 | 3.1 | 1.5 |
Ebara OPTIMA MS Stainless Steel Submersible Pump Applications
- Irrigation systems for gardens and farms
- Aquarium water circulation
- Water features and fountains
- General water transfer in residential and commercial settings
Ebara OPTIMA MS Stainless Steel Submersible Pump Benefits
- Durable construction with AISI 304 stainless steel
- Efficient performance with a high rotation speed
- Lightweight design for easy handling and installation
- IP 68 protection for reliable outdoor use
Ebara OPTIMA MS Stainless Steel Submersible Pump Price List
| No. | Name | Price |
| 1 | Ebara OPTIMA MS Stainless Steel Submersible Pump Price | Contact us |
