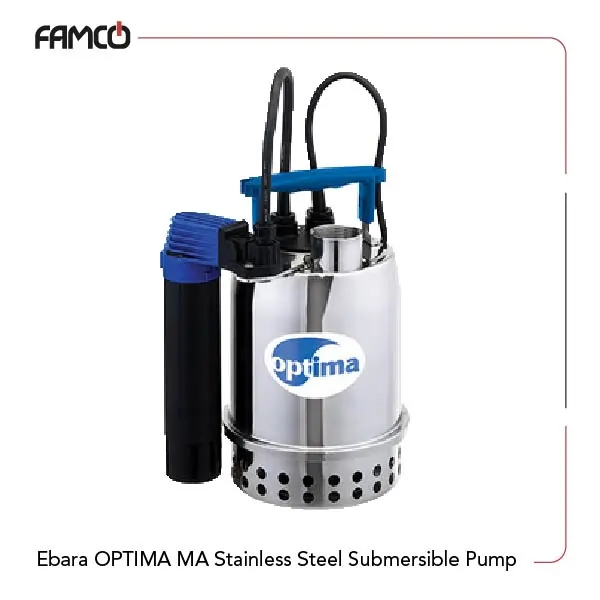

Ebara OPTIMA MA Stainless Steel Submersible Pump Specifications
This pump is designed for clear water applications, with a maximum temperature of 50°C and capable of handling solids up to 10mm in size. The pump casing is made from durable AISI 304 stainless steel to ensure longevity and resistance to corrosion. The impeller is reinforced with PPE and PS glass fiber, providing efficient performance.
This Ebara submersible pump features a mechanical seal made of ceramic, carbon, and NBR, along with a lip seal for added protection. The shaft is constructed from AISI 303 stainless steel, coated for enhanced durability. This product has a rotation speed of approximately 2800 rpm and an insulation class of F to operate efficiently under various conditions. It has a protection degree of IP 68, making it suitable for submerged applications. The power rating is 0.25 kW (0.33 HP), and it weighs 4.4 kg, making it a lightweight yet powerful option for users. This pump operates at a frequency of 50 Hz and can achieve a height range of 1.5 to 7.6 meters.
| Specification | Value |
| Type of liquid | Clear water (Clean water for MS version) |
| Max temperature (°C) | 50 |
| Max solids size (mm) | 10 |
| No. of Poles | 2 |
| Rotation speed (rpm) | ≈2800 |
| Insulation Class | F |
| Protection degree | IP 68 |
| H (m) | 1.5-7.6 |
| Power rating (kW) | 0.25 |
| Power rating (HP) | 0.33 |
| Weight (kg) | 4.4 |
| Frequency (Hz) | 50 |
Ebara OPTIMA MA Stainless Steel Submersible Pump Materials
- Pump casing: AISI 304
- Impeller: PPE+PS-HI-GF 20
- Shaft Mechanical Seal: Ceramic/Carbon/NBR
- Shaft Lip seal: NBR
- Casing cover: AISI 304
- Shaft: AISI 303 + AISI 303 ceramic coated shaft sleeve
- Casing material: AISI 3
- Motor cover: PP-GF30 class V-0
- Handle: PP

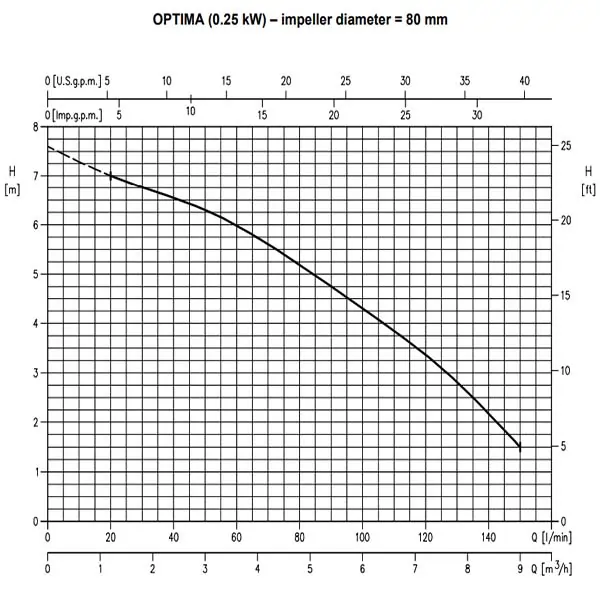

Ebara OPTIMA MA Stainless Steel Submersible Pump Performance Data
| l/min | 0 | 20 | 50 | 75 | 100 | 125 | 150 |
| m³/h | 0 | 1.2 | 3 | 4.5 | 6 | 7.5 | 9 |
| H | 7.6 | 7.0 | 6.3 | 5.4 | 4.3 | 3.1 | 1.5 |
Ebara OPTIMA MA Stainless Steel Submersible Pump Applications
- Water transfer in residential settings
- Irrigation systems for gardens and farms
- Aquarium and pond water circulation
- Construction site dewatering
Ebara OPTIMA MA Stainless Steel Submersible Pump Benefits
- Durable construction with AISI 304 stainless steel
- Efficient performance with a high rotation speed
- Lightweight design for easy handling
- Versatile applications for various water movement needs
Ebara OPTIMA MA Stainless Steel Submersible Pump Price List
| No. | Name | Price |
| 1 | Ebara OPTIMA MA Stainless Steel Submersible Pump Price | Contact us |
