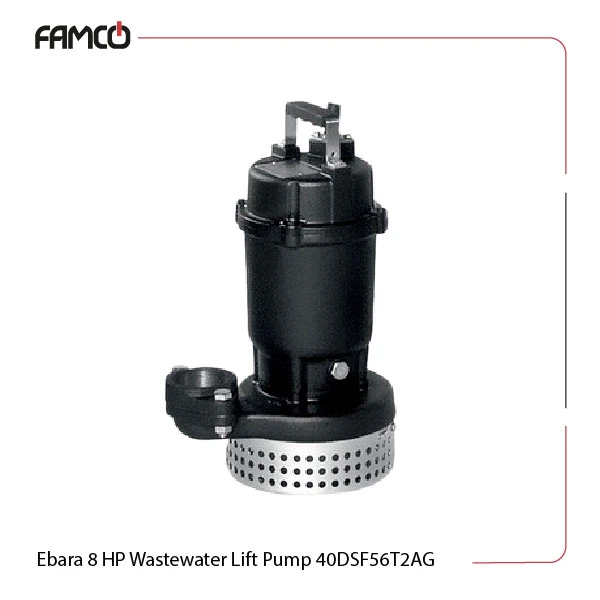

Ebara 8 HP Wastewater Lift Pump 40DSF56T2AG Specifications
This 6 kW (8 HP) product features a drainage impeller type, that moves fluids at a steady rate and hits head hieghts of up to 45 meters. The shaft seal in this Ebara submersible pump is oil lubricated and utilizes a single spring mechanical seal combined with a lip seal for enhanced durability. It can handle solids up to 7 mm in size, since sewage pumps have to pass considerable amounts of wastes. The impeller and casing are made from cast iron GS400 and EN-GJL-250 respectively, for sturdy construction. The product’s shaft is crafted from stainless steel AISI 42B/431, to give the product added strength in resisting corrosion.
The motor frame also uses cast iron EN-GJL-250. the impeller side is sealed and closed using SiC, while the motor side employs a durable material called NBR. The lubricant AGIP ITE 360 ensures smooth operation, and the O-rings and lip seal are made from nitrile for added reliability.
| Specification | Value | |
| Impeller Type | Drainage | |
| Motor Type | Single-Phase | Dry Motor |
| Three-Phase | Cooled by Surrounding Liquid | |
| No. Of Poles | 2 | |
| Rotation Speed (rpm) | 2850 | |
| Insulation class | H | |
| Protection degree | IP 68 | |
| Frequency | 50 | |
| Voltage | Single-Phase | 230 |
| Three-Phase | 400-690 | |
| Power (KW) | 6 | |
| Power (HP) | 8 | |
| H (m) | 27.1-45 | |
| Max Solids Size (mm) | 7 | |
Ebara 8 HP Wastewater Lift Pump 40DSF56T2AG Materials
- Shaft Seal Type: Oil Lubricated, Single Spring Single Mechanical Seal + Lip Seal
- Impeller: cast iron GS400
- Casing: cast iron EN-GJL-250
- Shaft: Stainless Steel AISI 42B/431
- Motor Frame: cast iron EN-GJL-250
- Mechanical Seal of Impeller side: SiC
- Mechanical Seal of motor side: NBR
- Lubricant: AGIP ITE 360
- O-rings and lip seal: Nitrile
Ebara 8 HP Wastewater Lift Pump 40DSF56T2AG Technical Data
| Q (m3/h) | 0 | 83 | 100 | 150 | 200 | 250 | 300 | 400 | 433 | 450 | 467 | 473 | 483 |
| Q (l/min) | 0 | 5 | 6 | 9 | 12 | 15 | 18 | 24 | 26 | 27 | 28 | 28.4 | 29 |
| H (m) | 45 | 43 | 42.5 | 41 | 39.6 | 37.9 | 36 | 31.5 | 30 | 28.9 | 28 | 27.7 | 27.1 |

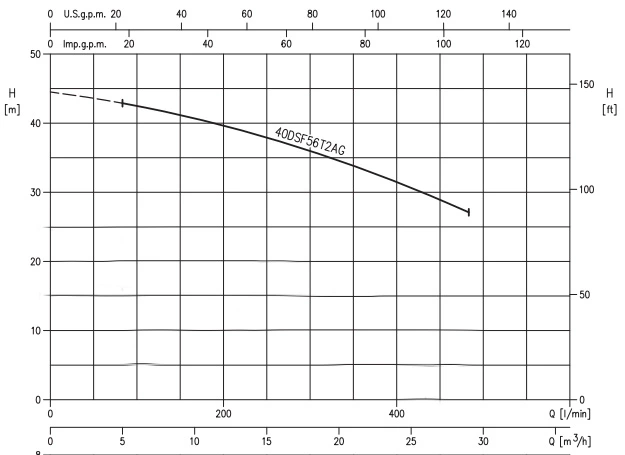

Ebara 8 HP Wastewater Lift Pump 40DSF56T2AG Performance Curve
Ebara 8 HP Wastewater Lift Pump 40DSF56T2AG Applications
- Construction site dewatering
- Agricultural irrigation systems
- Industrial fluid transfer
- Flood control and drainage
Ebara 8 HP Wastewater Lift Pump 40DSF56T2AG Benefits
- High durability with cast iron construction
- Efficient operation with low maintenance needs
- Versatile applications across various industries
- Reliable performance in harsh conditions
Ebara 8 HP Wastewater Lift Pump 40DSF56T2AG Price List
| No. | Name | Price |
| 1 | Ebara 8 HP Wastewater Lift Pump 40DSF56T2AG Price | Contact us |
