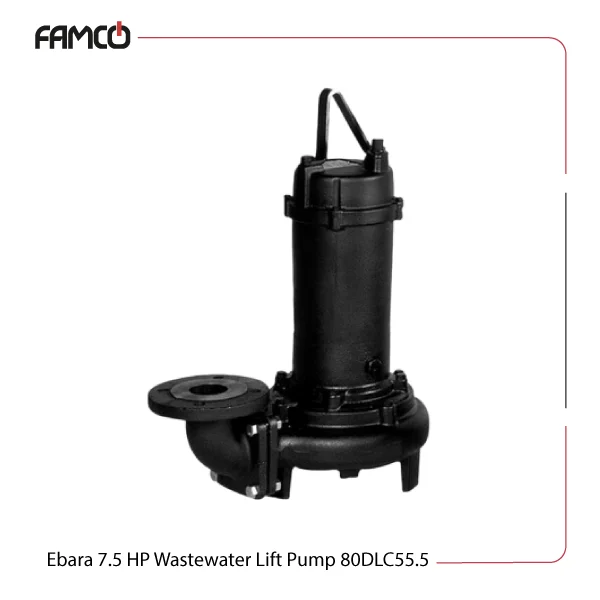

Ebara 7.5 HP Wastewater Lift Pump 80DLC55.5 Specifications
This sewage pump is designed to handle dirty liquids with solids up to 50mm in size. It operates at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump runs on a three-phase power supply of 380-415V with four poles, rotating at approximately 1450 rpm. This series of Ebara pumps features an insulation class F and an IP68 protection degree, making it highly durable and resistant to water and dust. The pump’s power output is 5.5 kW or 7.5 HP, capable of moving up to 96 cubic meters of liquid per hour. It can generate a maximum head of 22.2 meters, with an operational range between 12.3 and 22.2 meters. The impellers of this Ebara sewage pump are made of cast iron, so they last longer in rigorous tasks. Mechanical seals are composed of SiC/SiC/NBR on the impeller side and carbon/ceramic/NBR on the motor side, providing reliable sealing and preventing leaks in harsh environments.
| Specification | Value |
| Type of liquid | sewage |
| Max. liquid temperature (°C) | 40 |
| Max. solids size (mm) | 50 |
| Max. immersion depth (m) | 7 |
| Three-phase voltage (V) | 380-415, 400-415 |
| No. of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. flow rate (m3/h) | 96 |
| Max. head (m) | 12.3-22.2 |
Ebara 7.5 HP Wastewater Lift Pump 80DLC55.5 Materials
- Impellers: cast iron
- Mechanical seal on impeller side: SiC/SiC/NBR
- Mechanical seal on motor side: carbon/ceramic/NBR

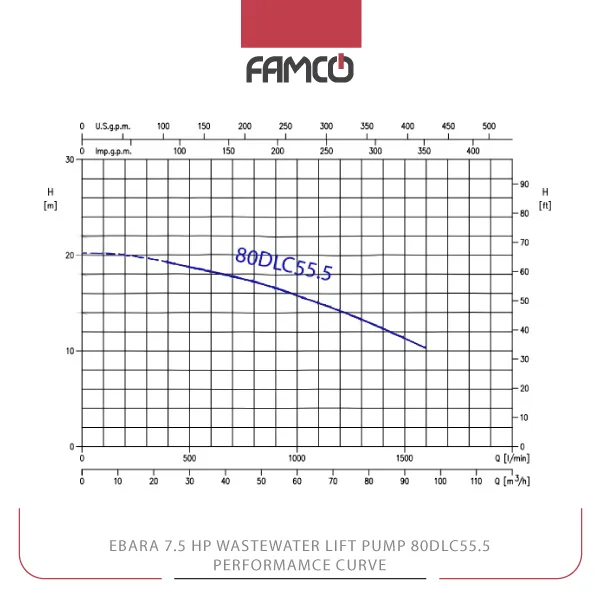

Ebara 7.5 HP Wastewater Lift Pump 80DLC55.5 Performance Technical Data
| l/min | 0 | 70 | 150 | 200 | 400 | 450 | 600 | 800 | 950 | 1000 | 1200 | 1400 | 1600 |
| M3/h | 0 | 4 | 9 | 12 | 24 | 27 | 36 | 48 | 57 | 60 | 72 | 84 | 96 |
| Head (m) | 22.2 | – | – | – | 21.1 | 20.9 | 20.2 | 19.2 | 18.2 | 17.8 | 16.2 | 14.4 | 12.3 |
Ebara 7.5 HP Wastewater Lift Pump 80DLC55.5 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Commercial building sewage systems
- Flood control and drainage systems
Ebara 7.5 HP Wastewater Lift Pump 80DLC55.5 Benefits
- Handles solids up to 50mm for versatile use
- High durability with cast iron impellers
- Resistant to dust and water with IP68 rating
- Efficient with a maximum flow rate of 96 m3/h
Ebara 7.5 HP Wastewater Lift Pump 80DLC55.5 Price List
| No. | Name | Price |
| 1 | Ebara 7.5 HP Wastewater Lift Pump 80DLC55.5 Price | Contact us |
