Ebara 7.5 HP Wastewater Lift Pump 200DL55.5 Specifications
This sewage pump is designed for handling wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C, this Ebara submersible pump can be submerged up to 7 meters deep. The pump features a durable cast iron casing and impeller. It is equipped with high-quality mechanical seals on both the impeller and motor sides, made from SiC/SiC/NBR and Carbon/Ceramic/NBR respectively, to prevent leaks and withstand harsh conditions. The motor has four poles, running at 1450 rpm, with an insulation class of F for safety and durability. Its protection degree is IP68, making it fully protected against dust and water ingress. The Ebara sewage pump, presented to you, operates on a 50 Hz frequency and is compatible with three-phase voltages of 380-415V or 400-415V. It delivers a maximum flow rate of 4000 liters per minute and can lift water up to 12 meters high, making it suitable for various sewage and wastewater applications. The power consumption is 5.5 kW or 7.5 HP, providing a balance of power and efficiency for demanding tasks.
| Specification | Value |
| Type of liquid | sewage |
| Max. temperature (°C) | 40 |
| Max. solids size (mm) | 70 |
| Max. immersion depth (m) | 7 |
| Casing material | cast iron |
| Impeller | cast iron |
| Mechanical seal on impeller side | SiC/SiC/NBR |
| Mechanical seal on motor side | Carbon/Ceramic/NBR |
| Number of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Three-phase voltage (V) | 380-415, 400-415 |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. flow rate (l/min) | 4000 |
| Max. head height (m) | 12 |

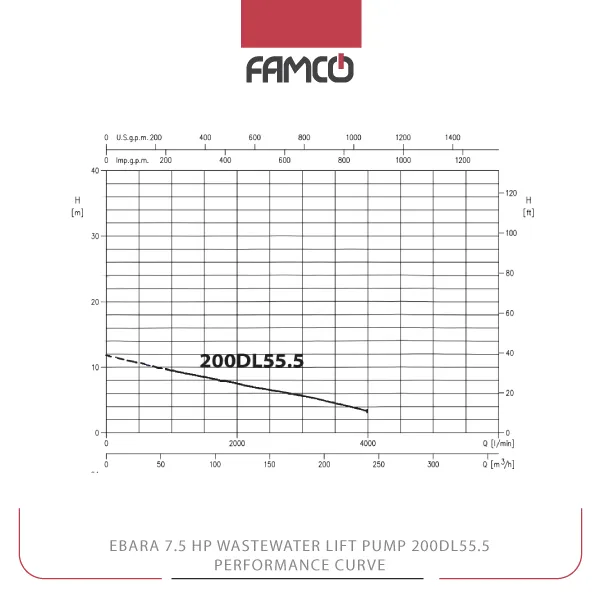

Ebara 7.5 HP Wastewater Lift Pump 200DL55.5 Performance Data
| l/min | 0 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 |
| m³/h | 0 | 60 | 90 | 120 | 150 | 180 | 240 |
| Head (m) | 12 | 9.8 | 8.7 | 7.7 | 6.8 | 5.8 | 3.5 |
Ebara 7.5 HP Wastewater Lift Pump 200DL55.5 Dimensions
| Dimensions (mm) | Weight (kg) | |||||||||
| A | B | C | D | E | F | H | J | L1 | CL (m) | 160 |
| 832 | 430 | 615 | 217 | 450 | 414 | 826 | 300 | 285 | 10 | |
Ebara 7.5 HP Wastewater Lift Pump 200DL55.5 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Residential sewage systems
- Flood control and drainage projects
Ebara 7.5 HP Wastewater Lift Pump 200DL55.5 Benefits
- High durability with cast iron construction
- Efficient handling of solids up to 70 mm
- Reliable operation with IP68 protection
- Powerful performance with 4000 l/min flow rate
Ebara 7.5 HP Wastewater Lift Pump 200DL55.5 Price List
| No. | Name | Price |
| 1 | Ebara 7.5 HP Wastewater Lift Pump 200DL55.5 Price | Contact us |
