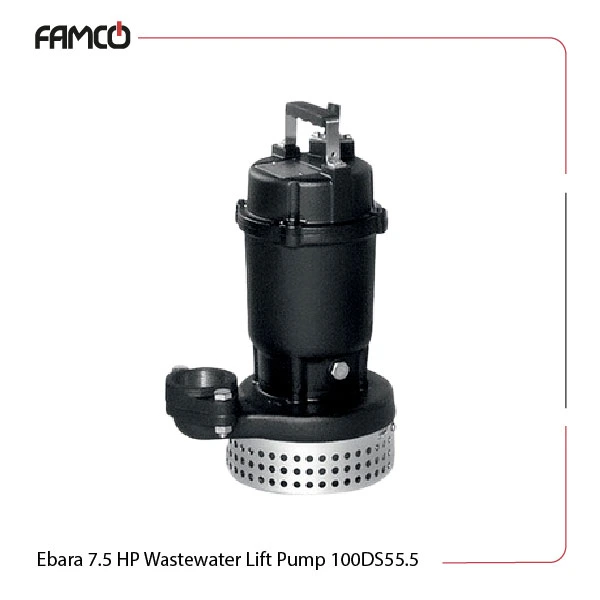

Ebara 7.5 HP Wastewater Lift Pump 100DS55.5 Specifications
This product features a semi-open impeller type with a strainer that ensures efficient fluid movement. With a power range of 1.5 to 7.5 kW, it can handle significant workloads while maintaining optimal performance. The shaft seal is oil lubricated with a single spring double mechanical seal for enhanced durability. Constructed from solid cast iron, this Ebara submersible pump has its impeller, casing, and motor frame provide excellent strength and longevity. The shaft is made from Aisi 403, while the mechanical seals on both sides consist of high-quality materials like SiC and ceramic, to make this sewage pump unsusceptible to fluid ingress. The insulation class is rated F, and it has a protection degree of IP 68, making it suitable for various challenging environments as with most Ebara pumps in the market. The product dimensions are well-defined, with a weight of 92 kg, so it takes minimal space while being forceful.
| Specification | Value | |
| Motor Type | Three Phase air filled dry submersible | |
| No. Of Poles | 2 | |
| Rotation Speed (rpm) | ~2850 | |
| Insulation class | F | |
| Protection degree | IP 68 | |
| Frequency | 50 | |
| Voltage | 380-415 | |
| Power (KW) | 5.5 | |
| Power (HP) | 7.5 | |
| H (m) | 11.6-31.6 | |
| Flange Type | Round | |
| Weight (kg) | 92 | |
| *L.W.L (Low Water Level) | Operation is limited to 10 minutes at L.W.L, Operation is limited to 30 minutes with water level below top of motor | |
Ebara 7.5 HP Wastewater Lift Pump 100DS55.5 Materials
- Impeller Type: Semi-Open (with Strainer)
- Shaft Seal Type: Oil Lubricated, Single Spring Double Mechanical Seal
- Impeller: cast iron
- Casing: cast iron
- Motor Frame: cast iron
- Shaft: Aisi 403
- Mechanical Seal of Impeller Side: SiC/SiC/NBR
- Mechanical Seal of Motor Side: Carbon/Ceramic/NBR
- Lubricant: Turbine Oil VG32 (SAE 10W/20W)
Ebara 7.5 HP Wastewater Lift Pump 100DS55.5 Technical Data
| Q (m3/h) | 0 | 300 | 400 | 433 | 450 | 467 | 473 | 483 | 500 | 550 | 580 | 600 | 700 | 800 | 950 | 1000 | 1170 | 1200 | 1250 |
| Q (l/min) | 0 | 18 | 24 | 26 | 27 | 28 | 28.4 | 29 | 30 | 33 | 34.8 | 36 | 42 | 48 | 57 | 60 | 70.2 | 72 | 75 |
| H (m) | 31.6 | 30.7 | 30 | 30 | 29.5 | 29.4 | 29.3 | 29.2 | 29 | 28.4 | 28 | 27.8 | 26.3 | 24.5 | 21.3 | 20.0 | 14.8 | 13.6 | 11.6 |

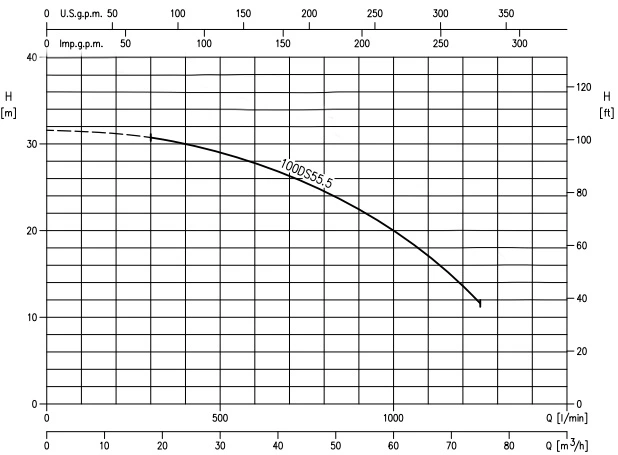

Ebara 7.5 HP Wastewater Lift Pump 100DS55.5 Performance Curve
Ebara 7.5 HP Wastewater Lift Pump 100DS55.5 Applications
- Industrial wastewater management
- Construction site dewatering
- Agricultural irrigation systems
- Mining and quarry operations
Ebara 7.5 HP Wastewater Lift Pump 100DS55.5 Benefits
- Durable cast iron construction for longevity
- High efficiency with semi-open impeller design
- Versatile discharge options for various applications
- IP 68 protection for reliable operation in harsh conditions
Ebara 7.5 HP Wastewater Lift Pump 100DS55.5 Price List
| No. | Name | Price |
| 1 | Ebara 7.5 HP Wastewater Lift Pump 100DS55.5 Price | Contact us |
