Ebara 7.5 HP Wastewater Lift Pump 100DLB55.5W/C Specifications
This sewage pump is designed for handling wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast iron casing and impeller, ensuring longevity and resistance to corrosion. It is equipped with high-quality mechanical seals on both the impeller and motor sides, made from SiC/SiC/NBR and Carbon/Ceramic/NBR respectively, to prevent leaks and withstand harsh conditions. The motor has four poles, running at 1450 rpm, with an insulation class of F for safety and durability. Water ingress is a non-issue in this Ebara submersible pump thanks to its protection degree of IP68. The presented Ebara sewage pump operates on a 50 Hz frequency with a voltage range of 380-415V, suitable for industrial setups. It delivers a maximum flow rate of 2500 liters per minute and can achieve a head height of up to 16.9 meters, making it ideal for various sewage and wastewater applications. The power consumption is 5.5 kW or 7.5 HP, providing a balance of power and efficiency for demanding tasks.
| Specification | Value |
| Type of liquid | sewage |
| Max. temperature (°C) | 40 |
| Max. solids size (mm) | 70 |
| Max. immersion depth (m) | 7 |
| Casing material | cast iron |
| Impeller | cast iron |
| Mechanical seal on impeller side | SiC/SiC/NBR |
| Mechanical seal on motor side | Carbon/Ceramic/NBR |
| Number of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Voltage (V) | 380-415, 400-415 |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. flow rate (l/min) | 2500 |
| Max. head height (m) | 16.9 |

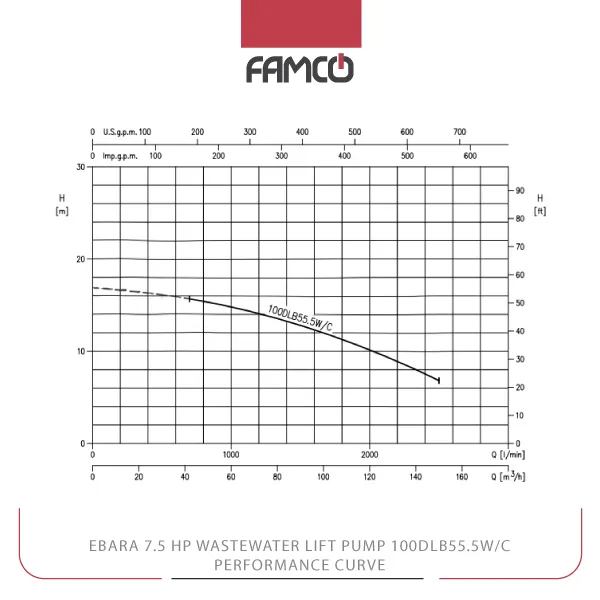

Ebara 7.5 HP Wastewater Lift Pump 100DLB55.5W/C Performance Data
| l/min | 0 | 100 | 250 | 300 | 400 | 500 | 700 | 900 | 1000 | 1100 | 1200 | 1400 | 1600 | 2000 | 2400 | 2500 |
| m³/h | 0 | 6 | 15 | 18 | 24 | 30 | 42 | 54 | 60 | 66 | 72 | 84 | 96 | 120 | 144 | 150 |
| Head (m) | 16.9 | – | – | – | – | – | 15.7 | 15.1 | 14.8 | 14.5 | 14.1 | 13.3 | 12.3 | 10.1 | 7.5 | 6.8 |

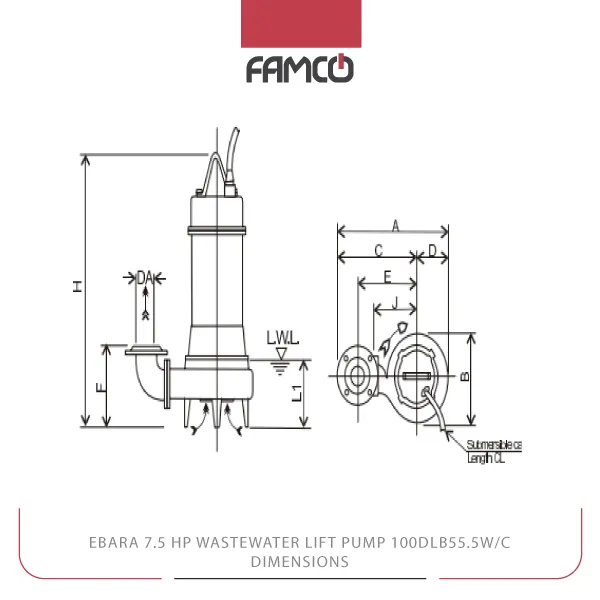

Ebara 7.5 HP Wastewater Lift Pump 100DLB55.5W/C Dimensions
| Dimensions (mm) | Weight (kg) | |||||||||
| A | B | C | D | E | F | H | J | L1 | CL (m) | 123 |
| 5.5 | 646 | 369 | 460 | 186 | 355 | 323 | 768 | 250 | 205 | |
Ebara 7.5 HP Wastewater Lift Pump 100DLB55.5W/C Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Commercial building drainage systems
- Flood control and drainage projects
Ebara 7.5 HP Wastewater Lift Pump 100DLB55.5W/C Benefits
- Durable cast iron construction for long-lasting use
- High solids handling capacity up to 70 mm
- Reliable mechanical seals prevent leaks
- High protection rating IP68 for tough environments
Ebara 7.5 HP Wastewater Lift Pump 100DLB55.5W/C Price List
| No. | Name | Price |
| 1 | Ebara 7.5 HP Wastewater Lift Pump 100DLB55.5W/C Price | Contact us |
