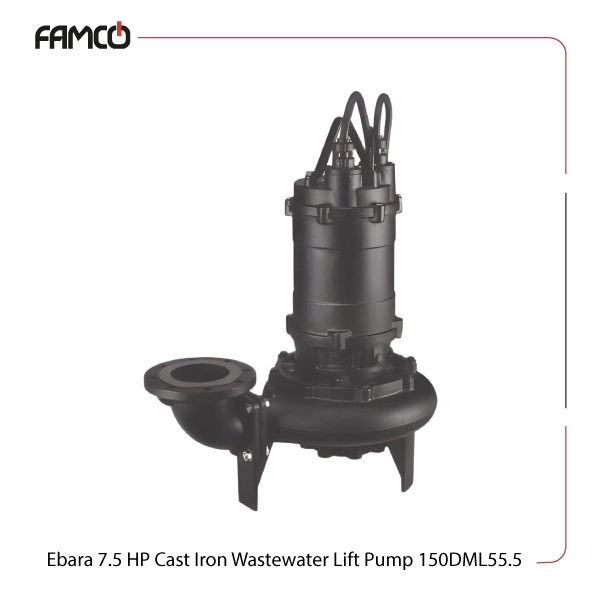

Ebara 7.5 HP Cast Iron Wastewater Lift Pump 150DML55.5 Specifications
This sewage pump is designed to handle dirty liquids with solids up to 76 mm in size. This series of Ebara sewage pumps operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump runs on a three-phase power supply of 380-415V and features four poles, rotating at approximately 1450 rpm. It has an insulation class F and an IP68 protection degree, making it suitable for harsh environments. The pump delivers a maximum flow rate of 204 cubic meters per hour and can generate a head between 3.9 and 22 meters. Its impellers are made of durable cast iron, and the mechanical seals are composed of SiC/SiC/NBR on the impeller side and carbon/ceramic/NBR on the motor side.
| Specification | Value |
| Type of liquid | sewage |
| Max. liquid temperature (°C) | 40 |
| Max. solids size (mm) | 76 |
| Max. immersion depth (m) | 7 |
| Three-phase voltage (V) | 380-415 |
| No. of poles | 4 |
| Rotation speed (rpm) | ≈1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. flow rate (m3/h) | 204 |
| Max. head (m) | 3.9-22.0 |
Ebara 7.5 HP Cast Iron Wastewater Lift Pump 150DML55.5 Materials
- Impellers: cast iron
- Mechanical seal on impeller side: SiC/SiC/NBR
- Mechanical seal on motor side: carbon/ceramic/NBR

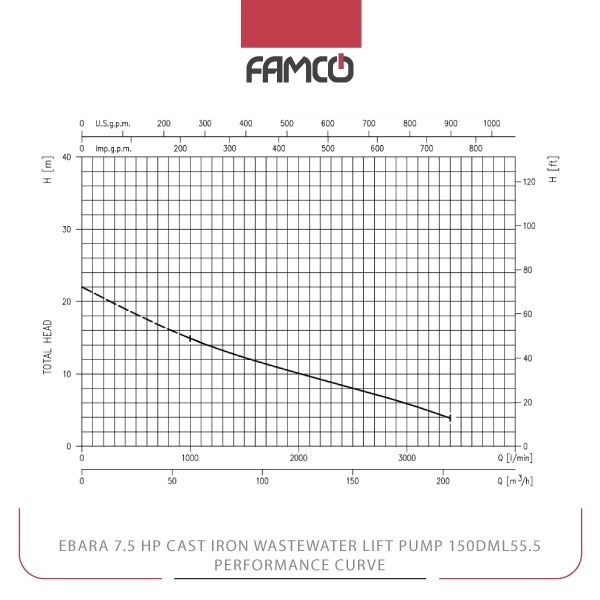

Ebara 7.5 HP Cast Iron Wastewater Lift Pump 150DML55.5 Performance Data
| l/min | 0 | 1000 | 2000 | 2500 | 3000 | 3400 |
| M3/h | 0 | 60 | 120 | 150 | 180 | 204 |
| Head (m) | 22.0 | 14.9 | 10.1 | 8.0 | 5.9 | 3.9 |
Ebara 7.5 HP Cast Iron Wastewater Lift Pump 150DML55.5 Applications
- Sewage treatment plants
- Municipal wastewater management
- Industrial drainage systems
- Flood control and drainage
Ebara 7.5 HP Cast Iron Wastewater Lift Pump 150DML55.5 Benefits
- Handles solids up to 76 mm for versatile use
- High flow rate of 204 m3/h for efficient pumping
- Durable cast iron impellers for long-lasting performance
- IP68 protection for reliable operation in harsh environments
Ebara 7.5 HP Cast Iron Wastewater Lift Pump 150DML55.5 Price List
| No. | Name | Price |
| 1 | Ebara 7.5 HP Cast Iron Wastewater Lift Pump 150DML55.5 Price | Contact us |
