Ebara 60 Wastewater Lift Pump 150DL545 Specifications
This sewage pump is designed for handling wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast-iron casing and impeller, ensuring long-lasting performance in demanding environments. It is equipped with high-quality mechanical seals on both the impeller and motor sides, made from SiC/SiC/NBR and Carbon/Ceramic/NBR, respectively, to prevent leaks and withstand harsh conditions. Engineers have given this Ebara submersible pump’s motor a series of 4 poles, running at 1450 rpm, with an insulation class of F for safety and durability. It supports a frequency of 50 Hz and voltage options of 380-415V or 400-415V, making it suitable for various power supplies. The 150DL545 Ebara sewage pump delivers a maximum flow rate of 4400 liters per minute and can achieve a head height of up to 264 meters, making it ideal for high-demand applications. Its protection degree of IP68 ensures complete protection against dust and water ingress, suitable for submerged operation in sewage systems. Overall, this pump combines robust construction with high performance, suitable for industrial and municipal sewage management tasks.
| Specification | Value |
| Type of liquid | sewage |
| Max. temperature (°C) | 40 |
| Max. solids size (mm) | 70 |
| Max. immersion depth (m) | 7 |
| Casing material | cast iron |
| Impeller | cast iron |
| Mechanical seal on impeller side | SiC/SiC/NBR |
| Mechanical seal on motor side | Carbon/Ceramic/NBR |
| Number of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Voltage (V) | 380-415, 400-415 |
| Power (kW) | 45 |
| Power (HP) | 60 |
| Max. flow rate (l/min) | 4400 |
| Max. head height (m) | 264 |

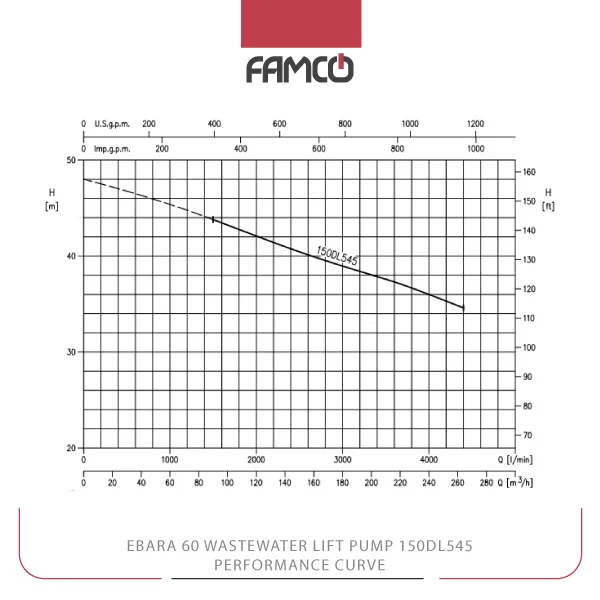

Ebara 60 Wastewater Lift Pump 150DL545 Performance Data
| l/min | 0 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 3200 | 3400 | 3500 | 3600 | 3800 | 4000 | 4200 | 4400 |
| m³/h | 0 | 60 | 72 | 90 | 120 | 150 | 180 | 192 | 204 | 210 | 216 | 228 | 240 | 252 | 264 |
| Head (m) | 48 | – | – | 43.5 | 42 | 40.5 | 39.1 | 38.5 | 37.9 | 37.6 | 37.3 | 36.7 | 36 | 35.3 | 34.6 |

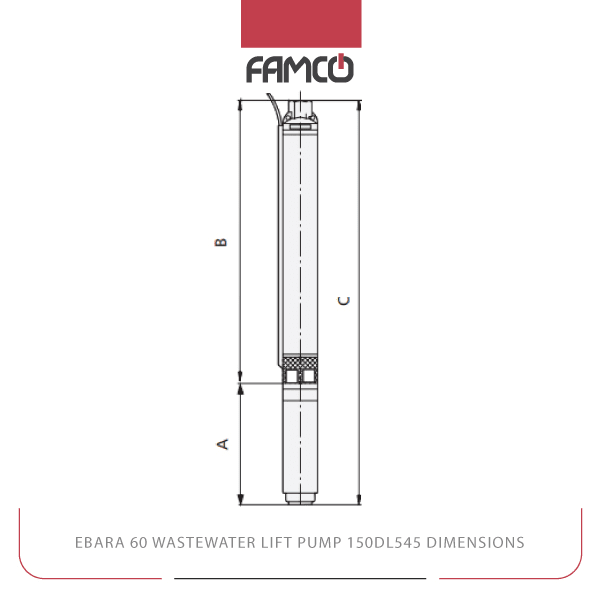

Ebara 60 Wastewater Lift Pump 150DL545 Dimensions
| Dimensions (mm) | Weight (kg) | |||||||||
| A | B | C | D | E | F | H | J | L1 | CL (m) | 350 |
| 912 | 520 | 650 | 262 | 510 | 468 | 1404 | 360 | 494 | 10 | |
Ebara 60 Wastewater Lift Pump 150DL545 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Flood control and drainage systems
- Construction site sewage removal
Ebara 60 Wastewater Lift Pump 150DL545 Benefits
- High durability with cast iron construction
- Efficient handling of solids up to 70 mm
- Reliable operation with IP68 protection
- High flow rate and head height for demanding tasks
Ebara 60 Wastewater Lift Pump 150DL545 Price List
| No. | Name | Price |
| 1 | Ebara 60 Wastewater Lift Pump 150DL545 Price | Contact us |
