Ebara 60 HP Wastewater Lift Pump 300DL545 Specifications
This sewage pump is designed to handle dirty liquids with solids up to 70 mm in size. It operates at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast-iron casing and impeller, ensuring long-lasting performance in tough environments. It uses high-quality mechanical seals on both the impeller and motor sides, with materials like SiC, ceramic, NBR, and carbon to prevent leaks and withstand wear. The motor has 4 poles, running at 1450 rpm, with an insulation class F for safety and efficiency. Protected with an IP68 rating, this Ebara sewage pump is suitable for underwater applications. The pump operates on a 50 Hz frequency and a voltage range of 380-415V, providing reliable power. It delivers a maximum flow rate of 13,000 liters per minute and can generate a head height of up to 780 meters, making it the ideal choice among the 60 HP Ebara submersible pumps available throughout the market. With a power output of 45 kW (60 HP), this pump offers high performance for demanding applications with efficient and consistent operation in sewage systems, drainage, and industrial waste handling.
Specification | Value |
Type of liquid | sewage |
Max. temperature (°C) | 40 |
Max. solids size (mm) | 70 |
Max. immersion depth (m) | 7 |
Casing material | cast iron |
Impeller | cast iron |
Mechanical seal on impeller side | SiC/SiC/NBR |
Mechanical seal on motor side | Carbon/Ceramic/NBR |
Number of poles | 4 |
Rotation speed (rpm) | 1450 |
Insulation class | F |
Protection degree | IP68 |
Frequency (Hz) | 50 |
Voltage (V) | 380-415, 400-415 |
Power (kW) | 45 |
Power (HP) | 60 |
Max. flow rate (l/min) | 13000 |
Max. head height (m) | 780 |

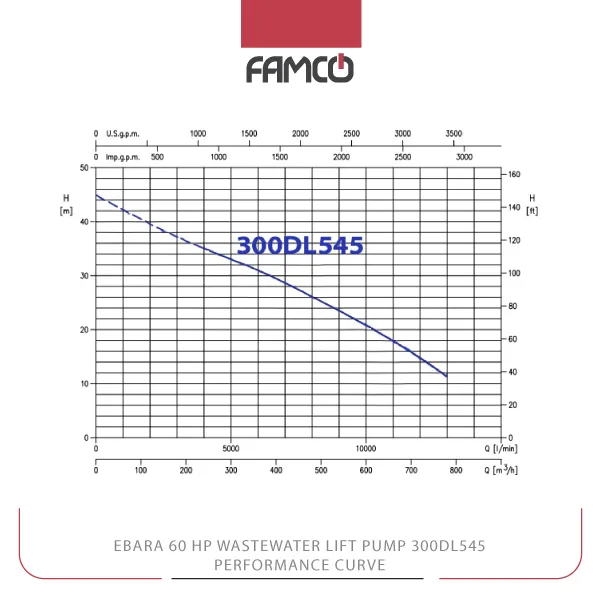

Ebara 60 HP Wastewater Lift Pump 300DL545 Performance Data
l/min | 0 | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 | 10000 | 11000 | 12000 | 13000 |
m³/h | 0 | 180 | 240 | 300 | 360 | 420 | 480 | 540 | 600 | 660 | 720 | 780 |
Head (m) | 45 | – | 35 | 33.1 | 31 | 28.6 | 26.1 | 23.5 | 20.8 | 17.9 | 14.8 | 11.3 |

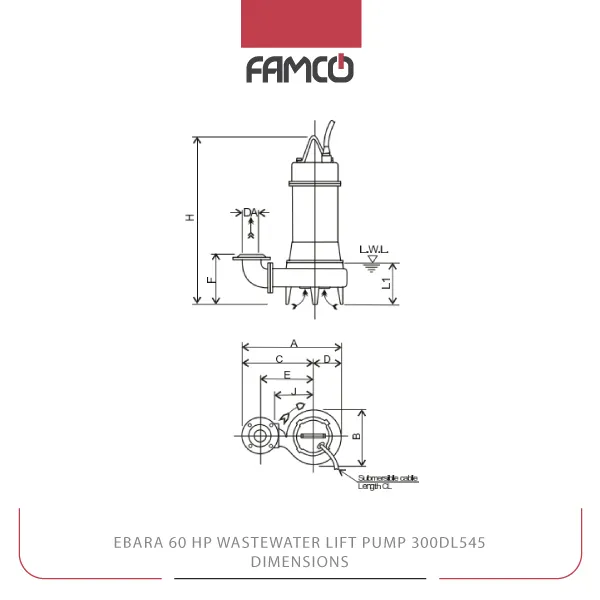

Ebara 60 HP Wastewater Lift Pump 300DL545 Dimensions
Dimensions (mm) | Weight (kg) | |||||||||
A | B | C | D | E | F | H | J | L1 | CL (m) | 540 |
1172 | 660 | 838 | 335 | 615 | 726 | 1475 | 460 | 565 | 10 |
Ebara 60 HP Wastewater Lift Pump 300DL545 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Drainage systems in large facilities
- Wastewater transfer in commercial buildings
Ebara 60 HP Wastewater Lift Pump 300DL545 Benefits
- High flow capacity for large volume transfer
- Durable cast iron construction for longevity
- Effective handling of solids up to 70 mm
- Reliable operation with IP68 protection and high-quality seals
Ebara 60 HP Wastewater Lift Pump 300DL545 Price List
No. | Name | Price |
1 | Ebara 60 HP Wastewater Lift Pump 300DL545 Price | Contact us |
