Ebara 60 HP Wastewater Lift Pump 250DL545 Specifications
This sewage pump is designed for handling wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast iron casing and impeller with lasting performance in the most difficult environments. This Ebara submersible pump’s mechanical seals on both the impeller and motor sides, made from high-quality materials like SiC, ceramic, NBR, and carbon, which provide excellent sealing and durability. The motor has four poles, running at 1450 rpm, with an insulation class of F, suitable for continuous operation. Its protection degree is IP68, making it fully protected against dust and water ingress. The pump operates on a 50 Hz frequency and supports voltages between 380V and 415V, including 400V variants. It delivers a maximum flow rate of 11,000 liters per minute and can lift water to 45 meters high, making this Ebara sewage pump suitable for various industrial and municipal applications. With a power output of 45 kW (60 HP), this pump offers high efficiency and reliable performance for demanding sewage transfer tasks.
Specification | Value |
Type of liquid | sewage |
Max. temperature (° C) | 40 |
Max. solids size (mm) | 70 |
Max. immersion depth (m) | 7 |
Casing material | cast iron |
Impeller | cast iron |
Mechanical seal on impeller side | SiC/SiC/NBR |
Mechanical seal on motor side | Carbon/Ceramic/NBR |
Number of poles | 4 |
Rotation speed (rpm) | 1450 |
Insulation class | F |
Protection degree | IP68 |
Frequency (Hz) | 50 |
Voltage (V) | 380-415, 400-415 |
Power (kW) | 45 |
Power (HP) | 60 |
Max. flow rate (l/min) | 11000 |
Max. head height (m) | 45 |

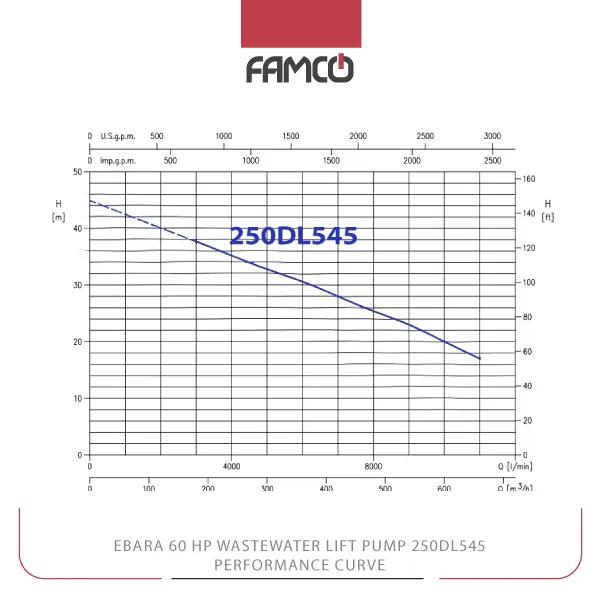

Ebara 60 HP Wastewater Lift Pump 250DL545 Performance Data
l/min | 0 | 2000 | 3000 | 4000 | 5000 | 6000 | 6500 | 7000 | 7500 | 8000 | 8500 | 9000 | 10000 | 10500 | 11000 |
m³/h | 0 | 120 | 180 | 240 | 300 | 360 | 390 | 420 | 450 | 480 | 510 | 540 | 600 | 630 | 660 |
Head (m) | 45 | – | 37.7 | 35.2 | 32.8 | 30.6 | 29.3 | 28 | 26.7 | 25.4 | 24.2 | 23 | 20 | 18.5 | 17 |

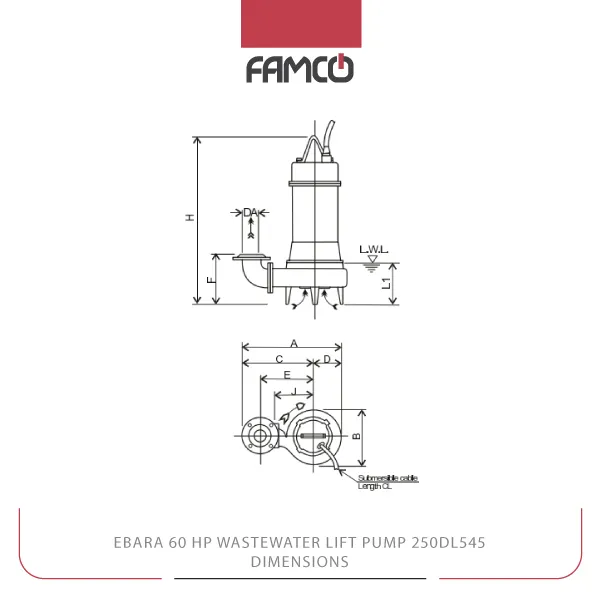

Ebara 60 HP Wastewater Lift Pump 250DL545 Dimensions
Dimensions (mm) | Weight (kg) | |||||||||
A | B | C | D | E | F | H | J | L1 | CL (m) | 540 |
1125 | 660 | 790 | 335 | 590 | 706 | 1475 | 460 | 565 | 10 |
Ebara 60 HP Wastewater Lift Pump 250DL545 Applications
- Municipal sewage treatment plants
- Industrial wastewater transfer
- Drainage systems in construction sites
- Flood control and water removal
Ebara 60 HP Wastewater Lift Pump 250DL545 Benefits
- High flow capacity for large volume transfer
- Durable cast iron construction for longevity
- Reliable mechanical seals prevent leaks
- Suitable for tough environments with IP68 protection
Ebara 60 HP Wastewater Lift Pump 250DL545 Price List
No. | Name | Price |
1 | Ebara 60 HP Wastewater Lift Pump 250DL545 Price | Contact us |
