Ebara 60 HP Wastewater Lift Pump 200DL545 Specifications
This sewage pump is designed to handle dirty water with solids up to 70mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast iron casing and impeller, ensuring longevity and resistance to corrosion. As a top-tier Ebara sewage pump, it is equipped with high-quality mechanical seals on both the impeller and motor sides, made from SiC/SiC/NBR and Carbon/Ceramic/NBR, respectively, to prevent leaks and withstand harsh conditions. This pumping solution produced by Ebara has the advantage of a motor with four poles, running at 1450 rpm, with an insulation class of F for safety and durability. Its protection degree is IP68, making this Ebara submersible pump fully waterproof and dustproof, suitable for demanding environments. The pump operates on a 50Hz frequency with a voltage range of 380-415V or 400-415V, providing reliable power. It delivers a maximum flow rate of 8000 liters per minute and can generate a head height of up to 48 meters, making it ideal for various sewage and wastewater applications. The power output is 45 kW or 60 HP, ensuring strong performance for heavy-duty tasks. Overall, this pump combines high efficiency, durability, and safety features to meet the needs of industrial and municipal sewage systems.
| Specification | Value |
| Type of liquid | sewage |
| Max. temperature (°C) | 40 |
| Max. solids size (mm) | 70 |
| Max. immersion depth (m) | 7 |
| Casing material | cast iron |
| Impeller | cast iron |
| Mechanical seal on impeller side | SiC/SiC/NBR |
| Mechanical seal on motor side | Carbon/Ceramic/NBR |
| Number of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Voltage (V) | 380-415, 400-415 |
| Power (kW) | 45 |
| Power (HP) | 60 |
| Max. flow rate (l/min) | 8000 |
| Max. head height (m) | 48 |

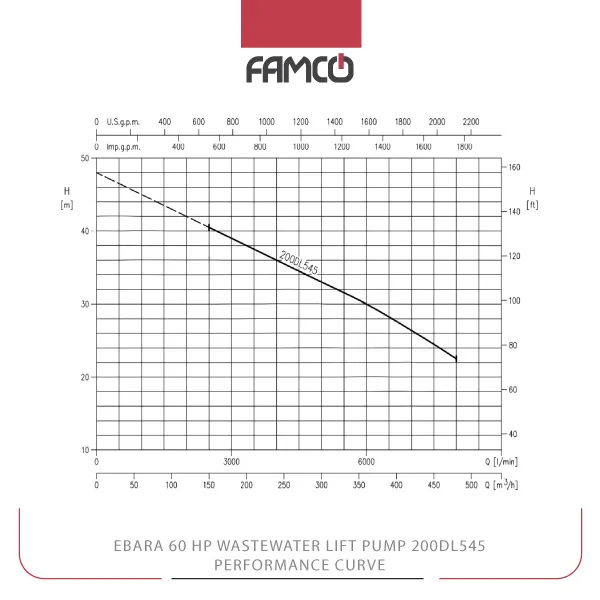

Ebara 60 HP Wastewater Lift Pump 200DL545 Performance Data
| l/min | 0 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 | 5000 | 5500 | 6000 | 7000 | 7500 |
| m³/h | 0 | 60 | 90 | 120 | 150 | 180 | 240 | 270 | 300 | 330 | 360 | 420 | 450 |
| Head (m) | 43 | – | – | – | 35.8 | 34.4 | 31.1 | 29.6 | 28.2 | 26.5 | 24.8 | 21 | 19.1 |

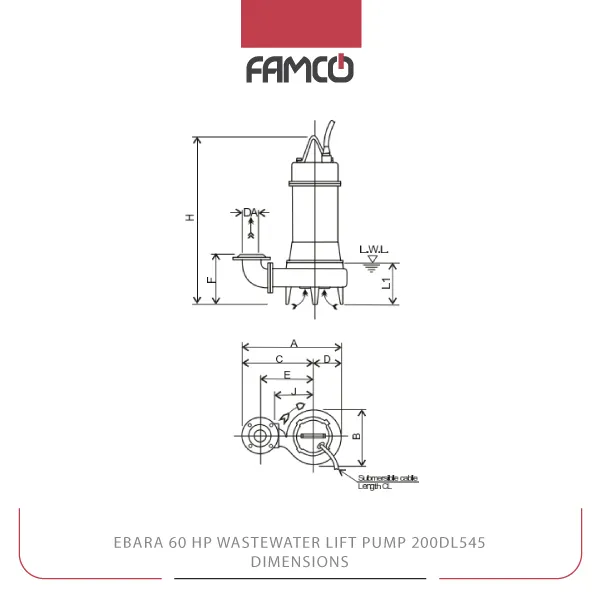

Ebara 60 HP Wastewater Lift Pump 200DL545 Dimensions
| Dimensions (mm) | Weight (kg) | |||||||||
| A | B | C | D | E | F | H | J | L1 | CL (m) | 370 |
| 937 | 520 | 675 | 262 | 510 | 483 | 1404 | 360 | 494 | 10 | |
Ebara 60 HP Wastewater Lift Pump 200DL545 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Flood control systems
- Construction site drainage
Ebara 60 HP Wastewater Lift Pump 200DL545 Benefits
- High durability with cast iron construction
- Efficient handling of solids up to 70mm
- Reliable operation with IP68 protection
- Powerful performance with 45 kW motor
Ebara 60 HP Wastewater Lift Pump 200DL545 Price List
| No. | Name | Price |
| 1 | Ebara 60 HP Wastewater Lift Pump 200DL545 Price | Contact us |
