Ebara 50 HP Wastewater Lift Pump 250DL537 Specifications
This sewage pump is designed to handle wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The Ebara submersible pump offered here runs on a 50 Hz power supply with voltage options of 380-415V or 400-415V. This Ebara sewage pump also has the advantage of featuring a durable cast iron casing and impeller. It uses high-quality mechanical seals on both the impeller and motor sides, with materials like SiC, ceramic, NBR, and carbon to prevent leaks and withstand corrosive liquids. The motor has four poles, running at 1450 rpm, with an insulation class F for safety and durability. It is protected by an IP68 rating, making it dust-tight and waterproof. It delivers a maximum flow rate of 10,500 liters per minute and can generate a head height of up to 40 meters, making it suitable for various sewage and wastewater applications. Its robust construction and high performance make it ideal for industrial, municipal, and commercial use, especially where handling of solids and durability are critical.
Specification | Value |
Type of liquid | sewage |
Max. temperature (°C) | 40 |
Max. solids size (mm) | 70 |
Max. immersion depth (m) | 7 |
Casing material | cast iron |
Impeller | cast iron |
Mechanical seal on impeller side | SiC/SiC/NBR |
Mechanical seal on motor side | Carbon/Ceramic/NBR |
Number of poles | 4 |
Rotation speed (rpm) | 1450 |
Insulation class | F |
Protection degree | IP68 |
Frequency (Hz) | 50 |
Voltage (V) | 380-415, 400-415 |
Power (kW) | 37 |
Power (HP) | 50 |
Max. flow rate (l/min) | 10500 |
Max. head height (m) | 40 |

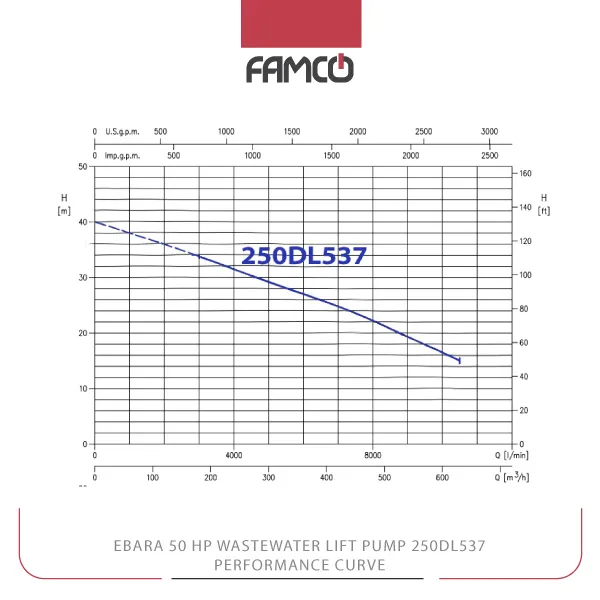

Ebara 50 HP Wastewater Lift Pump 250DL537 Performance Data
l/min | 0 | 2000 | 3000 | 4000 | 5000 | 6000 | 6500 | 7000 | 7500 | 8000 | 8500 | 9000 | 10000 | 10500 |
m³/h | 0 | 120 | 180 | 240 | 300 | 360 | 390 | 420 | 450 | 480 | 510 | 540 | 600 | 630 |
Head (m) | 40 | – | 33.8 | 31.5 | 29.2 | 27 | 25.9 | 24.8 | 23.5 | 22.2 | 20.8 | 19.3 | 15.5 | 15 |
Ebara 50 HP Wastewater Lift Pump 250DL537 Dimensions
Dimensions (mm) | Weight (kg) | |||||||||
A | B | C | D | E | F | H | J | L1 | CL (m) | 522 |
1125 | 660 | 790 | 335 | 590 | 706 | 1475 | 460 | 565 | 10 |
Ebara 50 HP Wastewater Lift Pump 250DL537 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Commercial building drainage systems
- Flood control and drainage projects
Ebara 50 HP Wastewater Lift Pump 250DL537 Benefits
- High flow capacity for large volume handling
- Durable cast iron construction for long-term use
- Effective sealing to prevent leaks and corrosion
- Suitable for solids-laden liquids up to 70 mm
Ebara 50 HP Wastewater Lift Pump 250DL537 Price List
No. | Name | Price |
1 | Ebara 50 HP Wastewater Lift Pump 250DL537 Price | Contact us |
