Ebara 50 HP Wastewater Lift Pump 200DL537

37 kW (50 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Ebara 50 HP Wastewater Lift Pump 200DL537

The presented Ebara sewage pump runs on a three-phase voltage with a maximum immersion depth of 7 meters and up to 43-meter heads. It handles solids up to 70 mm and works well in deep, submerged environments. With a cast-iron body and impeller, it is sturdy and resistant to corrosion. The pump is designed for continuous operation, thanks to its IP68 protection and high-quality seals. It is perfect for municipal or industrial sewage systems that need reliable, high-capacity pumping. Its powerful motor and high flow rate make it suitable for large-scale wastewater management, ensuring efficient and durable performance in demanding conditions.

Related Products

Ebara 50 HP Wastewater Lift Pump 200DL537 Specifications

This sewage pump is designed for handling wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast iron casing and impeller, ensuring longevity and resistance to corrosion. This Ebara sewage pump is equipped with high-quality mechanical seals on both the impeller and motor sides, made from SiC/SiC/NBR and Carbon/Ceramic/NBR, respectively, providing reliable sealing and preventing leaks. The motor has four poles and rotates at 1450 rpm, rated with an insulation class F for safety and durability. Suitable for continuous underwater operation, the provided Ebara submersible pump’s protection degree is IP68. The available Ebara submersible pump runs on a 50 Hz power supply with voltage options between 380-415V and 400-415V. It delivers a maximum flow rate of 7500 liters per minute and can achieve a head height of up to 43 meters, making this Ebara sewage pump ideal for various sewage and wastewater applications. The power output is 37 kW (50 HP), providing strong performance for demanding tasks.

Ebara 50 HP Wastewater Lift Pump 200DL537



Specification Value
Type of liquid sewage
Max. temperature (° C) 40
Max. solids size (mm) 70
Max. immersion depth (m) 7
Casing material cast iron
Impeller cast iron
Mechanical seal on impeller side SiC/SiC/NBR
Mechanical seal on motor side Carbon/Ceramic/NBR
Number of poles 4
Rotation speed (rpm) 1450
Insulation class F
Protection degree IP68
Frequency (Hz) 50
Voltage (V) 380-415, 400-415
Power (kW) 37
Power (HP) 50
Max. flow rate (l/min) 7500
Max. head height (m) 43



Ebara 50 HP Wastewater Lift Pump 200DL537 Performance Data

l/min 0 1000 1500 2000 2500 3000 4000 4500 5000 5500 6000 7000 7500
m³/h 0 60 90 120 150 180 240 270 300 330 360 420 450
Head (m) 43 35.8 34.4 31.1 29.6 28.2 26.5 24.8 21 19.1

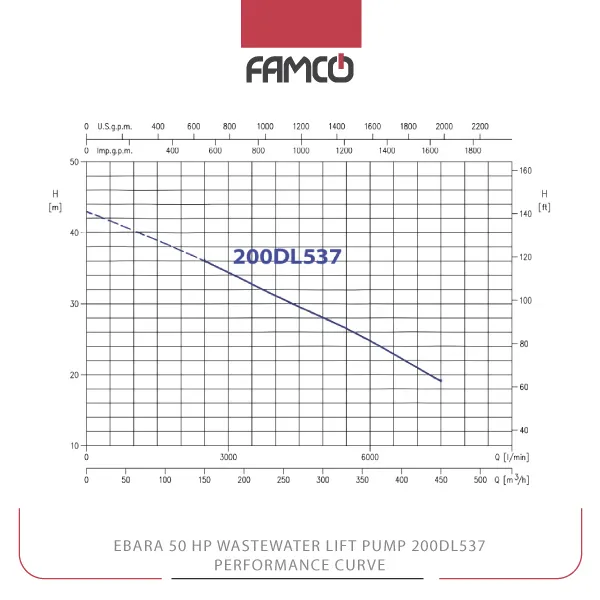

Ebara 50 HP Wastewater Lift Pump 200DL537 Performance Curve



Ebara 50 HP Wastewater Lift Pump 200DL537 Dimensions

Dimensions (mm) Weight (kg)
A B C D E F H J L1 CL (m) 370
937 520 675 262 510 483 1404 360 494 10



Ebara 50 HP Wastewater Lift Pump 200DL537 Dimensions



Ebara 50 HP Wastewater Lift Pump 200DL537 Applications

  • Municipal sewage treatment plants
  • Industrial wastewater management
  • Flood control and drainage systems
  • Large-scale pumping stations



Ebara 50 HP Wastewater Lift Pump 200DL537 Benefits

  • Durable cast iron construction for long-lasting use
  • High flow rate and head height for demanding applications
  • Reliable seals prevent leaks and ensure safety
  • Suitable for continuous underwater operation
