Ebara 50 HP Wastewater Lift Pump 150DL537 Specifications
This sewage pump is designed for handling wastewater with a maximum temperature of 40°C. It features a cast iron casing and impeller for added strength. The pump operates at a rotation speed of 1450 rpm with a four-pole motor, providing reliable performance. It has a protection degree of IP68, making this Ebara submersible pump more than suitable for submersion up to 7 meters deep. The mechanical seals are made of high-quality materials like SiC/SiC/NBR on the impeller side and Carbon/Ceramic/NBR on the motor side, preventing leaks and ensuring longevity. The DL series of Ebara sewage pumps supports a voltage range of 380-415V or 400-415V and a frequency of 50Hz. The power output is 37 kW (50 HP), capable of pumping up to 4200 liters per minute and reaching a maximum head height of 43 meters. This pump is ideal for sewage applications, offering high efficiency and durability in demanding conditions.
| Specification | Value |
| Type of liquid | sewage |
| Max. temperature (°C) | 40 |
| Max. immersion depth (m) | 7 |
| Casing material | cast iron |
| Impeller | cast iron |
| Mechanical seal on impeller side | SiC/SiC/NBR |
| Mechanical seal on motor side | Carbon/Ceramic/NBR |
| Number of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Three-phase voltage (V) | 380-415, 400-415 |
| Power (kW) | 37 |
| Power (HP) | 50 |
| Max. flow rate (l/min) | 4200 |
| Max. head height (m) | 43 |
Ebara 50 HP Wastewater Lift Pump 150DL537 Performance Data
| l/min | 0 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 3200 | 3400 | 3500 | 3600 | 3800 | 4000 | 4200 |
| m³/h | 0 | 60 | 72 | 90 | 120 | 150 | 180 | 192 | 204 | 210 | 216 | 228 | 240 | 252 |
| Head (m) | 43 | – | – | 38.6 | 37 | 35.5 | 34.1 | 33.5 | 32.9 | 32.6 | 32.3 | 31.7 | 31 | 30.2 |

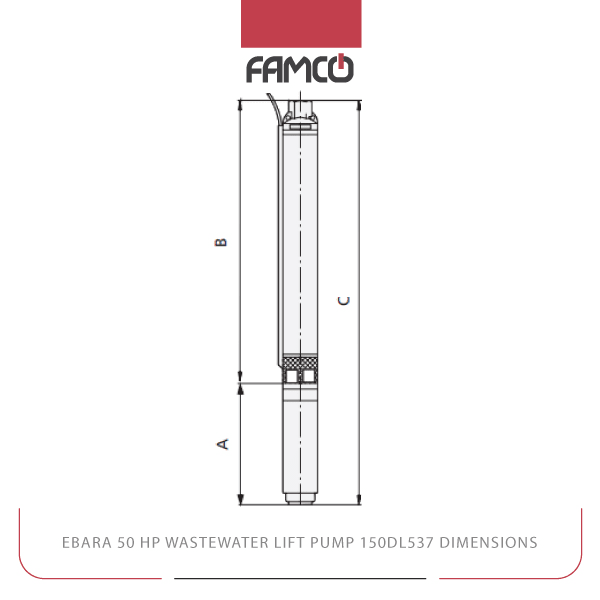

Ebara 50 HP Wastewater Lift Pump 150DL537 Dimensions
| Dimensions (mm) | Weight (kg) | |||||||||
| A | B | C | D | E | F | H | J | L1 | CL (m) | 350 |
| 912 | 520 | 650 | 262 | 510 | 468 | 1404 | 360 | 494 | 10 | |
Ebara 50 HP Wastewater Lift Pump 150DL537 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Drainage systems in large facilities
- Flood control and drainage projects
Ebara 50 HP Wastewater Lift Pump 150DL537 Benefits
- Durable cast iron construction for long-term use
- High flow rate and head height for efficient pumping
- IP68 protection for submersion and tough environments
- Reliable mechanical seals prevent leaks and extend lifespan
Ebara 50 HP Wastewater Lift Pump 150DL537 Price List
| No. | Name | Price |
| 1 | Ebara 50 HP Wastewater Lift Pump 150DL537 Price | Contact us |
