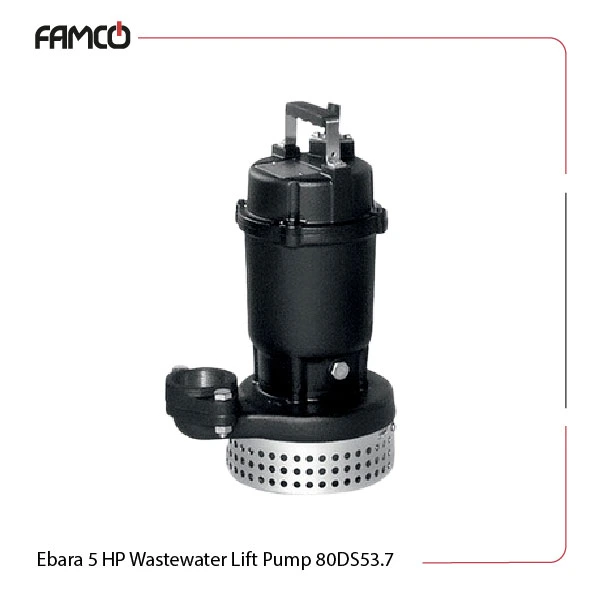

Ebara 5 HP Wastewater Lift Pump 80DS53.7 Specifications
This product has a solid construction and efficient motor to handle various fluids with ease. The pump’s semi-open impeller design delivers optimal performance, even in challenging conditions. This product features a semi-open impeller with a strainer, to help this submersible pump regulate fluid movement. It utilizes an oil-lubricated, single spring double mechanical seal for durability. Constructed from sturdy materials, this Ebara Pump has its impeller, casing, and motor frame provide strength and longevity made from cast iron. As with all sturdy sewage pumps, this product is also designed with high protection degree (of rated IP68), so it works well under submerged applications. Its dimensions and weight (64 kg) make it manageable for installation in various settings. Working in a three-phase mode with a 380-415 Voltage, this submersible Ebara pump is compatible with most present equipment.
| Specification | Value | |
| Motor Type | Three Phase air filled dry submersible | |
| No. Of Poles | 2 | |
| Rotation Speed (rpm) | ~2850 | |
| Insulation class | F | |
| Protection degree | IP 68 | |
| Frequency | 50 | |
| Voltage | 380-415 | |
| Power (KW) | 3.5 | |
| Power (HP) | 5 | |
| Head (m) | 9.9-27.5 | |
| Flange Type | Round | |
| Weight (kg) | 64 | |
| *L.W.L (Low Water Level) | Operation is limited to 10 minutes at L.W.L, Operation is limited to 30 minutes with water level below top of motor | |
Ebara 5 HP Wastewater Lift Pump 80DS53.7 Materials
- Impeller Type: Semi-Open (with Strainer)
- Shaft Seal Type: Oil Lubricated, Single Spring Double Mechanical Seal
- Impeller: cast iron
- Casing: cast iron
- Motor Frame: cast iron
- Shaft: Aisi 403
- Mechanical Seal of Impeller Side: SiC/SiC/NBR
- Mechanical Seal of Motor Side: Carbon/Ceramic/NBR
- Lubricant: Turbine Oil VG32 (SAE 10W/20W)
Ebara 5 HP Wastewater Lift Pump 80DS53.7 Technical Data
| Q (m3/h) | 0 | 250 | 300 | 400 | 433 | 450 | 467 | 473 | 483 | 500 | 550 | 580 | 600 | 700 | 800 |
| Q (l/min) | 0 | 15 | 18 | 24 | 26 | 27 | 28 | 28.4 | 29 | 30 | 33 | 34.8 | 36 | 42 | 48 |
| H (m) | 27.5 | 26.3 | 25.8 | 24.6 | 23.7 | 23.5 | 23.3 | 23.1 | 22.8 | 21.8 | 21.2 | 20.6 | 17.8 | 14.8 | 9.9 |

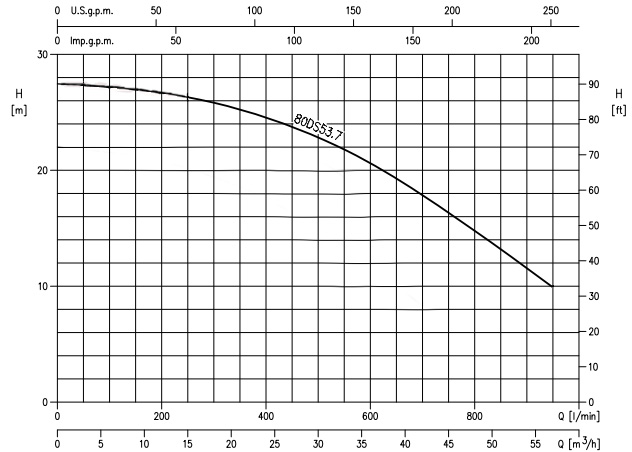

Ebara 5 HP Wastewater Lift Pump 80DS53.7 Performance Curve
Ebara 5 HP Wastewater Lift Pump 80DS53.7 Applications
- Irrigation systems for agriculture
- Drainage in construction sites
- Industrial fluid transfer
- Wastewater management
Ebara 5 HP Wastewater Lift Pump 80DS53.7 Benefits
- Durable cast iron construction for longevity
- Efficient operation with low maintenance needs
- High protection rating for submerged use
- Versatile applications across various industries
Ebara 5 HP Wastewater Lift Pump 80DS53.7 Price List
| No. | Name | Price |
| 1 | Ebara 5 HP Wastewater Lift Pump 80DS53.7 Price | Contact us |
