Ebara 5 HP Wastewater Lift Pump 80DL53.7W/C Specifications
This sewage pump is designed for handling wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C while reaching depths of up to 7 meters. This Ebara sewage pump features a durable cast-iron casing and impeller. It is equipped with high-quality mechanical seals on both the impeller and motor sides, made from SiC/SiC/NBR and Carbon/Ceramic/NBR, respectively, to prevent leaks and withstand harsh conditions. The motor has 4 poles, running at 1450 rpm, with an insulation class of F for safety and durability. It supports a frequency of 50 Hz and voltage options between 380-415V and 400-415V, making this Ebara submersible pump suitable for various power supplies. The pump delivers a maximum flow rate of 1200 liters per minute and can achieve a head height of up to 18.5 meters, making this Ebara submersible pump ideal for wastewater transfer and drainage applications. Its protection degree of IP68 ensures it is dust-tight and waterproof, suitable for continuous operation in submerged conditions.
Specification | Value |
Type of liquid | sewage |
Max. temperature (° C) | 40 |
Max. solids size (mm) | 70 |
Max. immersion depth (m) | 7 |
Casing material | cast iron |
Impeller | cast iron |
Mechanical seal on impeller side | SiC/SiC/NBR |
Mechanical seal on motor side | Carbon/Ceramic/NBR |
Number of poles | 4 |
Rotation speed (rpm) | 1450 |
Insulation class | F |
Protection degree | IP68 |
Frequency (Hz) | 50 |
Voltage (V) | 380-415, 400-415 |
Power (kW) | 3.7 |
Power (HP) | 5 |
Max. flow rate (l/min) | 1200 |
Max. head height (m) | 18.5 |

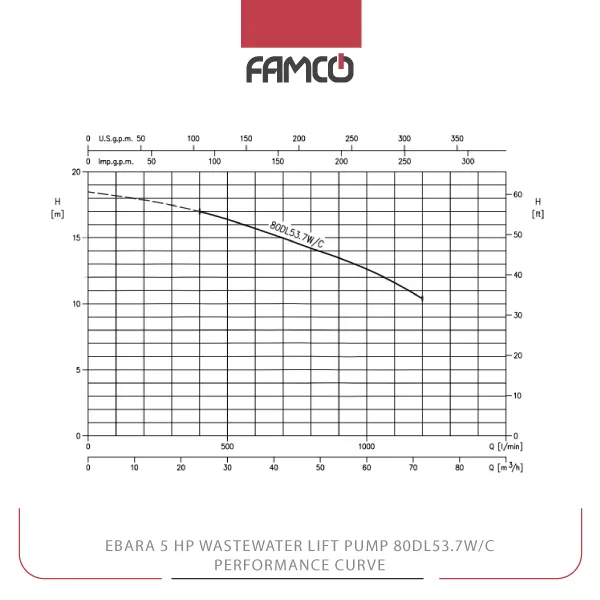

Ebara 5 HP Wastewater Lift Pump 80DL53.7W/C Performance Data
l/min | 0 | 100 | 250 | 300 | 400 | 500 | 700 | 900 | 1000 | 1100 | 1200 |
m³/h | 0 | 6 | 15 | 18 | 24 | 30 | 42 | 54 | 60 | 66 | 72 |
Head (m) | 18.7 | – | – | – | 17 | 16.4 | 14.9 | 13.4 | 12.6 | 11.6 | 10.4 |

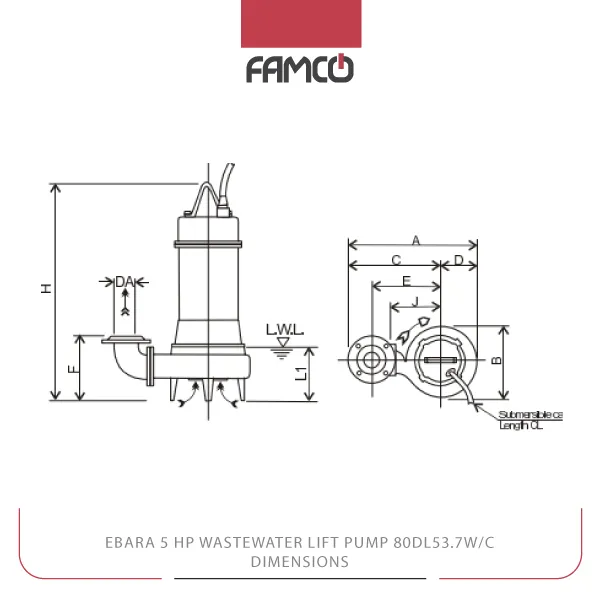

Ebara 5 HP Wastewater Lift Pump 80DL53.7W/C Dimensions
Dimensions (mm) | Weight (kg) | |||||||||
A | B | C | D | E | F | H | J | L1 | CL (m) | 75 |
567 | 328 | 403 | 164 | 310 | 220 | 687 | 235 | 165 | 10 |
Ebara 5 HP Wastewater Lift Pump 80DL53.7W/C Applications
- Municipal sewage treatment plants
- Industrial wastewater transfer
- Drainage systems in construction sites
- Flood control and water management
Ebara 5 HP Wastewater Lift Pump 80DL53.7W/C Benefits
- Durable cast iron construction for long-lasting use
- High flow rate and head height for efficient sewage transfer
- Reliable mechanical seals prevent leaks and damage
- Suitable for submerged operation with IP68 protection
Ebara 5 HP Wastewater Lift Pump 80DL53.7W/C Price List
No. | Name | Price |
1 | Ebara 5 HP Wastewater Lift Pump 80DL53.7W/C Price | Contact us |
