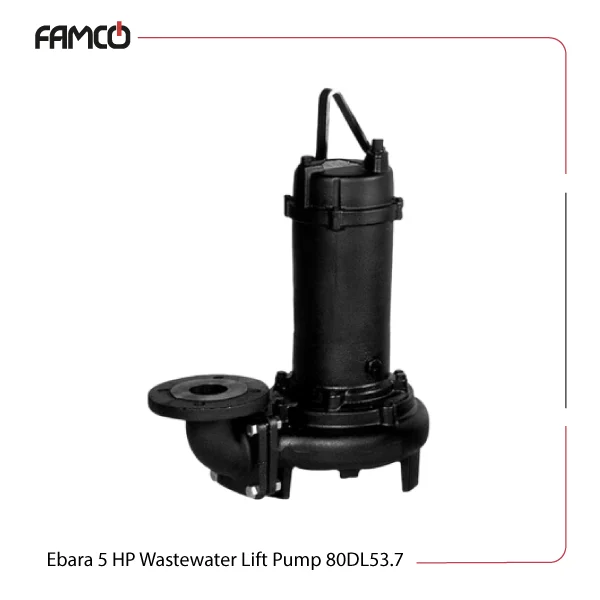

Ebara 5 HP Wastewater Lift Pump 80DL53.7 Specifications
This sewage pump is designed for handling wastewater with solids up to 50mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump runs on a three-phase power supply of 380-415V and features four poles, rotating at approximately 1450 rpm. This Ebara wastewater pump has an insulation class F and an IP68 protection rating, making it suitable for harsh environments. The pump delivers a maximum flow rate of 72 cubic meters per hour and can generate a head between 10.4 and 19.4 meters. Its impellers are made of durable cast iron to increase the product’s resistance to wear. The mechanical seals in this Ebara pump are composed of SiC/SiC/NBR on the impeller side and carbon/ceramic/NBR on the motor side, providing reliable sealing and preventing leaks. This pump is ideal for wastewater management, drainage, and sewage applications, offering top-tier performance and durability in demanding conditions.
| Specification | Value |
| Type of liquid | sewage |
| Max. liquid temperature (°C) | 40 |
| Max. solids size (mm) | 50 |
| Max. immersion depth (m) | 7 |
| Three-phase voltage (V) | 380-415, 400-415 |
| No. of poles | 4 |
| Rotation speed (rpm) | ≈1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Power (kW) | 3.5 |
| Power (HP) | 5 |
| Max. flow rate (m3/h) | 72 |
| Max. head (m) | 10.4-19.4 |
Ebara 5 HP Wastewater Lift Pump 80DL53.7 Materials
- Impellers: cast iron
- Mechanical seal on impeller side: SiC/SiC/NBR
- Mechanical seal on motor side: carbon/ceramic/NBR

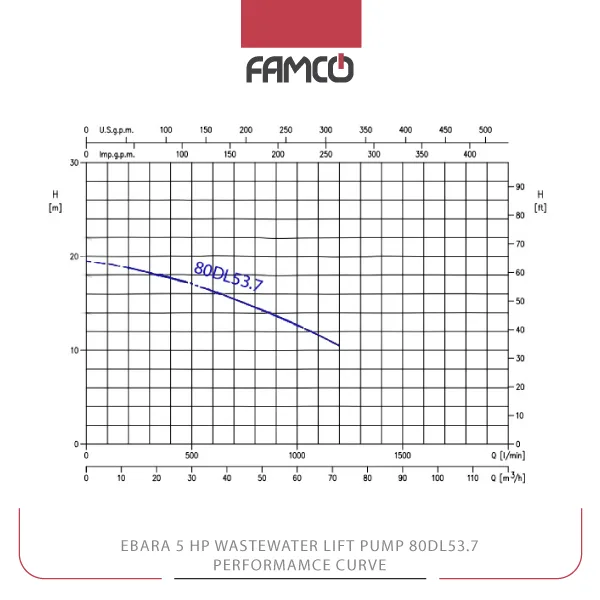

Ebara 5 HP Wastewater Lift Pump 80DL53.7 Performance Data
| l/min | 0 | 70 | 150 | 200 | 400 | 450 | 600 | 800 | 950 | 1000 | 1200 |
| M3/h | 0 | 4 | 9 | 12 | 24 | 27 | 36 | 48 | 57 | 60 | 72 |
| Head (m) | 19.4 | – | – | 18.7 | 17.6 | 17.3 | 16.2 | 14.5 | 13.1 | 12.6 | 10.4 |
Ebara 5 HP Wastewater Lift Pump 80DL53.7 Applications
- Municipal sewage treatment
- Industrial wastewater management
- Drainage systems in construction sites
- Flood control and drainage
Ebara 5 HP Wastewater Lift Pump 80DL53.7 Benefits
- Handles solids up to 50mm for versatile use
- High durability with cast iron impellers
- Reliable sealing system prevents leaks
- Suitable for harsh environments with IP68 protection
Ebara 5 HP Wastewater Lift Pump 80DL53.7 Price List
| No. | Name | Price |
| 1 | Ebara 5 HP Wastewater Lift Pump 80DL53.7 Price | Contact us |
