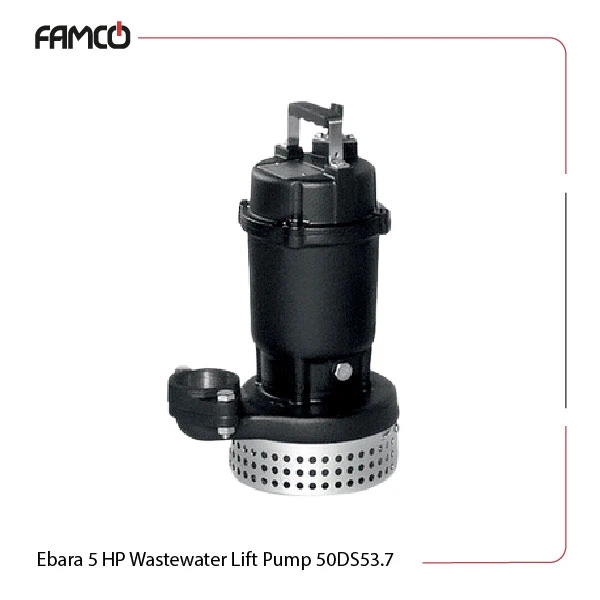

Ebara 5 HP Wastewater Lift Pump 50DS53.7 Specifications
This Ebara pump has a semi-open impeller design with a strainer for efficient fluid movement. The shaft seal is oil lubricated and employs a single spring double mechanical seal for enhanced durability. The construction of the 50DS53.7 submersible pump includes a solid cast iron impeller, casing, and motor frame, together giving it strength and longevity. The shaft is made from Aisi 403, while the mechanical seals utilize high-quality materials like SiC and ceramic for reliable performance. It has an insulation class of F and a protection degree of IP 68 which is suitable for various challenging environments. This sewage pump operates efficiently at a voltage range of 380-415V and can achieve a head of 18.6 to 37.4 meters based on usage pattern and setup. Every feature of this pump caters to making it manageable for easier installation and maintenance.
| Specification | Value | |
| Motor Type | Three Phase air filled dry submersible | |
| No. Of Poles | 2 | |
| Rotation Speed (rpm) | ~2850 | |
| Insulation Class | F | |
| Protection Degree | IP 68 | |
| Frequency | 50 | |
| Voltage | 380-415 | |
| Power (KW) | 3.7 | |
| Power (HP) | 5 | |
| Head (m) | 18.6-37.4 | |
| Flange Type | Round | |
| Weight (kg) | 61 | |
| *L.W.L (Low Water Level) | Operation is limited to 10 minutes at L.W.L, Operation is limited to 30 minutes with water level below top of motor | |
Ebara 5 HP Wastewater Lift Pump 50DS53.7 Materials
- Impeller Type: Semi-Open (with Strainer)
- Shaft Seal Type: Oil Lubricated, Single Spring Double Mechanical Seal
- Impeller: cast iron
- Casing: cast iron
- Motor Frame: cast iron
- Shaft: Aisi 403
- Mechanical Seal of Impeller Side: SiC/SiC/NBR
- Mechanical Seal of Motor Side: Carbon/Ceramic/NBR
- Lubricant: Turbine Oil VG32 (SAE 10W/20W)
Ebara 5 HP Wastewater Lift Pump 50DS53.7 Technical Data
| Q (m3/h) | 0 | 150 | 200 | 250 | 300 | 400 | 433 | 450 | 467 | 473 | 483 | 500 | 550 | 580 | 600 |
| Q (l/min) | 0 | 9 | 12 | 15 | 18 | 24 | 26 | 27 | 28 | 28.4 | 29 | 30 | 33 | 34.8 | 36 |
| H (m) | 37.4 | 35.3 | 34.2 | 32.9 | 31.4 | 27.7 | 26.4 | 25.7 | 25 | 24.6 | 24.2 | 23.5 | 21.1 | 19.5 | 18.6 |

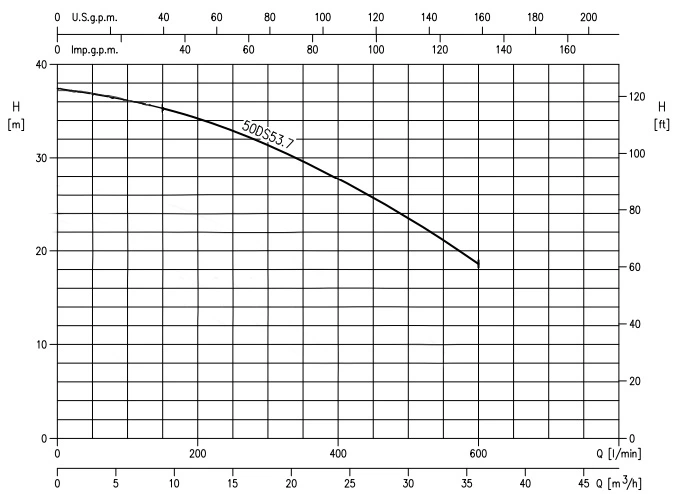

Ebara 5 HP Wastewater Lift Pump 50DS53.7 Performance Curve
Ebara 5 HP Wastewater Lift Pump 50DS53.7 Applications
- Wastewater management
- Industrial fluid transfer
- Agricultural irrigation systems
- Construction site dewatering
Ebara 5 HP Wastewater Lift Pump 50DS53.7 Benefits
- Durable cast iron construction for long-lasting use
- High efficiency with semi-open impeller design
- Versatile discharge options for various applications
- Reliable operation in challenging environments with IP 68 protection
Ebara 5 HP Wastewater Lift Pump 50DS53.7 Price List
| No. | Name | Price |
| 1 | Ebara 5 HP Wastewater Lift Pump 50DS53.7 Price | Contact us |
