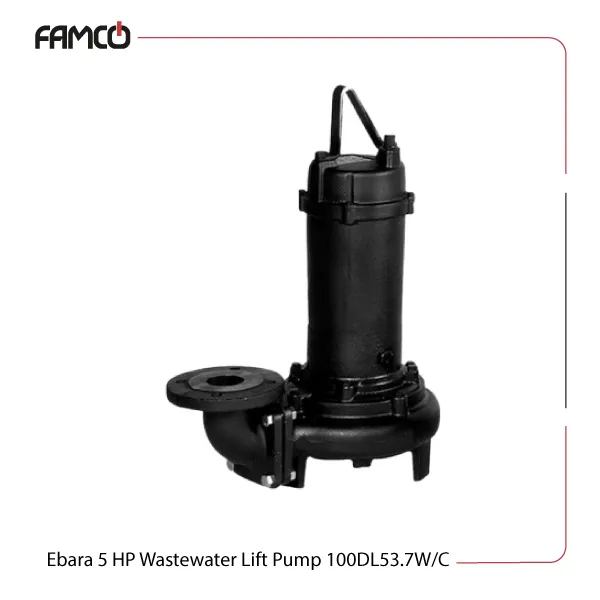

Ebara 5 HP Wastewater Lift Pump 100DL53.7W/C Specifications
This sewage pump is designed for handling wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast iron casing and impeller, ensuring longevity and resistance to corrosion. To prevent leaks and maintain performance, this pump is equipped with high-quality mechanical seals on both the impeller and motor sides, using SiC/SiC/NBR and Carbon/Ceramic/NBR materials. The motor has four poles, running at 1450 rpm, with an insulation class of F for safety and durability. This Ebara submersible pump has the advantage of an IP68 protection degree, making it suitable for continuous submersion in wet environments. The pump operates on a 50 Hz frequency and supports voltages between 380-415V, specifically 400-415V. It delivers a maximum flow rate of 2000 liters per minute and can achieve a head height of up to 16.1 meters. With a power output of 3.7 kW (5 HP), this Ebara sewage pump has it all to provide reliable and efficient performance for demanding tasks in industrial or municipal settings.
Specification | Value |
Type of liquid | sewage |
Max. temperature (°C) | 40 |
Max. solids size (mm) | 70 |
Max. immersion depth (m) | 7 |
Casing material | cast iron |
Impeller | cast iron |
Mechanical seal on impeller side | SiC/SiC/NBR |
Mechanical seal on motor side | Carbon/Ceramic/NBR |
Number of poles | 4 |
Rotation speed (rpm) | 1450 |
Insulation class | F |
Protection degree | IP68 |
Frequency (Hz) | 50 |
Voltage (V) | 380-415, 400-415 |
Power (kW) | 3.7 |
Power (HP) | 5 |
Max. flow rate (l/min) | 2000 |
Max. head height (m) | 16.1 |

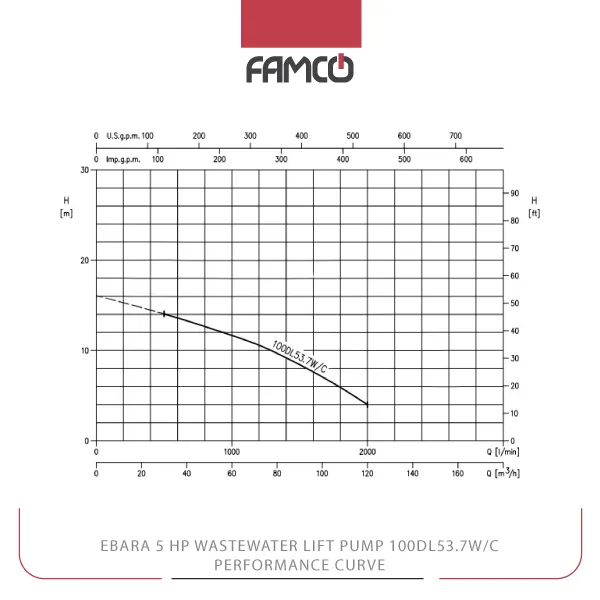

Ebara 5 HP Wastewater Lift Pump 100DL53.7W/C Performance Data
l/min | 0 | 100 | 250 | 300 | 400 | 500 | 700 | 900 | 1000 | 1100 | 1200 | 1400 | 1600 | 2000 |
m³/h | 0 | 6 | 15 | 18 | 24 | 30 | 42 | 54 | 60 | 66 | 72 | 84 | 96 | 120 |
Head (m) | 16.1 | – | – | – | – | 14.1 | 13.1 | 12.2 | 11.7 | 11.2 | 10.6 | 9.2 | 7.6 | 4.0 |

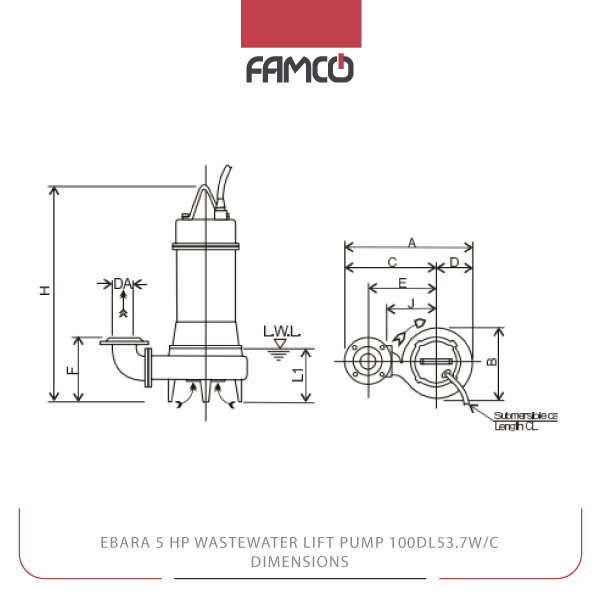

Ebara 5 HP Wastewater Lift Pump 100DL53.7W/C Dimensions
Dimensions (mm) | Weight (kg) | |||||||||
A | B | C | D | E | F | H | J | L1 | CL (m) | 79 |
614 | 335 | 445 | 169 | 340 | 250 | 706 | 235 | 185 | 10 |
Ebara 5 HP Wastewater Lift Pump 100DL53.7W/C Applications
- Sewage and wastewater management
- Drainage in industrial facilities
- Municipal sewage systems
- Flood control and drainage projects
Ebara 5 HP Wastewater Lift Pump 100DL53.7W/C Benefits
- Durable cast iron construction for long-lasting use
- High solids handling capacity up to 70 mm
- Reliable mechanical seals prevent leaks
- Suitable for continuous submersion and tough environments
Ebara 5 HP Wastewater Lift Pump 100DL53.7W/C Price List
No. | Name | Price |
1 | Ebara 5 HP Wastewater Lift Pump 100DL53.7W/C Price | Contact us |
