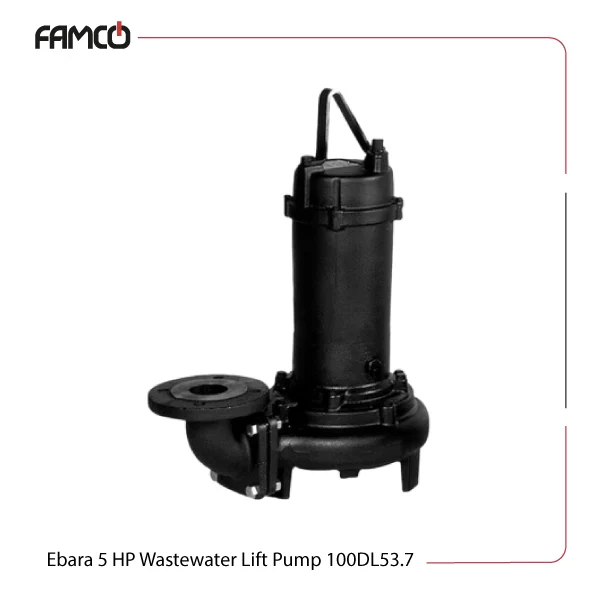

Ebara 5 HP Wastewater Lift Pump 100DL53.7

3.7 kW (5 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Sewage pump Tags: Ebara Sewage Pumps, Ebara Submersible Pump

Overview of Ebara 5 HP Wastewater Lift Pump 100DL53.7

As a combination of power and utility, the 100DL53.7 is a 5 HP (3.7 kW) sewage pump that passes up to 60 mm solids. It is designed for heavy-duty use in environments where handling sewage is necessary. A maximum temperature of 40°C and a maximum immersion depth of 7 meters have made this product suitable for various installation scenarios. The pump features a motor operating at 1450 rpm, which delivers an efficient 1900 l/min flow and 16-meter lift head capacity. Its cast iron impellers are built to withstand corrosion and wear. The pump’s high protection degree (IP68) and insulation class F provide safety and durability in challenging conditions. It is equipped with high-quality mechanical seals to prevent leaks, ensuring smooth and reliable operation. Whether used in municipal sewage systems, industrial waste management, or commercial drainage, this pump offers excellent performance, high flow rates, and significant head capabilities.

Ebara 5 HP Wastewater Lift Pump 100DL53.7 Specifications

This sewage pump handles wastewater with solids up to 60 mm in diameter. This collection, produced by Ebara, famously withstands a maximum temperature of 40°C even when submerged up to 7 meters. The pump is three-phase configured with a power supply of 380-415V and a frequency of 50Hz, featuring a 4-pole motor rotating at approximately 1450 rpm. It has an insulation class F and an IP68 protection degree, suitable for harsh environments. The pump’s impellers are made of durable, corrosion-resistant cast iron. Equipped with high-quality mechanical seals on both the impeller and motor sides, this Ebara sewage pump has SiC/SiC/NBR and carbon/ceramic/NBR sealing materials, respectively, to prevent leaks and ensure smooth operation. The pump can deliver a maximum flow rate of 114 cubic meters per hour and lift water to 16 meters, with a typical head range of 5.0 to 16.0 meters.

Specification	Value
Type of liquid	sewage
Max. liquid temperature (°C)	40
Max. solids size (mm)	60
Max. immersion depth (m)	7
Three-phase voltage (V)	380-415, 400-415
No. of poles	4
Rotation speed (rpm)	1450
Insulation class	F
Protection degree	IP68
Frequency (Hz)	50
Power (kW)	3.7
Power (HP)	5
Max. flow rate (m3/h)	114
Max. head (m)	5.0-16.0

Ebara 5 HP Wastewater Lift Pump 100DL53.7 Materials

Impellers: cast iron
Mechanical seal on impeller side: SiC/SiC/NBR
Mechanical seal on motor side: carbon/ceramic/NBR

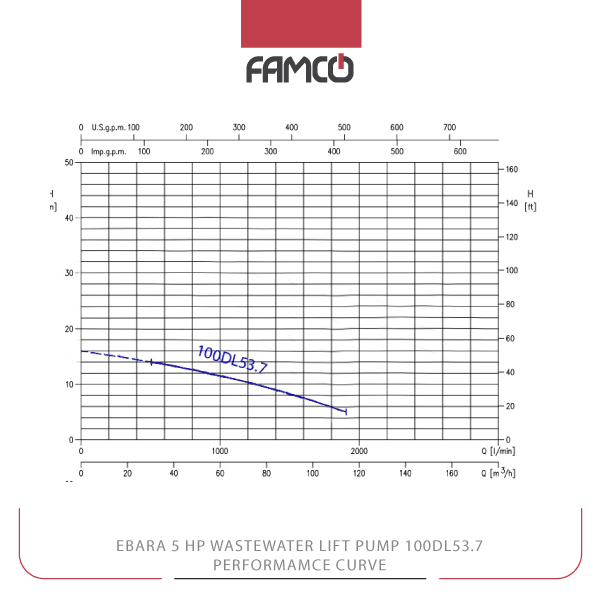

Ebara 5 HP Wastewater Lift Pump 100DL53.7 Performance Data

l/min	0	400	500	600	800	1200	1500	1600	1800	1900
M3/h	0	24	30	36	48	72	90	96	108	114
Head (m)	16.0	–	14.1	13.6	12.6	10.3	8.3	7.5	5.9	5.0

Ebara 5 HP Wastewater Lift Pump 100DL53.7 Applications

Municipal sewage treatment plants
Industrial wastewater management
Commercial drainage systems
Flood control and water removal

Ebara 5 HP Wastewater Lift Pump 100DL53.7 Benefits

High durability with cast iron impellers
Reliable performance with high protection degree IP68
Efficient handling of solids up to 60 mm
Suitable for harsh environments with high insulation standards

Ebara 5 HP Wastewater Lift Pump 100DL53.7 Price List

No.	Name	Price
1	Ebara 5 HP Wastewater Lift Pump 100DL53.7 Price	Contact us

Brand	Ebara
Maximum Liquid Temperature (°C)	40
Maximum immersion depth (m)	7
Voltage (V)	380-415, 400-415
Number of Poles	4
Speed (RPM)	1450
Insulation Class	F
Degree of Protection	IP68
Frequency (Hz)	50
Power (kW)	3.7
Power (HP)	5
Maximum Flow Rate (m3/h)	114
Maximum Delivery Head (m)	16
