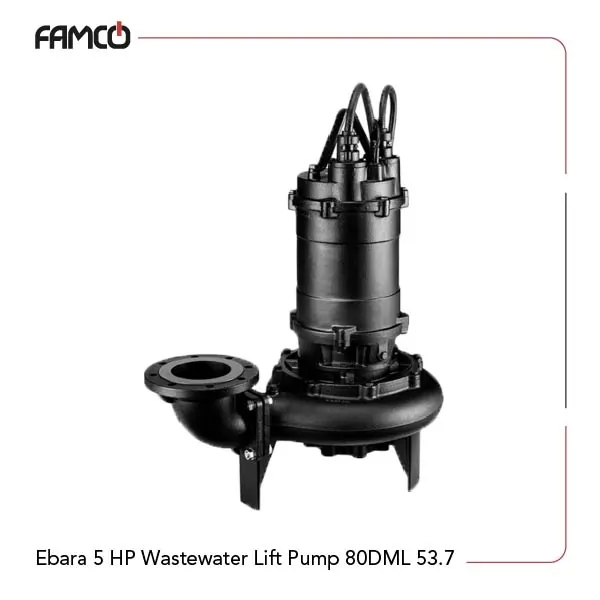

Ebara 5 HP Wastewater Lift Pump 80DML 53.7 Specifications
Ebara 5 HP wastewater lift pump 80DML53.7 is designed to handle wastewater with a maximum temperature of 40°C. It can pass solids up to 76mm in size. This series of Ebara pumps operates at a rotation speed of approximately 1450 rpm and is powered by a three-phase voltage of 380-415V. It features a robust cast iron impeller for durability and efficiency. This Ebara sewage pump has an insulation class F and an IP68 protection degree, ensuring it is well-protected against dust and water ingress. It can be submerged up to 7 meters deep and has a maximum flow rate of 96 cubic meters per hour. The maximum head ranges from 7.9 to 17.9 meters, depending on the operating conditions. The mechanical seals are made of SiC/SiC/NBR on the impeller side and carbon/ceramic/NBR on the motor side, providing reliable sealing and long service life.
| Specification | Value |
| Type of liquid | sewage |
| Max. liquid temperature (°C) | 40 |
| Max. solids size (mm) | 76 |
| Max. immersion depth (m) | 7 |
| Three-phase voltage (V) | 380-415 |
| No. of poles | 4 |
| Rotation speed (rpm) | ≈1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Power (kW) | 3.7 |
| Power (HP) | 5 |
| Max. flow rate (m3/h) | 96 |
| Max. head (m) | 7.9-17.9 |
Ebara 5 HP Wastewater Lift Pump 80DML53.7 Materials
- Impellers: cast iron
- Mechanical seal on impeller side: SiC/SiC/NBR
- Mechanical seal on motor side: carbon/ceramic/NBR
Ebara 5 HP Wastewater Lift Pump 80DML53.7 Technical Data
| l/min | 0 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 |
| M3/h | 0 | 12 | 24 | 36 | 48 | 60 | 72 | 84 | 96 |
| Head (m) | 17.9 | 15.8 | 14.2 | 12.8 | 11.7 | 10.7 | 9.7 | 8.8 | 7.9 |

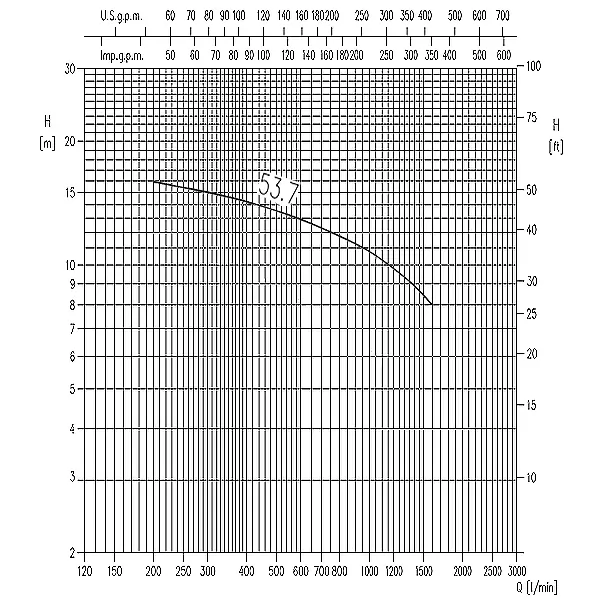

Ebara 5 HP Wastewater Lift Pump 80DML53.7 Performance Curve
Ebara 5 HP Wastewater Lift Pump 80DML53.7 Applications
- Municipal sewage treatment
- Industrial wastewater management
- Drainage systems in construction sites
- Flood control and water removal
Ebara 5 HP Wastewater Lift Pump 80DML53.7 Benefits
- Handles solids up to 76mm for versatile use
- Durable cast iron impeller for long-lasting performance
- High protection degree IP68 for submerged operation
- Efficient flow rate of 96 m3/h with high head capacity
Ebara 5 HP Wastewater Lift Pump 80DML53.7 Price List
| No. | Name | Price |
| 1 | Ebara 5 HP Wastewater Lift Pump 80DML53.7 Price | Contact us |
There are no reviews yet.
