Ebara 40 HP Wastewater Lift Pump 300DL530

22 kW (40 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Ebara 40 HP Wastewater Lift Pump 300DL530

Let’s discover the 40 HP Ebara sewage pump, capable of hitting 36-meter heads and maintaining 660 m³/h flow rates. It is perfect for pumping sewage with solids, thanks to its strong cast iron construction. The pump can operate submerged up to 7 meters and handle temperatures up to 40°C. Its high flow rate and head height make it suitable for large-scale applications like municipal sewage systems, industrial drainage, and wastewater treatment plants. The design emphasizes durability, safety, and efficiency, giving it all the strength it needs to stay operational even in the toughest of tasks. Its IP68 protection rating guarantees resistance to dust and water, while the mechanical seals prevent leaks. Overall, this pump offers a reliable solution for managing sewage and wastewater in various settings.

Related Products

Ebara 40 HP Wastewater Lift Pump 300DL530 Specifications

This sewage pump is designed for handling wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast iron casing and impeller, making it a suitable product from the presented Ebara sewage pump that handles tough environments. It is equipped with mechanical seals on both the impeller and motor sides (see the table below for exact specs). The motor has 4 poles, running at 1450 rpm, with an insulation class F for safety and efficiency. Its protection degree is IP68, meaning it is fully protected against dust and water ingress. The pump operates on a standard 50 Hz frequency and a three-phase voltage range (of 380-415V), making this Ebara submersible pump compatible with standard power supplies. With a power output of 30 kW (40 HP), it can deliver a maximum flow rate of 11,000 liters per minute and achieve a head height of up to 36 meters, making it suitable for various sewage and wastewater applications. Its robust construction and high performance make it ideal for industrial, municipal, and large-scale drainage systems, where reliable and efficient sewage pumping is essential.

Ebara 40 HP Wastewater Lift Pump 300DL530



Specification Value
Type of liquid sewage
Max. temperature (°C) 40
Max. solids size (mm) 70
Max. immersion depth (m) 7
Casing material cast iron
Impeller cast iron
Mechanical seal on impeller side SiC/SiC/NBR
Mechanical seal on motor side Carbon/Ceramic/NBR
Number of poles 4
Rotation speed (rpm) 1450
Insulation class F
Protection degree IP68
Frequency (Hz) 50
Voltage (V) 380-415, 400-415
Power (kW) 30
Power (HP) 40
Max. flow rate (l/min) 11000
Max. head height (m) 36



Ebara 40 HP Wastewater Lift Pump 300DL530 Performance Data

l/min 0 3000 4000 5000 6000 7000 8000 9000 10000 11000
m³/h 0 180 240 300 360 420 480 540 600 660
Head (m) 36 26.5 24.4 22 19.3 16.3 13.1 10 7.5

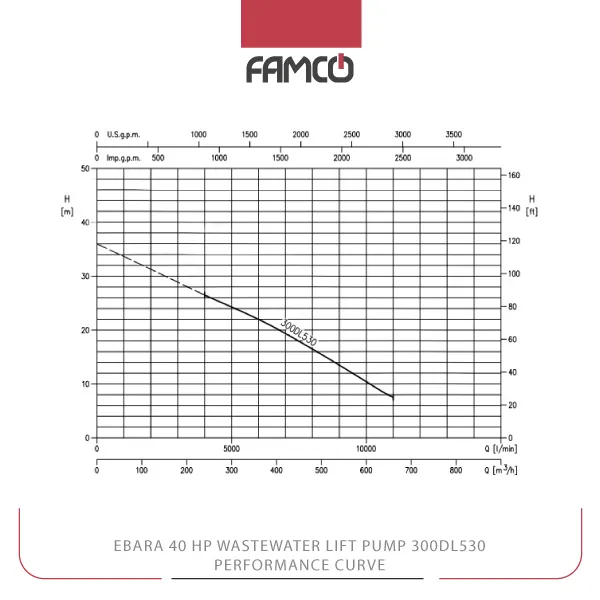

Ebara 40 HP Wastewater Lift Pump 300DL530 Performance Curve



Ebara 40 HP Wastewater Lift Pump 300DL530 Dimensions

Dimensions (mm) Weight (kg)
A B C D E F H J L1 CL (m) 458
1172 660 838 335 615 726 1336 460 538 10



Ebara 40 HP Wastewater Lift Pump 300DL530 Dimensions



Ebara 40 HP Wastewater Lift Pump 300DL530 Applications

  • Municipal sewage treatment plants
  • Industrial wastewater management
  • Large-scale drainage systems
  • Construction site sewage removal



Ebara 40 HP Wastewater Lift Pump 300DL530 Benefits

  • High flow capacity for large volumes of sewage
  • Durable cast iron construction for tough environments
  • Reliable mechanical seals for leak prevention
  • Suitable for submerged operation up to 7 meters
