Ebara 40 HP Wastewater Lift Pump 250DL530

22 kW (40 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Ebara 40 HP Wastewater Lift Pump 250DL530

This is a 40 HP Ebara sewage pump with cast iron construction. The pump is ideal for applications like sewage treatment plants, drainage systems, and industrial waste management. It offers a high 10000 liters per minute flow rate and a significant 36-meter head height. The design ensures safety, efficiency, and longevity, even in tough environments. Its high protection level and quality seals prevent leaks and damage, ensuring continuous operation. Overall, this pump is a powerful solution for managing challenging sewage and wastewater tasks in various industries.

Related Products

Ebara 40 HP Wastewater Lift Pump 250DL530 Specifications

As a 40 HP wastewater Ebara pump, the 250DL530 operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. It supports a frequency of 50 Hz and voltage options between 380-415V and 400-415V. The pump delivers a maximum flow rate of 10,000 liters per minute and can generate a head height of up to 36 meters, making it suitable for various sewage and wastewater applications. Its protection degree of IP68 ensures this Ebara submersible pump is fully protected against dust and water ingress, ideal for outdoor or submerged installations. The power output of this Ebara sewage pump is 30 kW (equivalent to 40 HP), providing consistent performance for demanding pumping tasks. The pump features a durable cast-iron casing and impeller, ensuring long-lasting performance in tough environments. It is equipped with high-quality mechanical seals on both the impeller and motor sides, made from SiC/SiC/NBR and Carbon/Ceramic/NBR, respectively, to prevent leaks and withstand harsh conditions. The motor has 4 poles, running at 1450 rpm, with an insulation class of F for safety and durability.

Ebara 40 HP Wastewater Lift Pump 250DL530



Specification Value
Type of liquid sewage
Max. temperature (°C) 40
Max. solids size (mm) 70
Max. immersion depth (m) 7
Casing material cast iron
Impeller cast iron
Mechanical seal on impeller side SiC/SiC/NBR
Mechanical seal on motor side Carbon/Ceramic/NBR
Number of poles 4
Rotation speed (rpm) 1450
Insulation class F
Protection degree IP68
Frequency (Hz) 50
Voltage (V) 380-415, 400-415
Power (kW) 30
Power (HP) 40
Max. flow rate (l/min) 10000
Max. head height (m) 600



Ebara 40 HP Wastewater Lift Pump 250DL530 Performance Data

l/min 0 2000 3000 4000 5000 6000 6500 7000 7500 8000 8500 9000 10000
m³/h 0 120 180 240 300 360 390 420 450 480 510 540 600
Head (m) 36 28.2 26.2 24 22 20.9 19.7 18 17 15.6 14 10

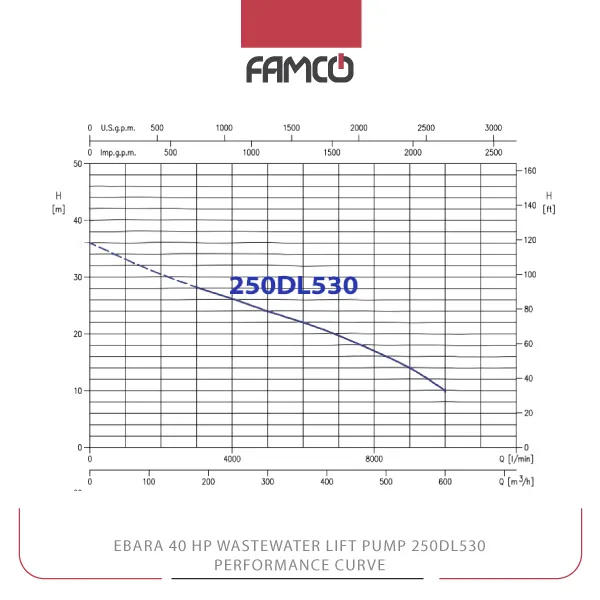

Ebara 40 HP Wastewater Lift Pump 250DL530 Performance Curve



Ebara 40 HP Wastewater Lift Pump 250DL530 Dimensions

Dimensions (mm) Weight (kg)
A B C D E F H J L1 CL (m) 458
1125 660 790 335 590 706 1336 460 538 10



Ebara 40 HP Wastewater Lift Pump 250DL530 Dimensions



Ebara 40 HP Wastewater Lift Pump 250DL530 Applications

  • Sewage treatment plants
  • Industrial wastewater management
  • Drainage systems in construction sites
  • Municipal sewage systems



Ebara 40 HP Wastewater Lift Pump 250DL530 Benefits

  • High durability with cast iron construction
  • Efficient handling of solids up to 70 mm
  • Robust mechanical seals for leak prevention
  • High flow rate and head height for versatile use



Ebara 40 HP Wastewater Lift Pump 250DL530 Price List

No. Name Price
1 Ebara 40 HP Wastewater Lift Pump 250DL530 Price Contact us
Brand

Maximum Liquid Temperature (°C)

Maximum immersion depth (m)

Impeller Material

Number of Poles

Speed (RPM)

Degree of Protection

Frequency (Hz)

Voltage (V)

Power (kW)

Power (HP)

Maximum Flow Rate (L/min)

Maximum Delivery Head (m)
