Ebara 40 HP Wastewater Lift Pump 200DL530

15 kW (40 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Ebara 40 HP Wastewater Lift Pump 200DL530

This 40 HP sewage pump is specifically built for the toughest of wastewater management tasks. Its IP68 protection ensures it can operate underwater without issues. The motor is designed for reliability, with a four-pole setup running at 1450 rpm. This Ebara sewage pump is perfect for sewage systems, wastewater treatment, and industrial drainage. The pump’s cast-iron body and impeller contribute to its sturdiness and durability. It can handle liquids at temperatures up to 40°C and solids up to 70 mm. With a high flow rate and 39.7-meter head height, it is suitable for large-scale applications.

Related Products

Ebara 40 HP Wastewater Lift Pump 200DL530 Specifications

This sewage pump is designed for handling dirty liquids with solids up to 70 mm in size. It operates at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The available Ebara submersible pump features a durable cast-iron casing and impeller. The 200DL530 Ebara sewage pump uses high-quality mechanical seals on both the impeller and motor sides, with materials like SiC, ceramic, carbon, and NBR, to prevent leaks and withstand harsh conditions. The motor has four poles, running at 1450 rpm, with an insulation class F for safety and efficiency. It is protected by an IP68 rating, making it suitable for underwater applications. The pump runs on a 50 Hz power supply with voltage options of 380-415V or 400-415V. It delivers a maximum flow rate of 7000 liters per minute and can achieve a head height of nearly 40 meters, which is impressive coming from an Ebara wastrewater pump with this much power and potential. Its construction only amplifies its high performance, making it suitable for continuous operation in demanding environments.

Ebara 40 HP Wastewater Lift Pump 200DL530



Specification Value
Type of liquid sewage
Max. temperature (° C) 40
Max. solids size (mm) 70
Max. immersion depth (m) 7
Casing material cast iron
Impeller cast iron
Mechanical seal on impeller side SiC/SiC/NBR
Mechanical seal on motor side Carbon/Ceramic/NBR
Number of poles 4
Rotation speed (rpm) 1450
Insulation class F
Protection degree IP68
Frequency (Hz) 50
Voltage (V) 380-415, 400-415
Power (kW) 30
Power (HP) 40
Max. flow rate (l/min) 7000
Max. head height (m) 39.7



Ebara 40 HP Wastewater Lift Pump 200DL530 Performance Data

l/min 0 1000 1500 2000 2500 3000 4000 4500 5000 5500 6000 7000
m³/h 0 60 90 120 150 180 240 270 300 330 360 420
Head (m) 39.7 32.2 30.6 27.6 25.9 24.2 22.5 20.7 16.7

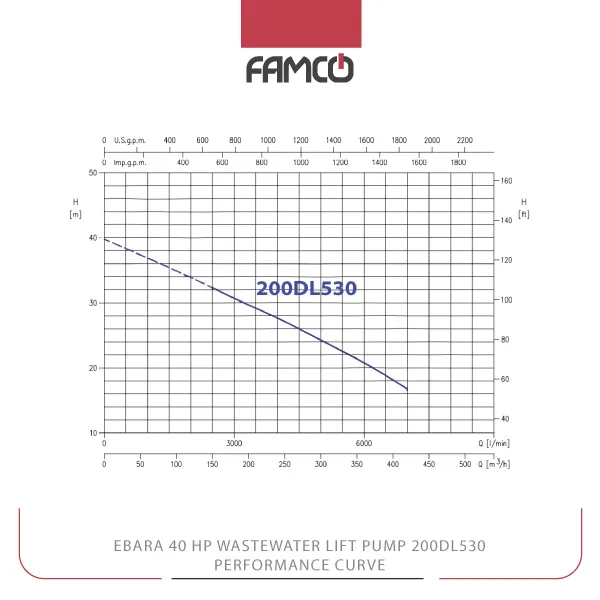

Ebara 40 HP Wastewater Lift Pump 200DL530 Performance Curve

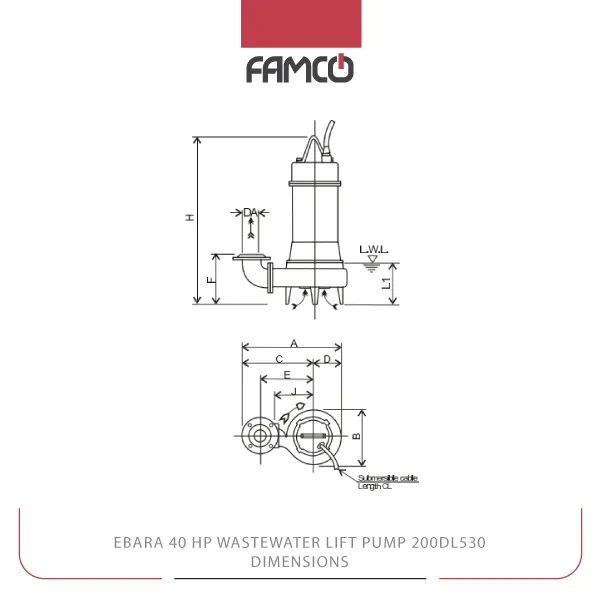

Ebara 40 HP Wastewater Lift Pump 200DL530 Dimensions

Dimensions (mm) Weight (kg)
A B C D E F H J L1 CL (m) 350
937 520 675 262 510 483 1284 360 486 10



Ebara 40 HP Wastewater Lift Pump 200DL530 Dimensions



Ebara 40 HP Wastewater Lift Pump 200DL530 Applications

  • Municipal sewage treatment plants
  • Industrial wastewater management
  • Building drainage systems
  • Flood control and drainage projects



Ebara 40 HP Wastewater Lift Pump 200DL530 Benefits

  • High durability with cast iron construction
  • Efficient handling of solids up to 70 mm
  • Reliable operation with IP68 protection
  • Powerful flow rate of 7000 l/min for large-scale needs



Ebara 40 HP Wastewater Lift Pump 200DL530 Price List

No. Name Price
1 Ebara 40 HP Wastewater Lift Pump 200DL530 Price Contact us
Brand

Maximum Liquid Temperature (°C)

Maximum immersion depth (m)

Impeller Material

Number of Poles

Speed (RPM)

Insulation Class

Degree of Protection

Frequency (Hz)

Voltage (V)

Power (kW)

Power (HP)

Maximum Flow Rate (L/min)

Maximum Delivery Head (m)
