Ebara 40 HP Wastewater Lift Pump 150DL530 Specifications
This sewage pump is designed for handling wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast iron casing and impeller, ensuring longevity and resistance to harsh environments. The DL collection of Ebara submersible pumps are each equipped with high-quality mechanical seals on both the impeller and motor sides, and this one has SiC/SiC/NBR and Carbon/Ceramic/NBR respectively, helping prevent leaks. The motor has four poles, rotating at 1450 rpm, and is rated with an insulation class F for safety and durability. Its protection degree is IP68, making this Ebara wastewater pump fully protected against dust and water ingress. The pump operates on a 50 Hz frequency and supports voltages between 380-415V and 400-415V. With a power output of 30 kW (equivalent to 40 HP), it can deliver a maximum flow rate of 4000 liters per minute and achieve a head height of up to 39 meters, making it suitable for various sewage and wastewater applications.
| Specification | Value |
| Type of liquid | sewage |
| Max. temperature (° C) | 40 |
| Max. solids size (mm) | 70 |
| Max. immersion depth (m) | 7 |
| Casing material | cast iron |
| Impeller | cast iron |
| Mechanical seal on impeller side | SiC/SiC/NBR |
| Mechanical seal on motor side | Carbon/Ceramic/NBR |
| Number of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Voltage (V) | 380-415, 400-415 |
| Power (kW) | 30 |
| Power (HP) | 40 |
| Max. flow rate (l/min) | 4000 |
| Max. head height (m) | 39 |

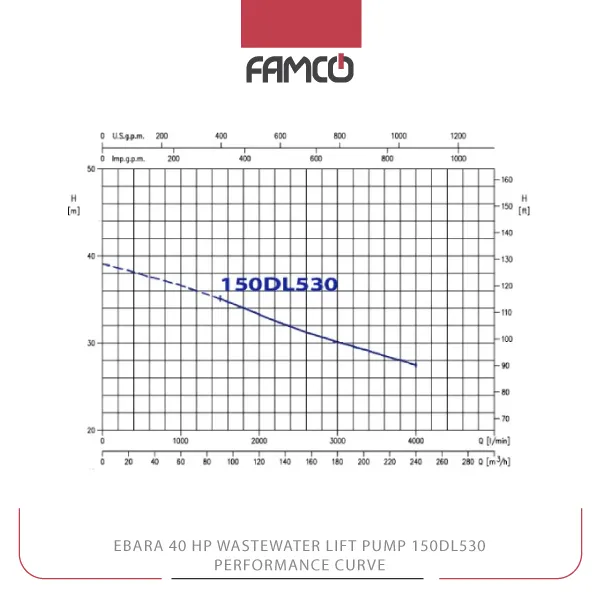

Ebara 40 HP Wastewater Lift Pump 150DL530 Performance Data
| l/min | 0 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 3200 | 3400 | 3500 | 3600 | 3800 | 4000 |
| m³/h | 0 | 60 | 72 | 90 | 120 | 150 | 180 | 192 | 204 | 210 | 216 | 228 | 240 |
| Head (m) | 39 | – | – | 35 | 33.2 | 31.5 | 29.9 | 29.3 | 28.8 | 28.5 | 28.3 | 27.8 | 27.4 |
Ebara 40 HP Wastewater Lift Pump 150DL530 Dimensions
| Dimensions (mm) | Weight (kg) | |||||||||
| A | B | C | D | E | F | H | J | L1 | CL (m) | 350 |
| 912 | 520 | 650 | 262 | 510 | 468 | 1284 | 360 | 466 | 10 | |
Ebara 40 HP Wastewater Lift Pump 150DL530 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Commercial building drainage systems
- Flood control and drainage projects
Ebara 40 HP Wastewater Lift Pump 150DL530 Benefits
-
- High durability with cast iron casing and impeller
- Reliable sealing with advanced mechanical seals
- Capable of handling solids up to 70 mm
- Efficient operation with high flow rate and head height
Ebara 40 HP Wastewater Lift Pump 150DL530 Price List
| No. | Name | Price |
| 1 | Ebara 40 HP Wastewater Lift Pump 150DL530 Price | Contact us |
