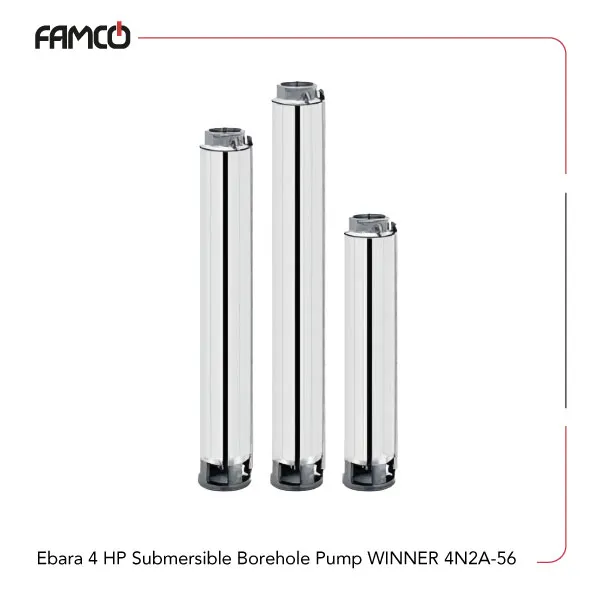

Ebara 4 HP Submersible Borehole Pump WINNER 4N2A-56 Specifications
Ebara submersible borehole pump WINNER 4N2A-56 delivers a power output of 3 kW (4 HP), making it suitable for a wide range of demanding applications. It supports a maximum flow rate of 367 cubic meters per hour (55 liters per minute), enabling efficient large-scale water transfer. With a maximum head of 183 meters, this Ebara submersible pump is capable of lifting water over significant vertical distances. Designed for deep immersion, the unit can operate at depths of up to 100 meters and handle liquids with temperatures up to 40°C. It can tolerate sand concentrations of up to 50 ppm, ensuring reliable performance in moderately particulate-laden environments. The motor features a two-pole design with class F insulation, providing effective thermal resistance and long-term operational reliability. An IP58 protection rating ensures strong resistance to dust and water ingress.
| Specification | Value |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Maximum Flow rate (m3/h) | 367 |
| Maximum Flow rate (l/min) | 55 |
| Maximum head (m) | 183 |
| Maximum immersion depth (m) | 100 |
| Maximum liquid temperature (°C) | 40 |
| Maximum sand content (ppm) | 50 |
| Poles | 2 |
| Insulation class | F |
| Protection degree | IP58 |
Ebara 4 HP Submersible Borehole Pump WINNER 4N2A-56 Applications
- Industrial water transfer
- Agricultural irrigation systems
- Municipal water supply
- Deep well pumping
Ebara 4 HP Submersible Borehole Pump WINNER 4N2A-56 Benefits
- High flow rate for efficient water movement
- Durable construction for long-term use
- Suitable for deep immersion and high temperatures
- Protected against dust and water ingress
Ebara 4 HP Submersible Borehole Pump WINNER 4N2A-56 Price List
| No. | Name | Price |
| 1 | Ebara 4 HP Submersible Borehole Pump WINNER 4N2A-56 Price | Contact us |
There are no reviews yet.
