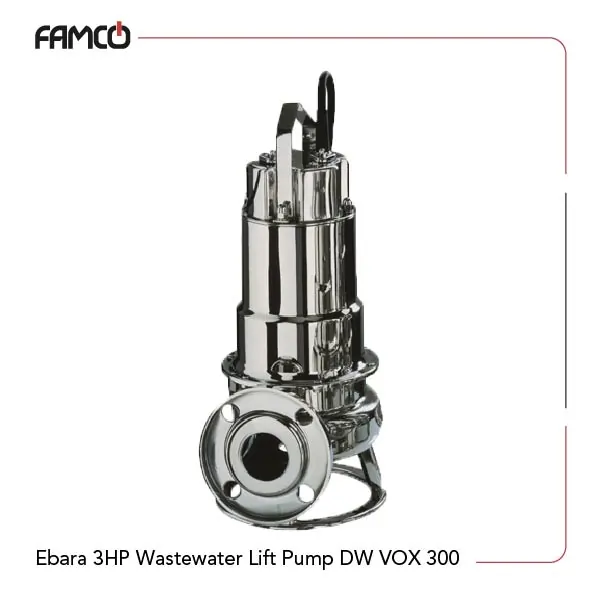

Ebara 3HP Wastewater Lift Pump DW VOX 300 Specifications
Ebara 3HP wastewater lift pump DW VOX 300 is designed for handling dirty and sewage water, dependin on various applications’ requirements. This series of Ebara wastewater pumps can operate at a maximum temperature of 40°C and can handle solids up to 50 mm in size. A maximum immersion depth of 7 meters has enabled this Ebara pump for deeper installations. This Ebara sewage pump features a two-pole design with a rotation speed of approximately 2800 min-1, ensuring efficient operation. It has an insulation class of F and a protection degree of IP X8, which means it is well-protected against water ingress. Operating at a frequency of 50 Hz, this pump has a power output of 2.2 kW (3 HP) and can achieve a maximum flow rate of 48 m3/h. The head range is between 3.6 to 17.0 meters, and it operates on a three-phase voltage of 400 ±10%.
| Specification | Value |
| Type of liquid | Dirty water, sewage water |
| Max temperature (°C) | 40 |
| Max solids size (mm) | 50 spherical |
| Maximum immersion (m) | 7 |
| No. of Poles | 2 |
| Rotation speed (min-1) | ≈ 2800 |
| Insulation Class | F |
| Protection degree | IP X8 |
| Frequency (Hz) | 50 |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Max. flow rate (m3/h) | 48 |
| Head (m) | 3.6-17.0 |
| Three-phase voltage (V) | 400 ±10% |
Ebara 3HP Wastewater Lift Pump DW VOX 300 Materials
- Casing: AISI 304
- Impeller: AISI 304
- Casing cover: AISI 304
- Mechanical Shaft Seal on Pump Side: SiC/SiC/NBR
- Mechanical Shaft Seal on Motor side: Carbon/Ceramic/NBR
Ebara 3HP Wastewater Lift Pump DW VOX 300 Technical Data
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| M3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 |
| Head (m) | 17.0 | 15.7 | 14.7 | 13.9 | 12.6 | 10.7 | 8.4 | 6.1 | 3.6 |

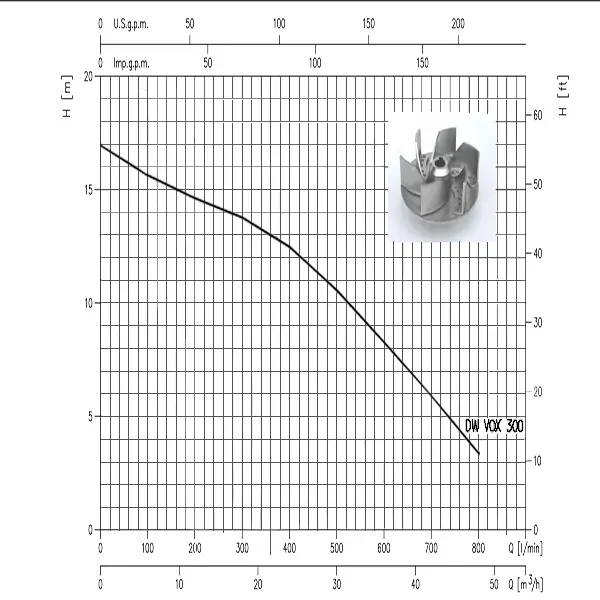

Ebara 3HP Wastewater Lift Pump DW VOX 300 Performance Curve
Ebara 3HP Wastewater Lift Pump DW VOX 300 Applications
- Construction site dewatering
- Wastewater treatment facilities
- Agricultural irrigation systems
- Flood control and drainage
Ebara 3HP Wastewater Lift Pump DW VOX 300 Benefits
- Handles large solids up to 50 mm in size
- Operates efficiently at high temperatures
- High flow rate of 48 m3/h for quick drainage
- Durable design with IP X8 protection for longevity
Ebara 3HP Wastewater Lift Pump DW VOX 300 Price List
| No. | Name | Price |
| 1 | Ebara 3HP Wastewater Lift Pump DW VOX 300 Price | Contact us |
