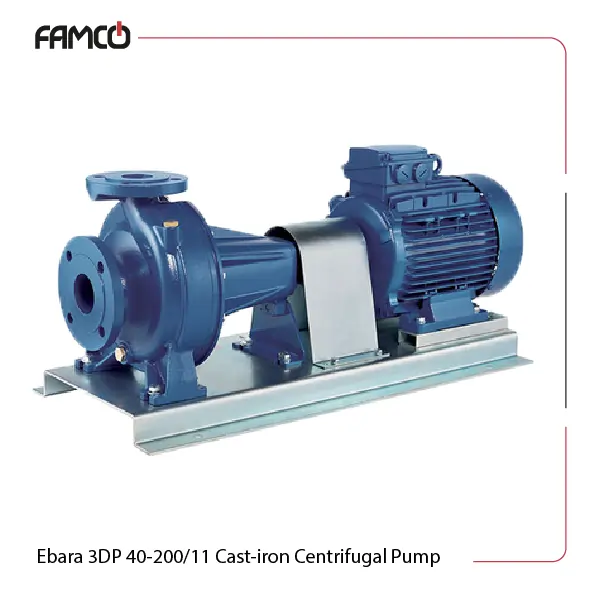

Overview of Ebara 3DP 40-200/11 Cast-iron Centrifugal Pump
The Ebara 3DP 40-200/11 Cast-Iron Centrifugal Pump is a high-performance, durable pump ideal for various industrial and commercial applications. It offers a maximum flow rate of 45 m³/h and can achieve a head of up to 20 meters, making it suitable for tasks such as water supply, irrigation, HVAC systems, and fire protection. The pump’s cast-iron construction ensures strength and longevity, while its closed impeller design enhances efficiency. Powered by an 11 kW (15 HP) motor, this centrifugal pump is built to deliver reliable and effective fluid transfer.
With its combination of durability, efficiency, and versatility, the Ebara 3DP 40-200/11 stands out as a dependable choice for demanding applications. It provides a balance of performance and cost-effectiveness and is supported by Ebara’s comprehensive service network for maintenance and support. For detailed technical specifications and operational guidelines, users can refer to the product’s datasheet and user manual.
You can check the specification of Ebara 3DP 40-200/11 Cast-iron Centrifugal Pump on this page.
How does Ebara 3DP 40-200/11 Cast-iron Centrifugal Pump work?
Here’s a step-by-step breakdown of the process:
- Fluid Entry: The process begins when the pump is turned on, and the motor drives the impeller to spin. The fluid (usually water or other liquids) enters the pump through the inlet port (40 mm in this model).
- Impeller Rotation: The impeller, which consists of blades arranged in a circular pattern, is mounted on the pump shaft and connected to the motor. When the motor runs, it causes the impeller to rotate at high speeds.
- Centrifugal Force: As the impeller spins, it applies centrifugal force to the fluid. The fluid is pushed outward from the center of the impeller towards the edges, where the force increases the fluid’s velocity.
- Fluid Discharge: The kinetic energy imparted to the fluid by the impeller is converted into pressure energy as the fluid exits the impeller and flows through the volute casing. The fluid is then directed through the discharge port (200 mm in this model) and out of the pump.
- Pressure Development: The design of the pump includes a volute casing that helps to convert the high-velocity flow of the fluid into high pressure. The volute is a spiral-shaped casing that collects the fluid from the impeller and channels it to the discharge port, increasing pressure in the process.
Exclusive features and benefits of Ebara 3DP 40-200/11 Cast-iron Centrifugal Pump
The Ebara 3DP 40-200/11 Cast-iron Centrifugal Pump has several exclusive features and benefits:
- Sturdy Construction: The pump is made of cast iron, which provides excellent stress resistance.
- High Efficiency: The pump is equipped with high-efficiency motors. The IE3 motors are used for 7.5kW – 22kW versions.
- Impeller Material: The impeller is made of AISI 304 and AISI 316 steel.
- Back Pull-out Design: This design allows the motor, coupling, bracket, and impeller to be removed without compromising the pump body or disassembling the piping.
- Mechanical Seals: Many types of mechanical seals can be mounted on the electric pumps to meet different requirements.
- Applications: The pump is suitable for various applications such as heating and air conditioning systems, water supply of civil, agricultural and industrial plants, pressurisation and fire-fighting.
Ebara 3DP 40-200/11 Cast-iron Centrifugal Pump installation and usage
For Ebara 3DP 40-200/11 pump installation:
- Read Manual: Find the manual and follow its instructions for safety and specifics.
- Prepare: Gather tools, pipes, valves, etc. as per the manual.
- Install: Choose location, mount pump, connect pipes with valves (refer to manual for proper alignment).
- Prime: Locate and open priming plug, fill pump, expel air, close plug securely.
- Startup: Double-check connections, turn on power, observe for leaks and unusual noises.
Usage:
- Transfer of clean or slightly contaminated liquids
- Water supply and pressure boosting
- Irrigation and agricultural applications
- Industrial process liquids handling
- HVAC systems (heating, ventilation, and air conditioning)
- Fire suppression systems
Ebara 3DP 40-200/11 Cast-iron Centrifugal Pump components
The Ebara 3DP 40-200/11 cast-iron centrifugal pump is made up of several key parts:
- Impeller: This component, typically made of stainless steel (AISI 304) in this model, transfers energy from the motor to the liquid being pumped.
- Volute casing: This cast iron (EN-GJL-250-EN 1561) component collects and directs the discharged liquid.
- Shaft: The shaft connects the motor to the impeller. In the 3DP 40-200/11, the part of the shaft that comes into contact with the liquid is AISI 304 stainless steel.
- Seals: These prevent leakage between the shaft and the casing. The standard seal for the 3DP 40-200/11 is ceramic/carbon/NBR.
- Bearings: These support the rotating shaft.
- Motor: This provides power to rotate the impeller. The motor can be single or three-phase depending on the specific model.
- Suction and discharge flanges: These connect the pump to piping. Flange sizes and pressure ratings are specified in the pump’s manual.
- Priming plug: This allows for filling the pump casing to remove air before starting the pump.
Important tips for buying Ebara 3DP 40-200/11 Cast-iron Centrifugal Pump
- Match the Need: Check flow rate and pressure in the Ebara catalog to ensure it meets your application.
- Liquid Matters: Verify the pump material (cast iron/stainless steel) works with your liquid type.
- Power Check: Make sure your electrical supply matches the pump’s voltage and phase (single or three-phase).
- Future Service: Consider installation space for future maintenance.
- Price: You can check Ebara Centrifugal Pump price on Famcocorp website
You can buy Ebara 3DP 40-200/11 Cast-iron Centrifugal Pump online from Famcocorp.
Ebara 3DP 40-200/11 Cast-iron Centrifugal Pump Price List
| No. | Name | Price |
| 1 | Ebara 3DP 40-200/11 Cast-iron Centrifugal Pump Price | contact us |
