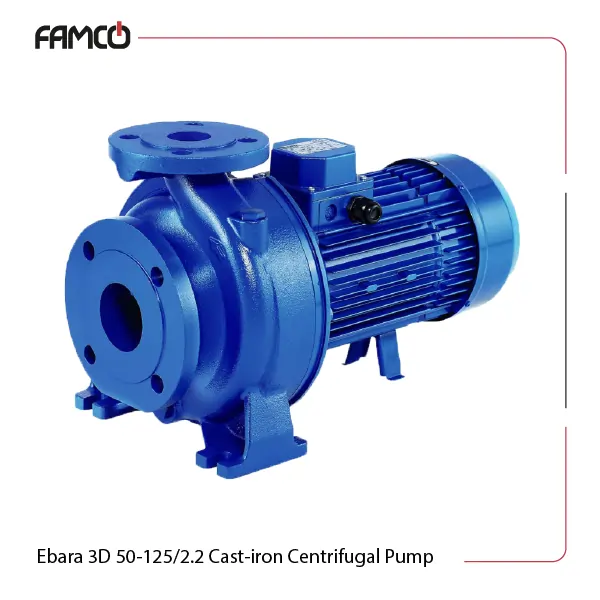

Ebara 3D 50-125/2.2 Cast-iron Centrifugal Pump

Overview of the Ebara 3D 50-125/2.2 Cast-iron Centrifugal Pump

The Ebara 3D 50-125/2.2 Cast-iron Centrifugal Pump is engineered to deliver outstanding performance and durability. This pump features a cast-iron body, ensuring longevity and resilience in various applications. Equipped with AISI 304 and AISI 316 steel impellers, the pump excels in handling a wide range of fluids, making it suitable for numerous industrial, agricultural, and civil operations.

The Ebara 3D series is meticulously designed to provide axial suction and radial discharge. It comes with either 2 or 4 poles motors, catering to different operational needs. One of its standout features is the back pull-out design, which allows the motor, coupling, bracket, and impeller to be removed without disassembling the piping or compromising the pump body. This feature significantly simplifies maintenance and reduces downtime.

How does Ebara 3D 50-125/2.2 Cast-iron Centrifugal Pump work?

The operation of the Ebara 3D 50-125/2.2 Cast-iron Centrifugal Pump is based on the principles of centrifugal force. As the motor drives the impeller, fluid enters the pump through the axial suction and is rapidly accelerated by the rotating impeller.

This action converts mechanical energy into kinetic energy, propelling the fluid outward through the radial discharge. The pump’s ability to handle high flow rates—up to 138 m³/h—and its impressive total head of up to 70.0 m ensure efficient fluid transfer in various settings.

Exclusive features and benefits of the Ebara 3D 50-125/2.2 Cast-iron Centrifugal Pump

1. Material Excellence: The pump body is made of robust cast iron, while the impellers are crafted from AISI 304 and AISI 316 steel, ensuring resistance to corrosion and wear.
2. Mechanical Seal Options: The pump can be equipped with various types of mechanical seals (ceramic, carbon, NBR, graphite, silicon carbide, FPM), allowing it to handle different liquids and temperatures effectively.
3. Versatility: It’s suitable for heating, ventilation, air-conditioning systems, water supply for civil, agricultural, and industrial plants, pressurization, firefighting systems, and irrigation for farms and sports facilities.
4. Ease of Maintenance: The back pull-out design allows for easy removal of the motor and impeller without disturbing the pump housing or connected piping, minimizing downtime during maintenance.
5. Temperature Range: The pump can handle temperatures from -5°C to +75°C for specific versions, and up to +90°C for standard and E versions, making it adaptable to different environmental conditions.

Ebara 3D 50-125/2.2 Cast-iron Centrifugal Pump Installation and usage

It’s crucial to ensure the pump is mounted on a stable, level surface to prevent vibration and ensure optimal operation. For use in heating and cooling systems, ensure the pump is integrated correctly within the system to facilitate efficient fluid circulation.

In agricultural or industrial applications, it’s important to match the pump specifications to the system requirements to ensure efficient and effective operation. Regular maintenance checks, facilitated by the back pull-out design, will keep the pump running smoothly and extend its lifespan.

Ebara 3D 50-125/2.2 Cast-iron Centrifugal Pump Components

1. Pump Body: Made from cast iron, it provides structural integrity and durability.
2. Impeller: Available in AISI 304 and AISI 316 steel, precision-cast for optimal performance.
3. Shaft: Constructed from AISI 304 (EN 1.4301) steel, ensuring strength and reliability.
4. Mechanical Seal: Options include ceramic, carbon, NBR, graphite, silicon carbide, and FPM seals to cater to different operational requirements.
5. Motor Support: Cast iron for higher power models (32-200/3, 15, 18.5, and 22 kW), and aluminum for other ranges.

Important Tips for Buying Ebara 3D 50-125/2.2 Cast-iron Centrifugal Pump

1. Understand Your Needs: Determine the specific requirements of your application, such as flow rate, total head, and temperature range.
2. Check Compatibility: Ensure the pump’s voltage compatibility aligns with your electrical setup.
3. Consider Maintenance: The back pull-out design simplifies maintenance, but regular checks are essential to keep the pump in optimal condition.
4. Review Specifications: Familiarize yourself with the specifications of Ebara Centrifugal Pump, including materials, mechanical seal options, and temperature ranges, to ensure it meets your operational needs.
5. Evaluate Ebara 3D 50-125/2.2 Cast-iron Centrifugal Pump price: Compare prices from reputable sellers like Famcocorp to ensure you get the best value for your investment.

Ebara 3D 50-125/2.2 Cast-iron Centrifugal Pump Price List

No.	Name	Price
1	Ebara 3D 50-125/2.2 Cast-iron Centrifugal Pump Price	Contact us
