Ebara 30 HP Wastewater Lift Pump 300DL522

22 kW (30 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Ebara 30 HP Wastewater Lift Pump 300DL522

This sewage pump is built for tough wastewater tasks. It handles solids up to 70 mm and works well in deep or challenging environments. With a powerful 30 HP motor, it can move large amounts of sewage efficiently. Its cast iron body makes it sturdy and resistant to corrosion. The pump is designed for continuous operation in demanding conditions, with a high protection level IP68. It is perfect for municipal, industrial, or commercial sewage systems, where reliability and durability are key. Its high flow rate and head height make it versatile for various installation setups. Easy to maintain and operate, this pump is a reliable choice for wastewater management.

Related Products

Ebara 30 HP Wastewater Lift Pump 300DL522 Specifications

This sewage pump is designed for handling wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump features a durable cast iron casing and impeller, ensuring longevity and resistance to corrosion. It is equipped with high-quality mechanical seals on both the impeller and motor sides, made from SiC/SiC/NBR and Carbon/Ceramic/NBR, respectively, providing reliable sealing and preventing leaks. The motor has four poles, rotating at 1450 rpm, with an insulation class of F for safety and durability. It supports a frequency of 50 Hz and operates within a voltage range of 380-415V. The presented Ebara submersible pump delivers a maximum flow rate of 12,000 liters per minute and can generate a head height of up to 19 meters, reaching most targeted heights. Its protection degree of IP68 ensures this Ebara sewage pump is fully protected against dust and water ingress, ideal for harsh environments. Overall, this pump combines construction with high performance, making it suitable for industrial, municipal, and commercial sewage management tasks.

Ebara 30 HP Wastewater Lift Pump 300DL522



Specification Value
Type of liquid sewage
Max. temperature (° C) 40
Max. solids size (mm) 70
Max. immersion depth (m) 7
Casing material cast iron
Impeller cast iron
Mechanical seal on impeller side SiC/SiC/NBR
Mechanical seal on motor side Carbon/Ceramic/NBR
Number of poles 4
Rotation speed (rpm) 1450
Insulation class F
Protection degree IP68
Frequency (Hz) 50
Voltage (V) 380-415, 400-415
Power (kW) 22
Power (HP) 30
Max. flow rate (l/min) 12000
Max. head height (m) 19



Ebara 30 HP Wastewater Lift Pump 300DL522 Performance Data

l/min 0 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000
m³/h 0 180 240 300 360 420 480 540 600 660 720
Head (m) 19 15.5 14.4 13.4 12.4 11.4 10.5 9.6 8.7 7.6 6.4

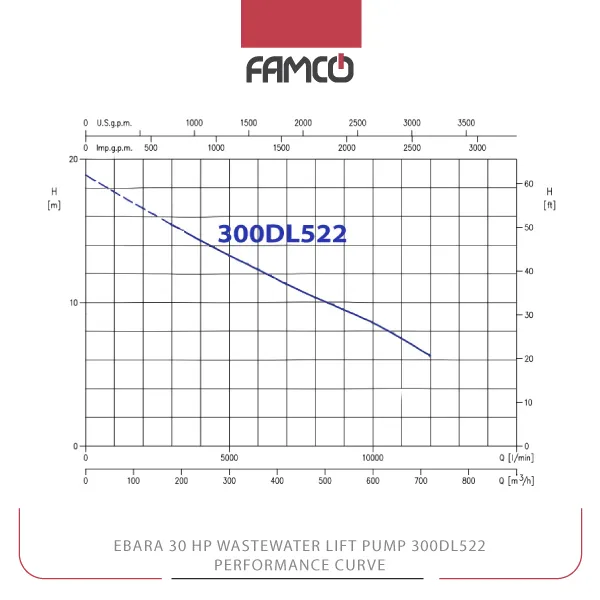

Ebara 30 HP Wastewater Lift Pump 300DL522 Performance Curve

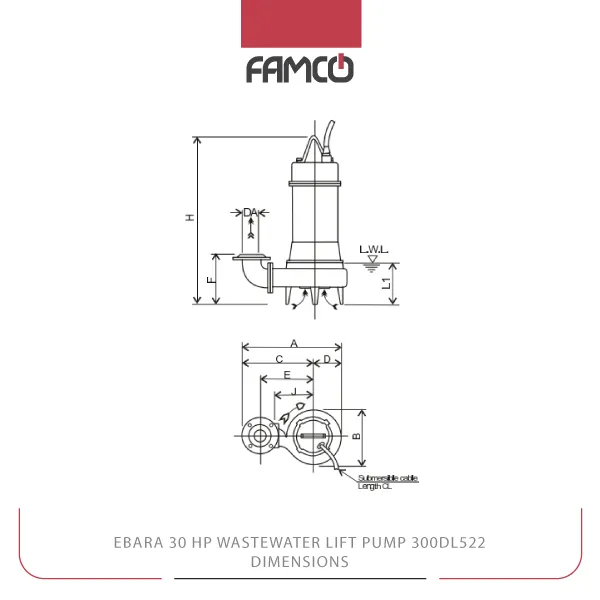

Ebara 30 HP Wastewater Lift Pump 300DL522 Dimensions

Dimensions (mm) Weight (kg)
A B C D E F H J L1 CL (m) 465
1135 618 818 317 595 668 1131 440 450 10



Ebara 30 HP Wastewater Lift Pump 300DL522 Dimensions



Ebara 30 HP Wastewater Lift Pump 300DL522 Applications

  • Municipal sewage treatment plants
  • Industrial wastewater systems
  • Commercial building sewage disposal
  • Flood control and drainage projects



Ebara 30 HP Wastewater Lift Pump 300DL522 Benefits

  • Durable cast iron construction for long-lasting use
  • High flow capacity for efficient sewage removal
  • Reliable mechanical seals prevent leaks
  • IP68 protection for harsh environments



Ebara 30 HP Wastewater Lift Pump 300DL522 Price List

No. Name Price
1 Ebara 30 HP Wastewater Lift Pump 300DL522 Price Contact us
Brand

Maximum Liquid Temperature (°C)

Maximum immersion depth (m)

Impeller Material

Number of Poles

Speed (RPM)

Insulation Class

Frequency (Hz)

Voltage (V)

Power (kW)

Power (HP)

Maximum Flow Rate (L/min)

Maximum Delivery Head (m)
