Ebara 30 HP Wastewater Lift Pump 250DL522

22 kW (30 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Ebara 30 HP Wastewater Lift Pump 250DL522

This 30 HP Ebara sewage pump lifts water to 27.8 meters. This is the pump to solve your problems if you are dealing with transferring sewage in industrial, municipal, and building systems. The pump’s cast iron construction, on the one hand, and lasting sealing materials, on the other, have contributed to consistent performance, even with time. With a high flow capacity and significant head height, it can handle large volumes of sewage efficiently. Its design includes reliable mechanical seals and a protected motor, making it suitable for continuous operation. The pump’s versatile voltage options and high protection level make it adaptable to different power supplies and environments. Overall, this pump is a powerful solution for sewage management needs, combining durability, efficiency, and safety.

Related Products

Ebara 30 HP Wastewater Lift Pump 250DL522 Specifications

This sewage pump is designed for handling wastewater with a maximum temperature of 40°C. It features a durable cast iron casing and impeller, making it suitable for tough environments. The pump can operate at a maximum immersion depth of 7 meters and has a high flow rate of up to 8500 liters per minute. It is equipped with a four-pole motor running at 1450 rpm, ensuring efficient performance. The mechanical seals inside this Ebara submersible pump are made of SiC/SiC/NBR on the impeller side and Carbon/Ceramic/NBR on the motor side, providing reliable sealing and durability. With an insulation class of F and an IP68 protection degree, the available Ebara sewage pump is well-protected against dust and water ingress. It operates on a voltage range of 380-415V or 400-415V at a frequency of 50Hz, delivering a power output of 22 kW or 30 HP. The maximum head height it can achieve is 27.8 meters.

Ebara 30 HP Wastewater Lift Pump 250DL522



Specification Value
Type of liquid sewage
Max. temperature (°C) 40
Max. immersion depth (m) 7
Casing material cast iron
Impeller cast iron
Mechanical seal on impeller side SiC/SiC/NBR
Mechanical seal on motor side Carbon/Ceramic/NBR
Number of poles 4
Rotation speed (rpm) 1450
Insulation class F
Protection degree IP68
Frequency (Hz) 50
Voltage (V) 380-415, 400-415
Power (kW) 22
Power (HP) 30
Max. flow rate (l/min) 8500
Max. head height (m) 27.8



Ebara 30 HP Wastewater Lift Pump 250DL522 Performance Data

l/min 0 2000 3000 4000 5000 6000 6500 7000 7500 8000 8500
m³/h 0 120 180 240 300 360 390 420 450 480 510
Head (m) 27.8 23.2 20.8 18.4 16 13.4 12.1 10.8 9.5 8.2 6.9

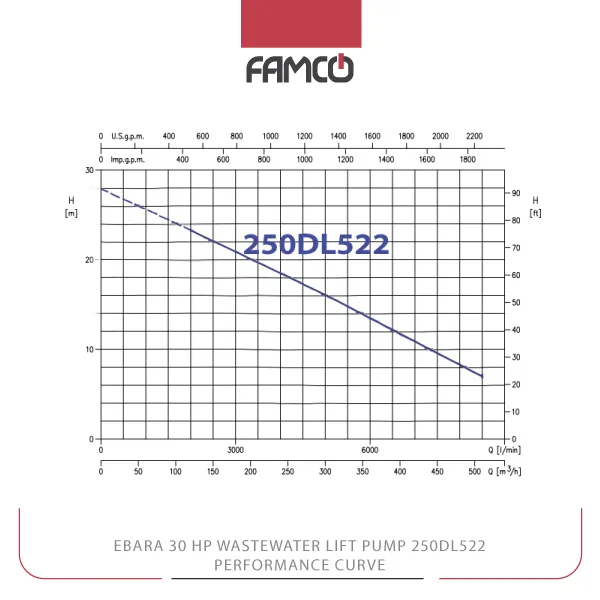

Ebara 30 HP Wastewater Lift Pump 250DL522 Performance Curve

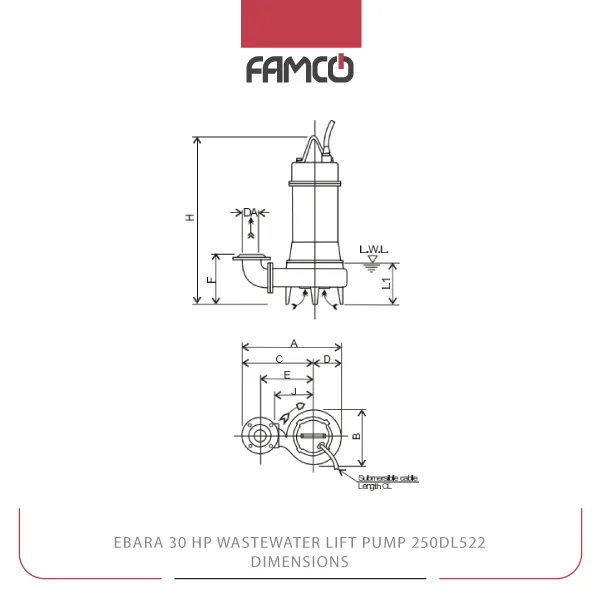

Ebara 30 HP Wastewater Lift Pump 250DL522 Dimensions

Dimensions (mm) Weight (kg)
A B C D E F H J L1 CL (m) 440
1007 549 730 277 530 646 1089 400 400 10



Ebara 30 HP Wastewater Lift Pump 250DL522 Dimensions



Ebara 30 HP Wastewater Lift Pump 250DL522 Applications

  • Municipal sewage treatment plants
  • Industrial wastewater transfer
  • Building drainage systems
  • Flood control and drainage projects



Ebara 30 HP Wastewater Lift Pump 250DL522 Benefits

  • High flow rate for efficient sewage handling
  • Durable cast iron construction for long-term use
  • Reliable mechanical seals prevent leaks
  • Protected motor with IP68 rating for harsh environments



Ebara 30 HP Wastewater Lift Pump 250DL522 Price List

No. Name Price
1 Ebara 30 HP Wastewater Lift Pump 250DL522 Price Contact us
Brand

Maximum Liquid Temperature (°C)

Impeller Material

Number of Poles

Speed (RPM)

Degree of Protection

Frequency (Hz)

Voltage (V)

Power (kW)

Power (HP)

Maximum Flow Rate (L/min)

Maximum Delivery Head (m)
