Ebara 30 HP Wastewater Lift Pump 200DL522

22 kW (30 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Ebara 30 HP Wastewater Lift Pump 200DL522

Running on a three-phase voltage, the 200DL522 is a fast and trustworthy solution for the heaviest loads of sewage and wastewater management. It is ideal for pumping sewage in municipal, industrial, or residential settings. Its robust cast iron construction ensures durability, while the high flow rate and head height make it suitable for large-scale applications. The pump’s design allows it to operate efficiently at a maximum immersion depth of 7 meters, handling challenging sewage conditions with ease. With a protection degree of IP68, this Ebara pump is well-protected against dust and water, ensuring continuous operation even in harsh environments. The motor’s insulation class F and the mechanical seals contribute to its longevity and safety. Overall, this pump is a versatile solution for sewage transfer needs, combining strength, efficiency, and durability.

Related Products

Ebara 30 HP Wastewater Lift Pump 200DL522 Specifications

This sewage pump is designed for handling wastewater with a maximum temperature of 40°C. It features a durable cast iron casing and impeller, ensuring long-lasting performance in tough environments. The Ebara sewage pump can operate at a maximum immersion depth of 7 meters, making it suitable for various sewage applications. It is equipped with a mechanical seal on the impeller side made of SiC/SiC/NBR and on the motor side with Carbon/Ceramic/NBR, providing reliable sealing and preventing leaks. The motor has 4 poles, rotating at 1450 rpm, and is rated with an insulation class F for safety and efficiency. Its protection degree is IP68, meaning this Ebara submersible pump is fully protected against dust and water ingress. The pump operates on a frequency of 50 Hz and voltage options of 380-415V or 400-415V, making it compatible with standard power supplies. With a power output of 22 kW (30 HP), it delivers a maximum flow rate of 5500 liters per minute and can achieve a maximum head height of 34.9 meters, making it suitable for high-volume sewage transfer tasks.

Ebara 30 HP Wastewater Lift Pump 200DL522



Specification Value
Type of liquid sewage
Max. temperature (°C) 40
Max. immersion depth (m) 7
Casing material cast iron
Impeller cast iron
Mechanical seal on impeller side SiC/SiC/NBR
Mechanical seal on motor side Carbon/Ceramic/NBR
Number of poles 4
Rotation speed (rpm) 1450
Insulation class F
Protection degree IP68
Frequency (Hz) 50
Voltage (V) 380-415, 400-415
Power (kW) 22
Power (HP) 30
Max. flow rate (l/min) 5500
Max. head height (m) 34.9



Ebara 30 HP Wastewater Lift Pump 200DL522 Performance Data

l/min 0 1000 1500 2000 2500 3000 4000 4500 5000 5500
m³/h 0 60 90 120 150 180 240 270 300 330
Head (m) 34.9 29 27.2 25.3 21.1 19 17 15.1

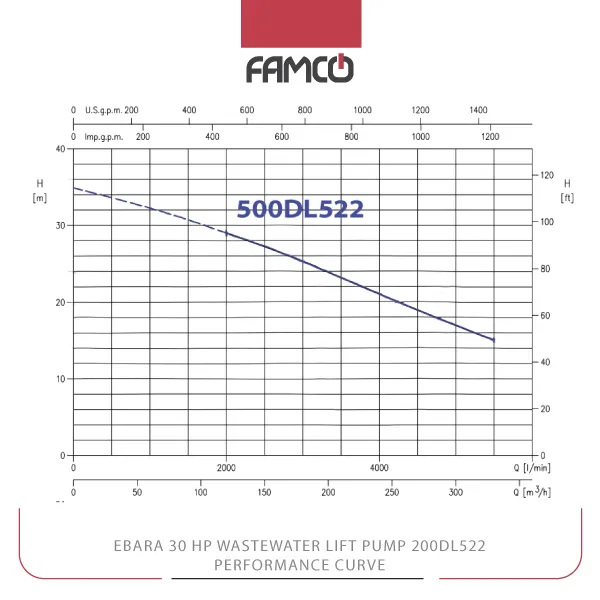

Ebara 30 HP Wastewater Lift Pump 200DL522 Performance Curve

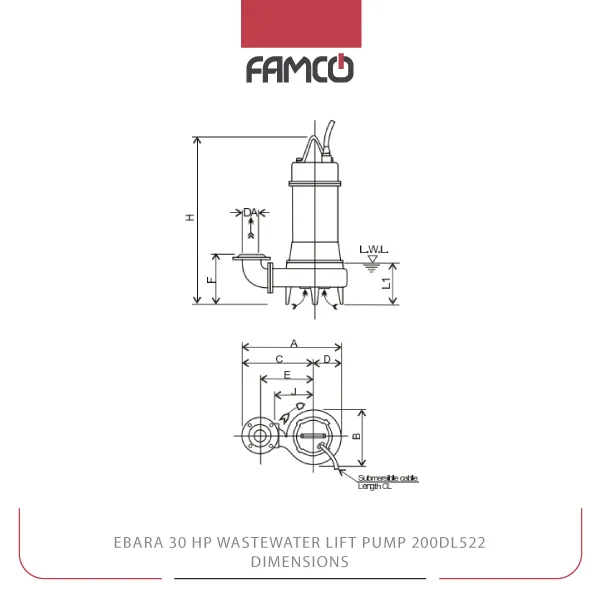

Ebara 30 HP Wastewater Lift Pump 200DL522 Dimensions

Dimensions (mm) Weight (kg)
A B C D E F H J L1 CL (m) 330
932 512 675 257 510 415 1001 360 486 10



Ebara 30 HP Wastewater Lift Pump 200DL522 Dimensions



Ebara 30 HP Wastewater Lift Pump 200DL522 Applications

  • Municipal sewage treatment plants
  • Industrial wastewater management
  • Residential sewage systems
  • Flood control and drainage projects



Ebara 30 HP Wastewater Lift Pump 200DL522 Benefits

  • High flow capacity for large-scale sewage transfer
  • Durable cast iron construction for long-term use
  • Reliable sealing system prevents leaks
  • Waterproof IP68 protection for harsh environments



Ebara 30 HP Wastewater Lift Pump 200DL522 Price List

No. Name Price
1 Ebara 30 HP Wastewater Lift Pump 200DL522 Price Contact us
Brand

Maximum Liquid Temperature (°C)

Maximum immersion depth (m)

Impeller Material

Number of Poles

Speed (RPM)

Insulation Class

Degree of Protection

Frequency (Hz)

Voltage (V)

,

Power (kW)

Power (HP)

Maximum Flow Rate (L/min)

Maximum Delivery Head (m)
