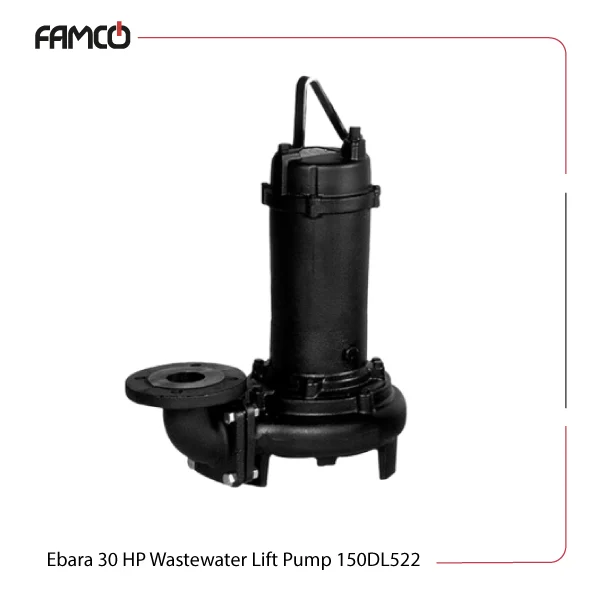

Ebara 30 HP Wastewater Lift Pump 150DL522 Specifications
This sewage pump is designed for handling wastewater with solids up to 70 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. It is equipped with high-quality mechanical seals on both the impeller and motor sides, made from SiC/SiC/NBR and Carbon/Ceramic/NBR respectively, to prevent leaks and withstand harsh conditions. The motor has 4 poles, running at 1450 rpm, with an insulation class of F for safety and durability. It is protected by an IP68 rating, making it fully dustproof and waterproof for reliable operation underwater. The present Ebara sewage pump operates on a 50 Hz frequency and is compatible with voltages ranging from 380V to 415V, including 400V variants. It delivers a maximum flow rate of 4200 liters per minute and can achieve a head height of up to 38.7 meters. Every specification in this Ebara submersible pump points to its quality that lasts over time. With a power output of 22 kW (30 HP), this pump provides strong performance for demanding tasks in sewage management systems.
| Specification | Value |
| Type of liquid | sewage |
| Max. temperature (°C) | 40 |
| Max. solids size (mm) | 70 |
| Max. immersion depth (m) | 7 |
| Casing material | cast iron |
| Impeller | cast iron |
| Mechanical seal on impeller side | SiC/SiC/NBR |
| Mechanical seal on motor side | Carbon/Ceramic/NBR |
| Number of poles | 4 |
| Rotation speed (rpm) | 1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Voltage (V) | 380-415, 400-415 |
| Power (kW) | 22 |
| Power (HP) | 30 |
| Max. flow rate (l/min) | 4200 |
| Max. head height (m) | 38.7 |

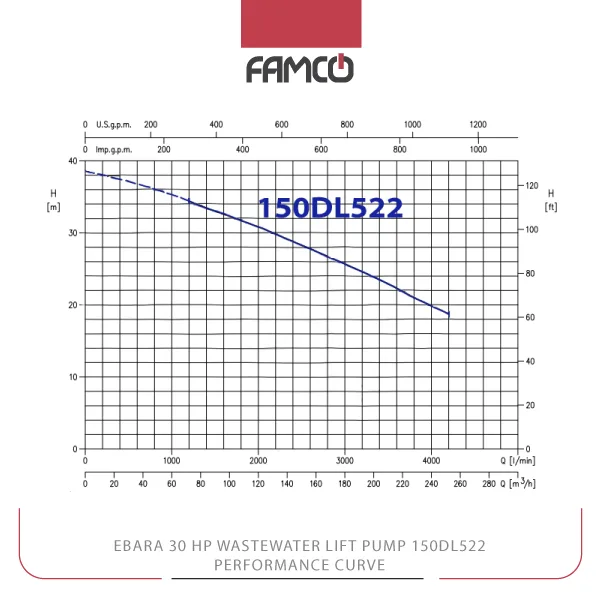

Ebara 30 HP Wastewater Lift Pump 150DL522 Performance Data
| l/min | 0 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 3200 | 3400 | 3500 | 3600 | 3800 | 4000 | 4200 |
| m³/h | 0 | 60 | 72 | 90 | 120 | 150 | 180 | 192 | 204 | 210 | 216 | 228 | 240 | 252 |
| Head (m) | 38.7 | – | 34.5 | 33 | 30.9 | 28.4 | 25.8 | 24.7 | 23.6 | 23 | 22.4 | 21.2 | 20.5 | 18.8 |

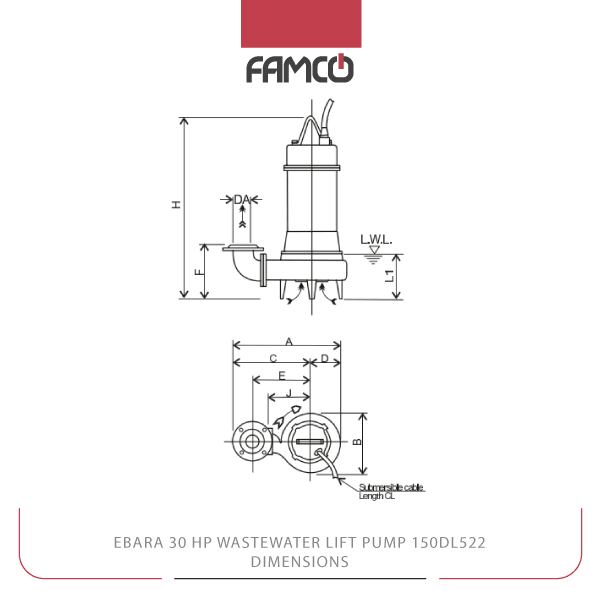

Ebara 30 HP Wastewater Lift Pump 150DL522 Dimensions
| Dimensions (mm) | Weight (kg) | |||||||||
| A | B | C | D | E | F | H | J | L1 | CL (m) | 320 |
| 22 | 848 | 476 | 610 | 238 | 470 | 381 | 979 | 340 | 10 | |
Ebara 30 HP Wastewater Lift Pump 150DL522 Applications
- Wastewater treatment plants
- Industrial sewage systems
- Building drainage systems
- Flood control and drainage
Ebara 30 HP Wastewater Lift Pump 150DL522 Benefits
- Durable cast iron construction for long-lasting use
- High flow rate and head height for efficient operation
- Reliable mechanical seals prevent leaks
- Waterproof and dustproof IP68 protection ensures durability
Ebara 30 HP Wastewater Lift Pump 150DL522 Price List
| No. | Name | Price |
| 1 | Ebara 30 HP Wastewater Lift Pump 150DL522 Price | Contact us |
