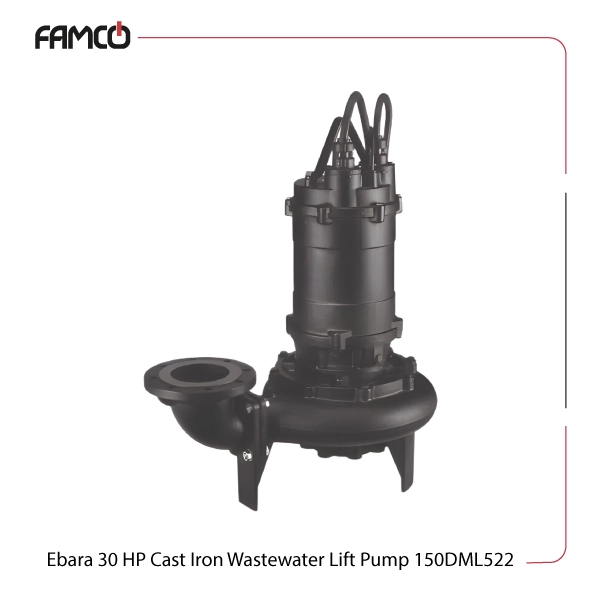

Ebara 30 HP Cast Iron Wastewater Lift Pump 150DML522 Specifications
This sewage pump is an advanced solution for wastewater management with solids up to 76 mm in size. This line of Ebara sewage pumps has the market advantage because they tolerate maximum temperatures of up to 40°C. They can also be submerged to a sufficient depth, reaching 7 meters. The pump runs on a three-phase power supply of 380-415V and features a 4-pole motor that spins at approximately 1450 rpm. It has an insulation class F and an IP68 protection rating, making this Ebara pump highly durable and suitable for harsh environments. The pump delivers a maximum flow rate of 300 cubic meters per hour and can generate a head height ranging from 10.5 to 40 meters. Its impellers are made of cast iron, a trusted material for durability. The mechanical seals are composed of SiC/SiC/NBR on the impeller side and carbon/ceramic/NBR on the motor side, providing reliable sealing and preventing leaks. This Ebara pump tackles raw sewage, grit, and organic waste in municipal, industrial, or heavy residential settings.
| Specification | Value |
| Type of liquid | sewage |
| Max. liquid temperature (°C) | 40 |
| Max. solids size (mm) | 76 |
| Max. immersion depth (m) | 7 |
| Three-phase voltage (V) | 380-415 |
| No. of poles | 4 |
| Rotation speed (rpm) | ≈1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Power (kW) | 22 |
| Power (HP) | 30 |
| Max. flow rate (m3/h) | 300 |
| Max. head (m) | 10.5-40 |
Ebara 30 HP Cast Iron Wastewater Lift Pump 150DML522 Materials
- Impellers: cast iron
- Mechanical seal on impeller side: SiC/SiC/NBR
- Mechanical seal on motor side: carbon/ceramic/NBR

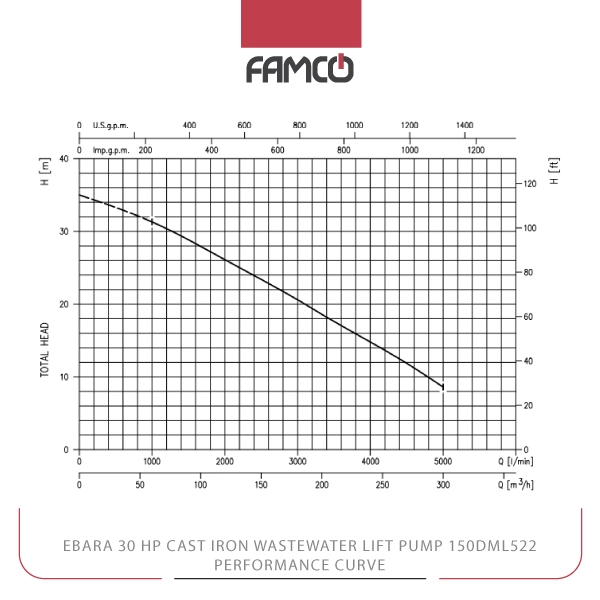

Ebara 30 HP Cast Iron Wastewater Lift Pump 150DML522 Performance Data
| l/min | 0 | 1000 | 2000 | 2500 | 3000 | 3400 | 4000 | 4500 | 5000 | 5500 |
| M3/h | 0 | 60 | 120 | 150 | 180 | 204 | 240 | 270 | 300 | 330 |
| Head (m) | 40.0 | 36.4 | 31.1 | 28.0 | 25.2 | 22.9 | 19.5 | 16.8 | 13.8 | 10.5 |
Ebara 30 HP Cast Iron Wastewater Lift Pump 150DML522 Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Stormwater drainage systems
- Construction site drainage
Ebara 30 HP Cast Iron Wastewater Lift Pump 150DML522 Benefits
- Handles solids up to 76 mm for versatile sewage pumping
- High durability with cast iron impellers and IP68 protection
- Efficient operation with a powerful 22 kW motor
- Suitable for submerged use up to 7 meters deep
Ebara 30 HP Cast Iron Wastewater Lift Pump 150DML522 Price List
| No. | Name | Price |
| 1 | Ebara 30 HP Cast Iron Wastewater Lift Pump 150DML522 Price | Contact us |
