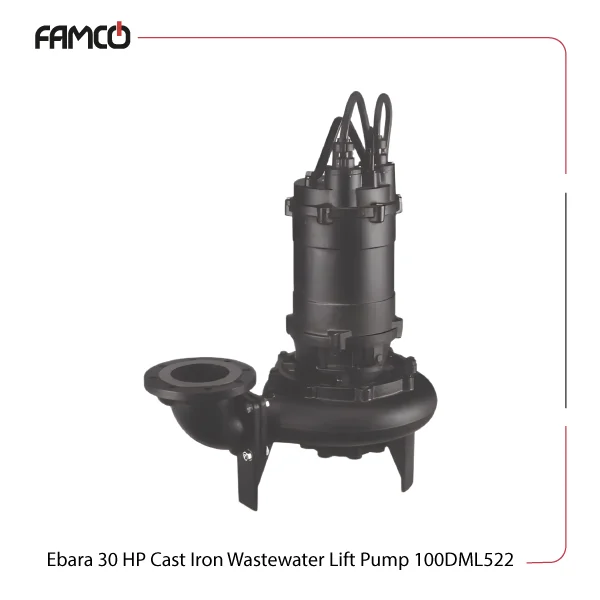

Ebara 30 HP Cast Iron Wastewater Lift Pump 100DML522 Specifications
This sewage pump is designed to handle dirty liquids with solids up to 76 mm in size. It operates efficiently at a maximum temperature of 40°C and can be submerged up to 7 meters deep. The pump runs on a three-phase power supply of 380-415V and features a 4-pole motor that spins at approximately 1450 rpm. It has an insulation class F and an IP68 protection degree, making this Ebara sewage pump a candid choice for harsh environments. The pump delivers a maximum flow rate of 150 cubic meters per hour and can generate a head between 28 and 40 meters. Its impellers are made of cast iron, ensuring durability, and it uses high-quality mechanical seals with SiC/SiC/NBR on the impeller side and carbon/ceramic/NBR on the motor side, providing reliable sealing performance.
| Specification | Value |
| Type of liquid | sewage |
| Max. liquid temperature (°C) | 40 |
| Max. solids size (mm) | 76 |
| Max. immersion depth (m) | 7 |
| Three-phase voltage (V) | 380-415 |
| No. of poles | 4 |
| Rotation speed (rpm) | ≈1450 |
| Insulation class | F |
| Protection degree | IP68 |
| Frequency (Hz) | 50 |
| Power (kW) | 22 |
| Power (HP) | 30 |
| Max. flow rate (m3/h) | 150 |
| Max. head (m) | 28.0-40.0 |
Ebara 30 HP Cast Iron Wastewater Lift Pump 100DML522 Materials
- Impellers: cast iron
- Mechanical seal on impeller side: SiC/SiC/NBR
- Mechanical seal on motor side: carbon/ceramic/NBR

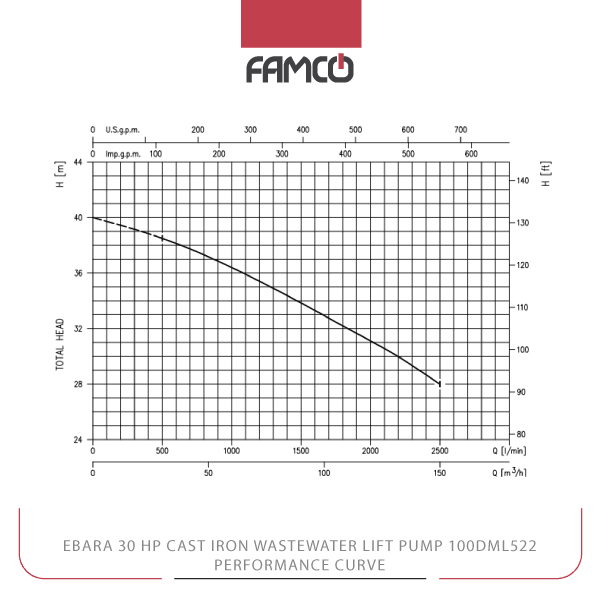

Ebara 30 HP Cast Iron Wastewater Lift Pump 100DML522 Performance Data
| l/min | 0 | 500 | 1000 | 1300 | 1600 | 1900 | 2200 | 2400 | 2500 |
| M3/h | 0 | 30 | 60 | 78 | 96 | 114 | 132 | 144 | 150 |
| Head (m) | 40.0 | 38.5 | 36.4 | 34.9 | 33.3 | 31.7 | 30.0 | 28.7 | 28.0 |
Ebara 30 HP Cast Iron Wastewater Lift Pump 100DML522 Applications
- Municipal sewage treatment
- Industrial wastewater management
- Drainage in construction sites
- Flood control and drainage systems
Ebara 30 HP Cast Iron Wastewater Lift Pump 100DML522 Benefits
- Handles solids up to 76 mm for versatile use
- High flow rate of 150 m3/h for efficient pumping
- Durable cast iron impellers ensure longevity
- IP68 protection for reliable outdoor operation
