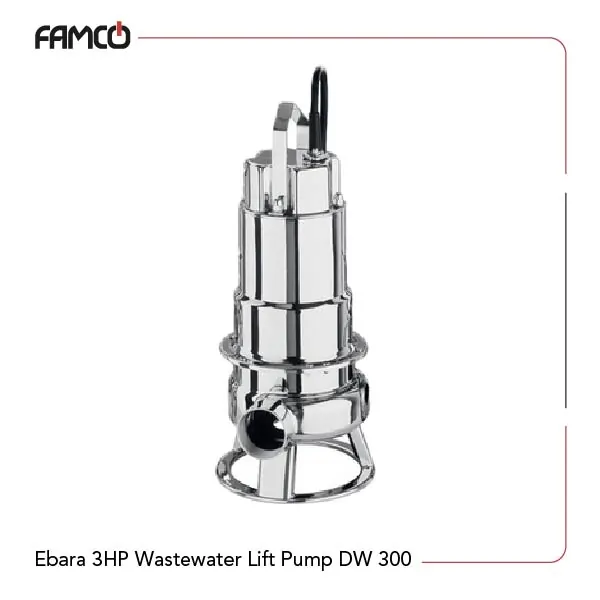

Ebara 3 HP Wastewater Lift Pump DW 300 Specifications
This pump’s design is focused on handling dirty and sewage water. This Ebara wastewater pump can operate at a maximum temperature of 40°C and can handle solids up to 50 mm in size. A maximum immersion depth of 7 meters has made it suitable for deep installations. The pump features a rotation speed of approximately 2800 min-1 and operates on a three-phase voltage of 400 ±10%. It has a power output of 2.2 kW (3 HP) and can achieve a maximum flow rate of 54 m3/h. The head range is between 5.0 to 21.8 meters, so it serves well in different settings. This series of Ebara pumps has a rated F insulation class, and it has a protection degree of IP X8, which helps it run more effectively and essentially safely in wet environments.
| Specification | Value |
| Type of liquid | Dirty water, sewage water |
| Max temperature (°C) | 40 |
| Max solids size (mm) | 50 spherical |
| Maximum immersion (m) | 7 |
| No. of Poles | 2 |
| Rotation speed (min-1) | ≈ 2800 |
| Insulation Class | F |
| Protection degree | IP X8 |
| Frequency (Hz) | 50 |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Max. flow rate (m3/h) | 54 |
| Head (m) | 5.0-21.8 |
| Three-phase voltage (V) | 400 ±10% |
Ebara 3 HP Wastewater Lift Pump DW 300 Materials
- Casing: AISI 304
- Impeller: AISI 304
- Casing cover: AISI 304
- Mechanical Shaft Seal on Pump Side : SiC/SiC/NBR
- Mechanical Shaft Seal on Motor side : Carbon/Ceramic/NBR
Ebara 3 HP Wastewater Lift Pump DW 300 Technical Data
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 |
| M3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 |
| Head (m) | 21.8 | 20.0 | 18.3 | 16.6 | 15.1 | 13.3 | 11.3 | 9.3 | 7.2 | 5.0 |

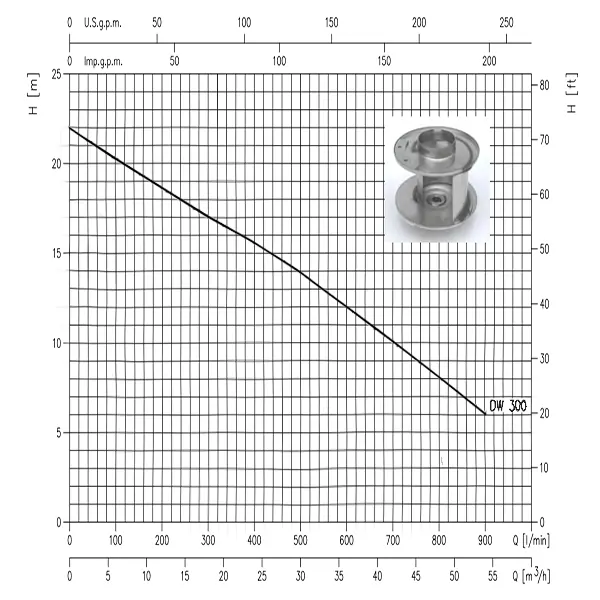

Ebara 3 HP Wastewater Lift Pump DW 300 Performance Curve
Ebara 3 HP Wastewater Lift Pump DW 300 Applications
- Wastewater treatment facilities
- Construction site dewatering
- Flood control and drainage
- Agricultural irrigation systems
Ebara 3 HP Wastewater Lift Pump DW 300 Benefits
- Handles dirty and sewage water effectively
- High flow rate for efficient drainage
- Durable design with IP X8 protection
- Versatile for various applications and environments
Ebara DW 300 Wastewater Lift Pump Price List
| No. | Name | Price |
| 1 | Ebara 3 HP Wastewater Lift Pump DW 300 Price | Contact us |
