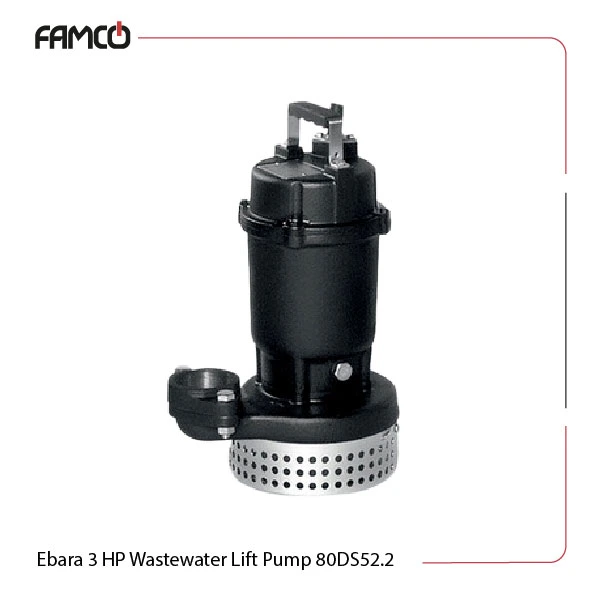

Ebara 3 HP Wastewater Lift Pump 80DS52.2 Specifications
This wastewater pump efficiently handles a wide range of fluid movement tasks with a power rating of 2.2 kW (3 HP) and a maximum head of 22 meters,. The pump’s IP 68 protection ensures it can operate in submerged conditions without compromising performance. This product features a semi-open impeller with a strainer, designed for efficient fluid movement. Constructed from sturdy cast iron, this submersible pump has its impeller, casing, and motor frame ensure longevity. The shaft is made from Aisi 403, while the mechanical seals consist of SiC/SiC/NBR on the impeller side and Carbon/Ceramic/NBR on the motor side. As a sewage pump sufficient lubrication is key in its effective performancem so it is lubricated with Turbine Oil VG32 to offer a smooth operation with the lowest downtime. The product can handle a head range of 8.3 to 22 meters based on different pumping needs.
Its semi-open impeller design allows for effective handling of solids, which promises enhanced wastewater management. The shaft seal in this Ebara pump is oil lubricated with a single spring double mechanical seal for enhanced durability.
| Specification | Value | |
| Motor Type | Three Phase air filled dry submersible | |
| No. Of Poles | 2 | |
| Rotation Speed (rpm) | ~2850 | |
| Insulation class | F | |
| Protection degree | IP 68 | |
| Frequency | 50 | |
| Voltage | 380-415 | |
| Power (KW) | 2.2 | |
| Power (HP) | 3 | |
| Head (m) | 8.3-22 | |
| Flange Type | Round | |
| Weight (kg) | 59 | |
| *L.W.L (Low Water Level) | Operation is limited to 10 minutes at L.W.L, Operation is limited to 30 minutes with water level below top of motor | |
Ebara 3 HP Wastewater Lift Pump 80DS52.2 Materials
- Impeller Type: Semi-Open (with Strainer)
- Shaft Seal Type: Oil Lubricated, Single Spring Double Mechanical Seal
- Impeller: cast iron
- Casing: cast iron
- Motor Frame: cast iron
- Shaft: Aisi 403
- Mechanical Seal of Impeller Side: SiC/SiC/NBR
- Mechanical Seal of Motor Side: Carbon/Ceramic/NBR
- Lubricant: Turbine Oil VG32 (SAE 10W/20W)
Ebara 3 HP Wastewater Lift Pump 80DS52.2 Technical Data
| Q (m3/h) | 0 | 150 | 200 | 250 | 300 | 400 | 433 | 450 | 467 | 473 | 483 | 500 | 550 | 580 | 600 |
| Q (l/min) | 0 | 9 | 12 | 15 | 18 | 24 | 26 | 27 | 28 | 28.4 | 29 | 30 | 33 | 34.8 | 36 |
| H (m) | 22 | 20.8 | 20.2 | 19.4 | 17.6 | 16.8 | 16.4 | 15.9 | 15.8 | 15.5 | 15 | 13.4 | 12.5 | 11.8 | 8.3 |

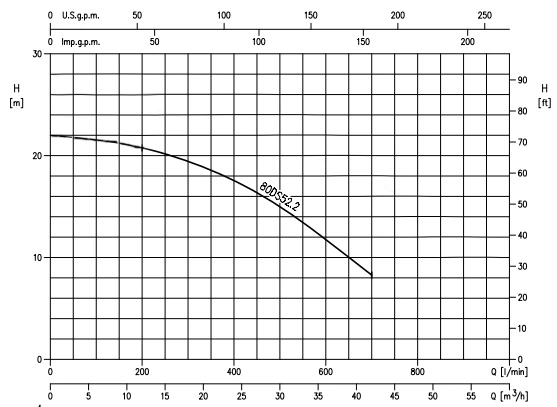

Ebara 3 HP Wastewater Lift Pump 80DS52.2 Performance Curve
Ebara 3 HP Wastewater Lift Pump 80DS52.2 Applications
- Drainage of flooded areas
- Irrigation systems
- Industrial fluid transfer
- Wastewater management
Ebara 3 HP Wastewater Lift Pump 80DS52.2 Benefits
- Durable cast iron construction for longevity
- High efficiency with semi-open impeller design
- Versatile power rating for various applications
- IP 68 protection for reliable submerged operation
Ebara 3 HP Wastewater Lift Pump 80DS52.2 Price List
| No. | Name | Price |
| 1 | Ebara 3 HP Wastewater Lift Pump 80DS52.2 Price | Contact us |
