Ebara 3 HP Wastewater Lift Pump 80DL52.2W/C Specifications
This Ebara sewage pump uses high-quality mechanical seals on both the impeller and motor sides, with materials like SiC, ceramic, NBR, and carbon, which provide reliable sealing and reduce maintenance needs. This sewage pump is designed to handle dirty liquids with solids up to 70 mm in size. Like most sturdy Ebara submersible pumps, it operates at a maximum temperature of 40°C and can be submerged to a depth of up to 7 meters. The pump features a durable cast-iron casing and impeller with lasting performance in tough environments. The motor has 4 poles, running at 1450 rpm, and is rated with an insulation class F for safety and efficiency. It is protected with an IP68 degree, making this Ebara sewage pump well-suited for underwater applications. The pump operates on a 50 Hz frequency and a voltage range of 380-415V, with a power output of 2.2 kW or 3 HP. It can move up to 1100 liters of liquid per minute and achieve a maximum head height of 15.2 meters, making it ideal for sewage and wastewater management in various settings.
Specification | Value |
Type of liquid | sewage |
Max. temperature (° C) | 40 |
Max. solids size (mm) | 70 |
Max. immersion depth (m) | 7 |
Casing material | cast iron |
Impeller | cast iron |
Mechanical seal on impeller side | SiC/SiC/NBR |
Mechanical seal on motor side | Carbon/Ceramic/NBR |
Number of poles | 4 |
Rotation speed (rpm) | 1450 |
Insulation class | F |
Protection degree | IP68 |
Frequency (Hz) | 50 |
Voltage (V) | 380-415, 400-415 |
Power (kW) | 2.2 |
Power (HP) | 3 |
Max. flow rate (l/min) | 1100 |
Max. head height (m) | 15.2 |

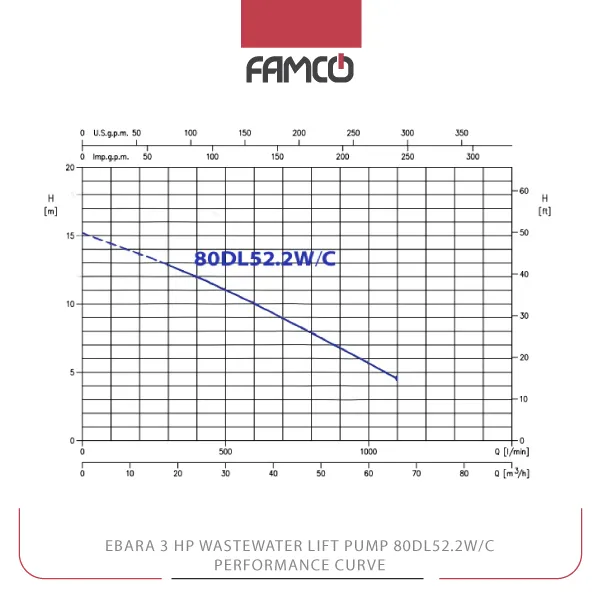

Ebara 3 HP Wastewater Lift Pump 80DL52.2W/C Performance Data
l/min | 0 | 100 | 250 | 300 | 400 | 500 | 700 | 900 | 1000 | 1100 |
m³/h | 0 | 6 | 15 | 18 | 24 | 30 | 42 | 54 | 60 | 66 |
Head (m) | 15.2 | – | – | 12.9 | 12.0 | 11.1 | 9 | 6.8 | 5.7 | 4.6 |

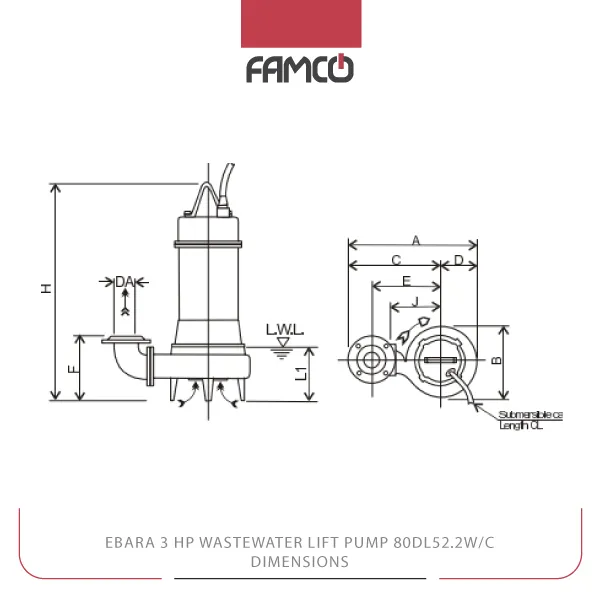

Ebara 3 HP Wastewater Lift Pump 80DL52.2W/C Dimensions
Dimensions (mm) | Weight (kg) | |||||||||
A | B | C | D | E | F | H | J | L1 | CL (m) | 67 |
542 | 308 | 388 | 154 | 295 | 220 | 654 | 220 | 165 | 10 |
Ebara 3 HP Wastewater Lift Pump 80DL52.2W/C Applications
- Municipal sewage treatment plants
- Industrial wastewater management
- Residential sewage systems
- Flood control and drainage projects
Ebara 3 HP Wastewater Lift Pump 80DL52.2W/C Benefits
- Durable cast iron construction for long-lasting use
- Handles solids up to 70 mm, suitable for various sewage types
- High protection rating (IP68) for underwater operation
- Efficient motor with 1450 rpm for reliable performance
Ebara 3 HP Wastewater Lift Pump 80DL52.2W/C Price List
No. | Name | Price |
1 | Ebara 3 HP Wastewater Lift Pump 80DL52.2W/C Price | Contact us |
