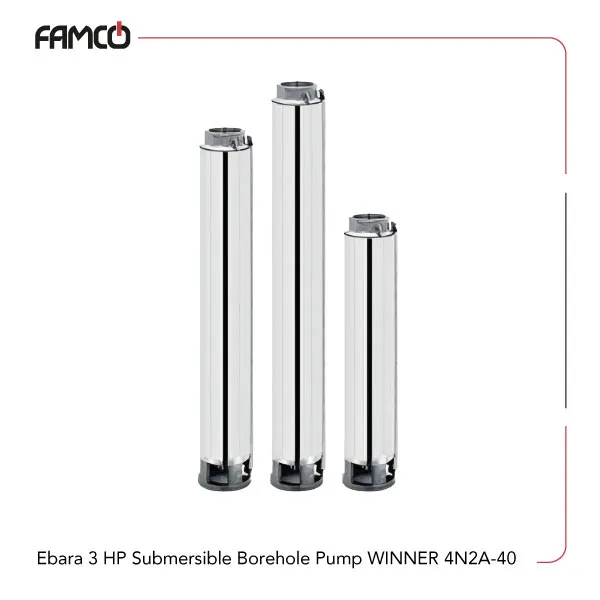

Ebara 3 HP Submersible Borehole Pump WINNER 4N2A-40 Specifications
Ebara submersible borehole pump WINNER 4N2A-40 delivers a power output of 2.2 kW (3 HP). It supports a maximum flow rate of 262 cubic meters per hour (55 liters per minute), enabling efficient high-volume liquid transfer. With a maximum head of 183 meters, the unit is capable of lifting liquids over significant vertical distances. Designed for submerged operation, the pump can function at depths of up to 100 meters and handle liquids with temperatures up to 40°C. This Ebara submersible pump can tolerate sand concentrations of up to 50 ppm, ensuring reliable performance in environments with moderate particulate content. The motor features a two-pole design with class F insulation, providing dependable thermal protection and long-term operational reliability.
| Specification | Value |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Maximum Flow rate (m3/h) | 55 |
| Maximum Flow rate (l/min) | 262 |
| Maximum head (m) | 183 |
| Maximum immersion depth (m) | 100 |
| Maximum liquid temperature (°C) | 40 |
| Maximum sand content (ppm) | 50 |
| Poles | 2 |
| Insulation class | F |
| Protection degree | IP58 |
Ebara 3 HP Submersible Borehole Pump WINNER 4N2A-40 Applications
- Water transfer in construction sites
- Drainage and sewage management
- Irrigation systems in agriculture
- Municipal water and wastewater treatment
Ebara 3 HP Submersible Borehole Pump WINNER 4N2A-40 Benefits
- High flow capacity for efficient liquid transfer
- Deep immersion capability up to 100 meters
- Durable design with high protection rating
- Operates reliably in sandy and high-temperature environments
Ebara 3 HP Submersible Borehole Pump WINNER 4N2A-40 Price List
| No. | Name | Price |
| 1 | Ebara 3 HP Submersible Borehole Pump WINNER 4N2A-40 Price | Contact us |
