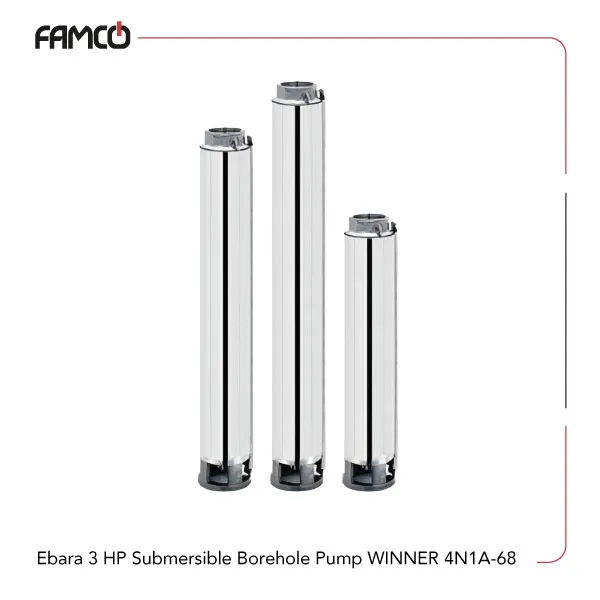

Ebara 3 HP Submersible Borehole Pump WINNER 4N1A-68

2.2 kW (3 HP)

Single- and three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Ebara Pumps, Ebara Submersible Pump

Overview of Ebara 3 HP Submersible Borehole Pump WINNER 4N1A-68

This pump is a powerful and reliable device designed for various fluid transfer tasks. With a strong 2.2 kW motor, it can handle high flow rates and deep immersion, making it perfect for industrial, agricultural, or construction use. Its high maximum head allows it to lift liquids over long distances or heights. The pump’s durable construction and high protection degree ensure it performs well even in tough environments. It is suitable for liquids up to 40°C and can handle some sand.

Description
Additional information

Ebara 3 HP Submersible Borehole Pump WINNER 4N1A-68 Specifications

Ebara submersible borehole pump WINNER 4N1A-68 delivers a power output of 2.2 kW (3 HP), making it ideal for demanding high-lift applications. It provides a maximum flow rate of 2.1 cubic meters per hour (35 liters per minute), ensuring efficient and controlled fluid transfer. With a maximum head of 360 meters, the pump is well-suited for deep-well and high-rise pumping tasks. Designed for fully submerged operation, the unit can operate at depths of up to 100 meters and handle liquids with temperatures up to 40°C. This Ebara submersible pump can tolerate sand concentrations of up to 50 ppm, allowing reliable performance in slightly contaminated fluids.

Specification	Value
Power (kW)	2.2
Power (HP)	3
Maximum Flow rate (m3/h)	2.1
Maximum Flow rate (l/min)	35
Maximum head (m)	360
Maximum immersion depth (m)	100
Maximum liquid temperature (°C)	40
Maximum sand content (ppm)	50
Poles	2
Insulation class	F
Protection degree	IP58

Ebara 3 HP Submersible Borehole Pump WINNER 4N1A-68 Applications

Industrial fluid transfer
Deep well water pumping
Irrigation systems
Construction site dewatering

Ebara 3 HP Submersible Borehole Pump WINNER 4N1A-68 Benefits

High power for demanding tasks
Deep immersion capability
Durable and weather-resistant design
Efficient flow rates for quick operation

Ebara 3 HP Submersible Borehole Pump WINNER 4N1A-68 Price List

No.	Name	Price
1	Ebara 3 HP Submersible Borehole Pump WINNER 4N1A-68 Price	Contact us

Brand	Ebara
Power (HP)	3
Power (kW)	2.2
Maximum Flow Rate (L/min)	35
Maximum Flow Rate (m3/h)	2.1
Maximum Delivery Head (m)	360
Insulation Class	F
Degree of Protection	IP58
Maximum Liquid Temperature (°C)	40
Maximum immersion depth (m)	100
